Liftgate Side Trim Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate upper trim.
  2. Remove the fastener.
  3. Pull the liftgate side trim forward to disengage clips A and pin B from the body.
  4. Pull the liftgate side trim upward, then disengage hook C from the liftgate lower trim, and remove the liftgate side trim.
  5. Install in the reverse order of removal.

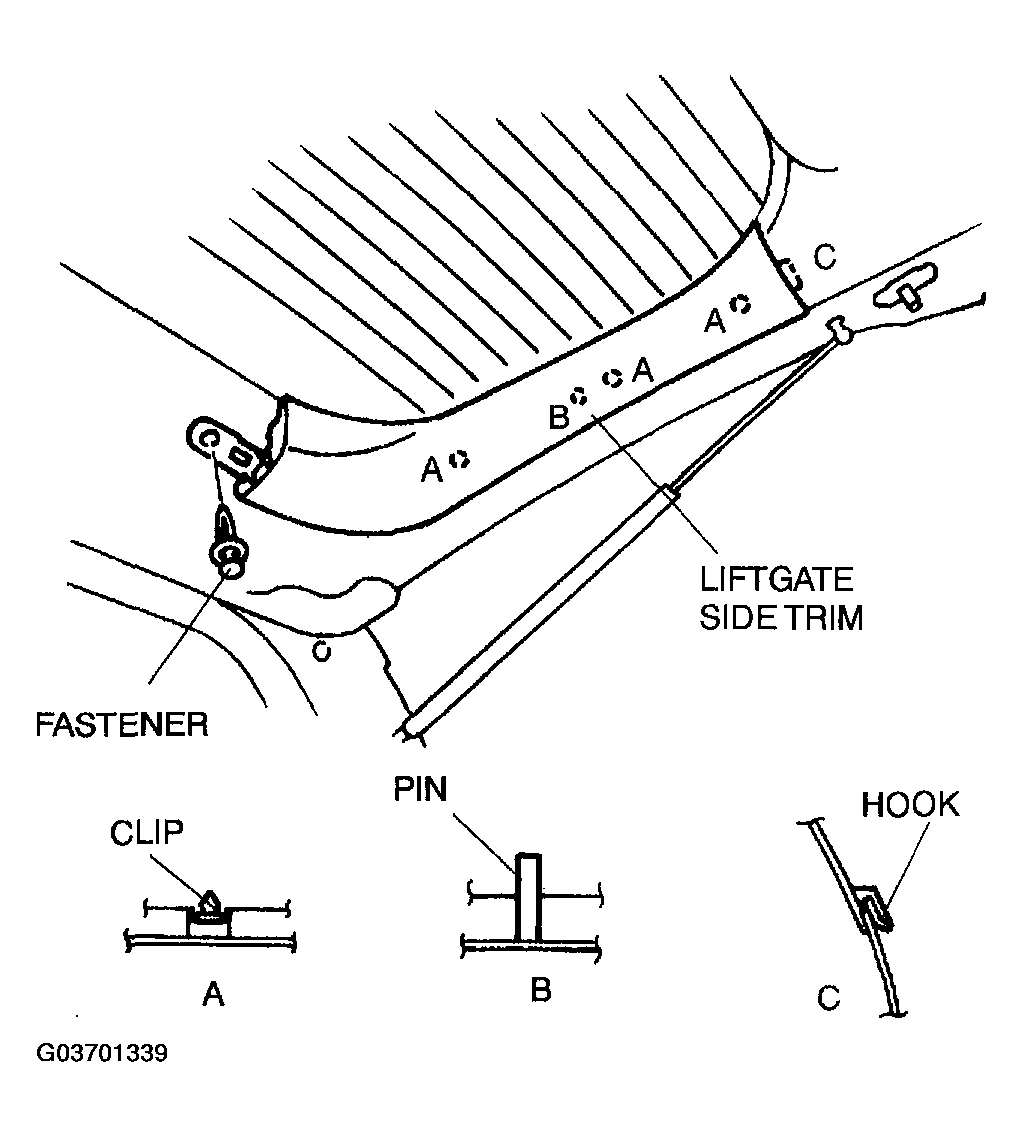

    Fig 1: Removing Liftgate Side Trim
    G03701339Courtesy of MAZDA MOTORS CORP.
