Wheel Hub Bolt Replacement

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hub bolt using the SSTs .
NOTE:
- If the dust cover interferes with the wheel hub bolt and the wheel hub bolt cannot be removed. Tap the part shown in Fig 1 with a chisel lightly and bend the processing point back to the steering knuckle side.

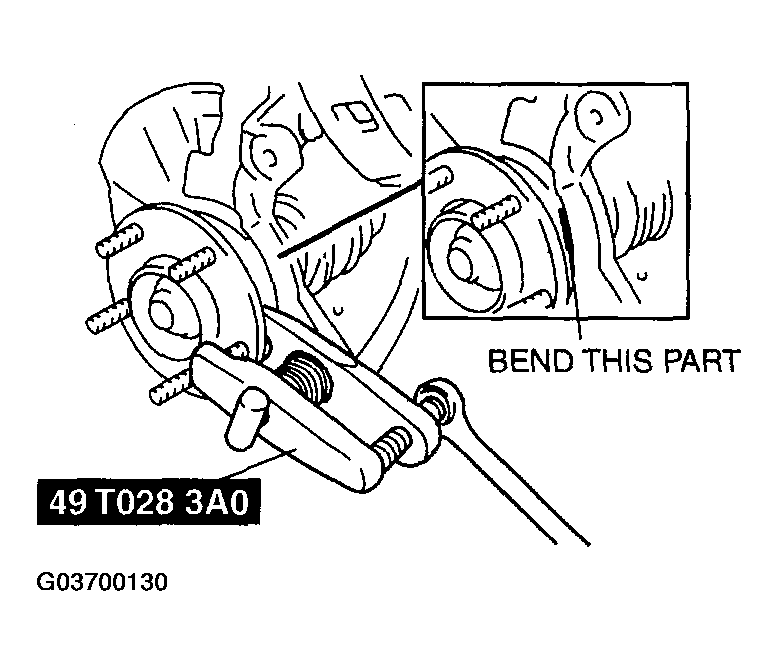

Fig 1: Removing Hub Bolt Using SST
Courtesy of MAZDA MOTORS CORP.
Install the hub bolt into the wheel hub and install a washer and hub nut on the hub bolt.
Tighten the hub nut while holding the wheel hub using a brass bar.

Fig 2: Tightening Hub Nut While Holding Wheel Hub Using Brass Bar
Courtesy of MAZDA MOTORS CORP.
