Section 416 (Entertainment System)
>>
Condenser Removal/Installation [Sedan]
Condenser Removal/Installation [Sedan]
WARNING:
This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Disconnect the negative battery cable.
Remove the rear package trim.
Remove in the order indicated in the table.

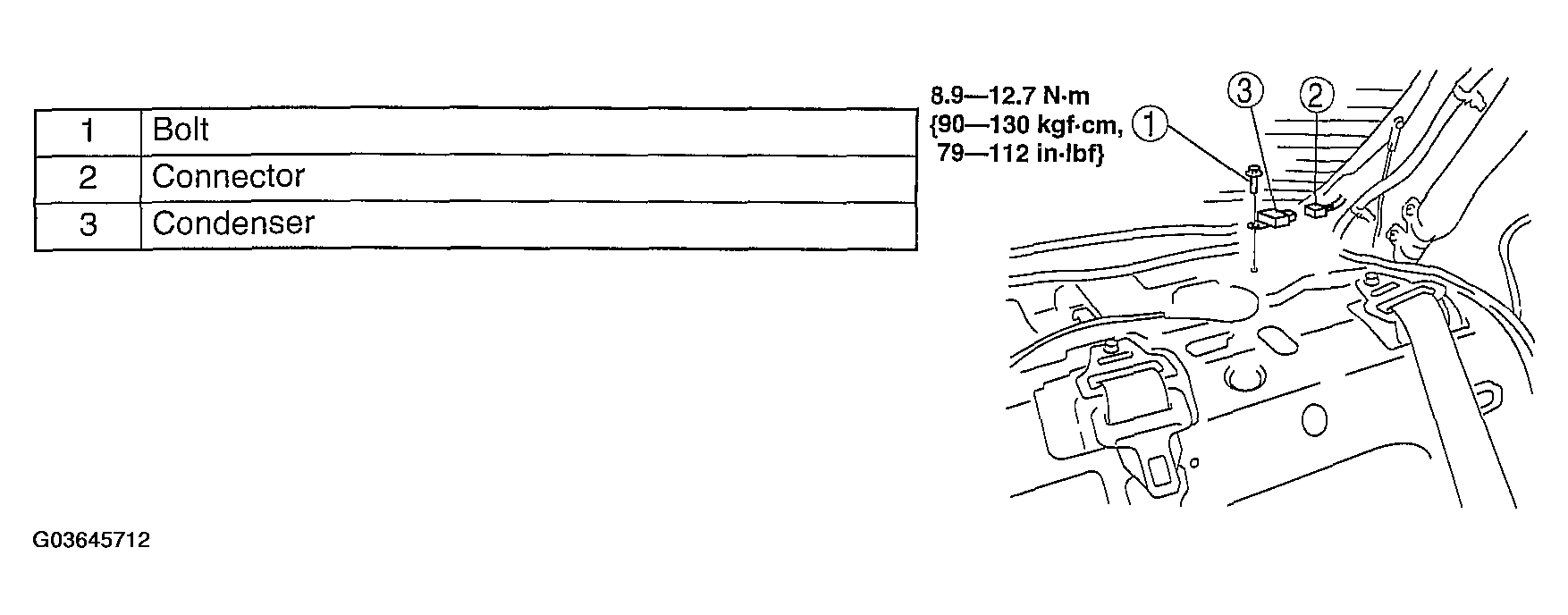

Fig 1: Condenser Removal Sequence [Sedan] (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
