Front Side Trim Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front scuff plate.
- Partially peel back the seaming welt.

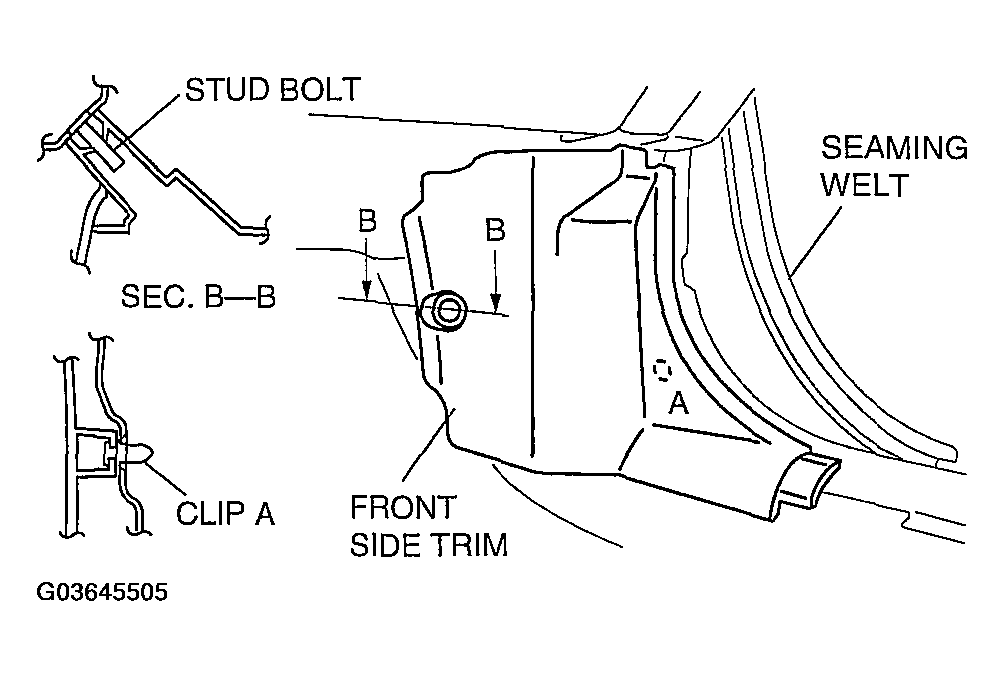

- Pull the front side trim outward, disengage clip A and the stud bolt, then remove the front side trim.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
