Locknut Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

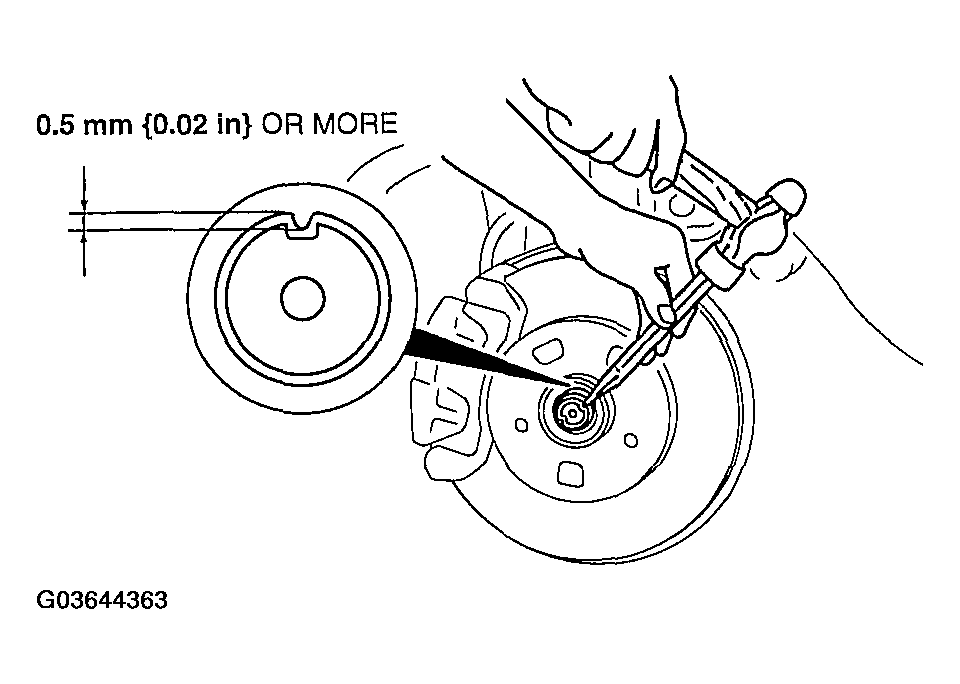

  1. Install a new locknut and stake it as shown.
    Fig 1: Installing Locknut And Stake
    G03644363Courtesy of MAZDA MOTORS CORP.
