Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cables. For additional information, refer to BATTERY DISCONNECT .

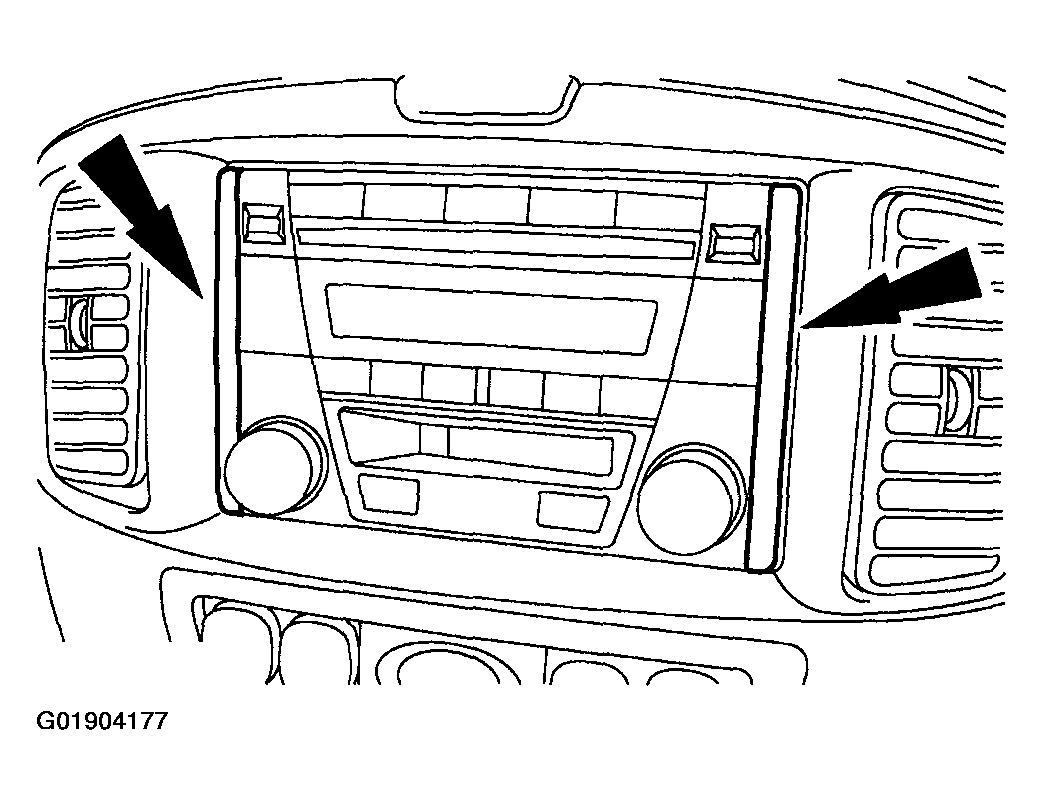

Fig 1: Removing Bezel End Covers
Courtesy of MAZDA MOTORS CORP.
Remove the bezel end covers from both sides of the radio face.
NOTE:
- All audio unit removal and installation procedures are similar.
NOTE:
- d covers before inserting the special

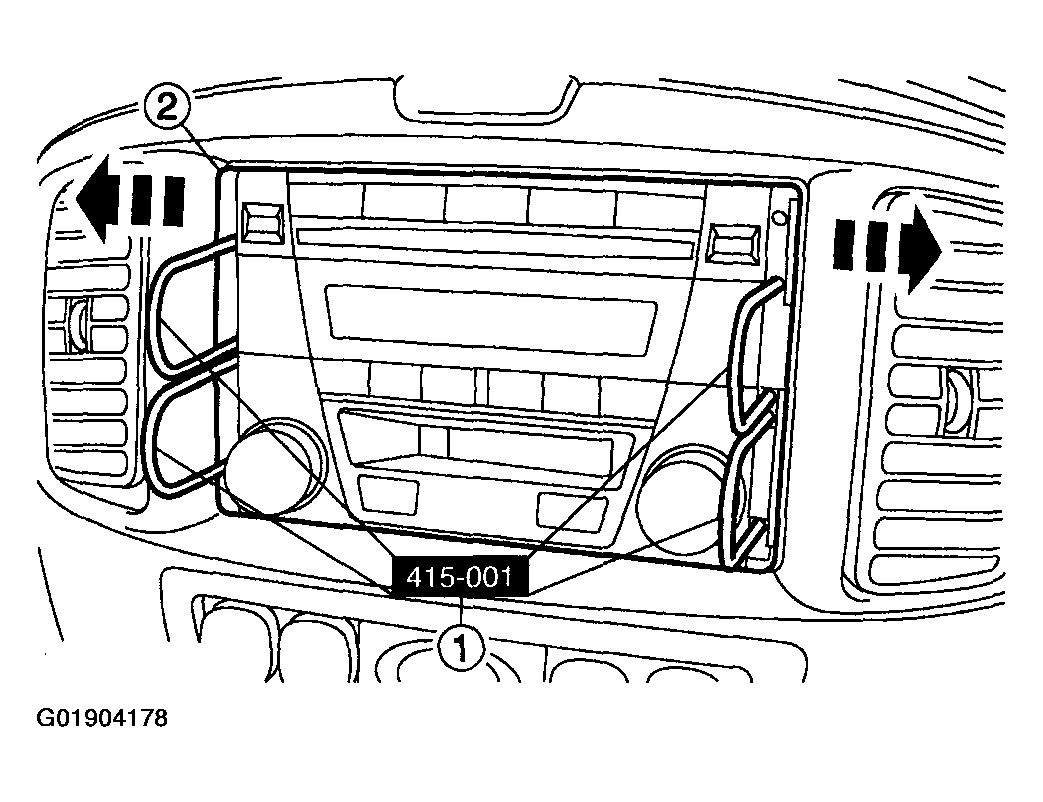

Fig 2: Removing Audio Unit
Courtesy of MAZDA MOTORS CORP.
Remove the audio unit.
1. Insert the special tool into the radio face plate and release the radio retaining clips.
2. Pull outward on the special tool and remove the audio unit from the instrument panel.
Disconnect the connectors.
To install, reverse the removal procedure.
