Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to BATTERY DISCONNECT .

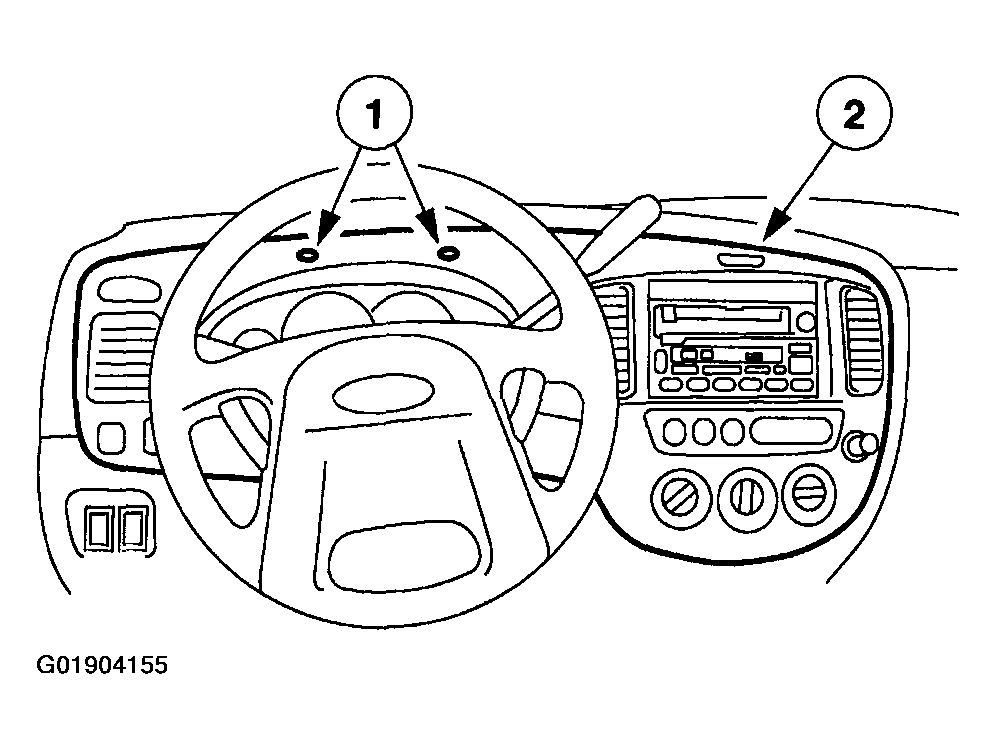

Fig 1: Positioning Instrument Panel Center Finish Panel Rearward
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If equipped with an automatic transaxle, apply the parking brake and position the transaxle range selector lever to the 1 position.
Position the instrument panel center finish panel rearward.
1. Remove the screws.
2. Position the instrument cluster finish panel rearward.

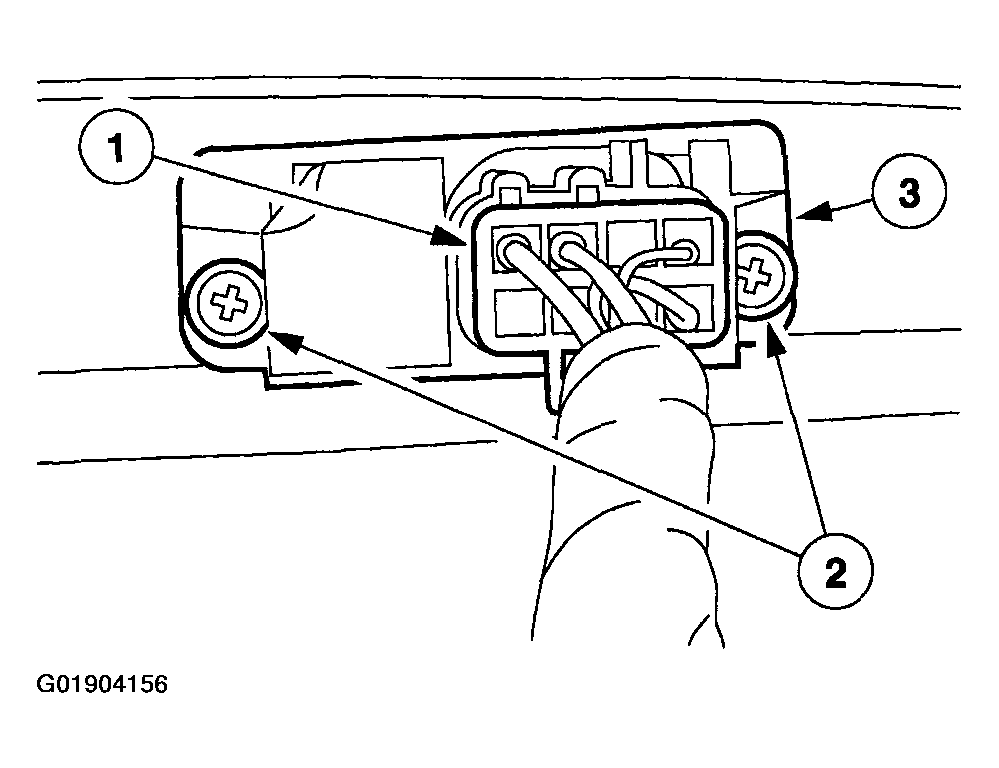

  Fig 2: Removing Hazard Flasher Switch
  Courtesy of MAZDA MOTORS CORP.
Remove the hazard flasher switch.
1. Disconnect electrical connector.
2. Remove the screws.
3. Remove the hazard flasher switch.
To install, reverse the removal procedure.
