Toe Control Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the illustration. See Fig 1.
  2. Install in the reverse order of removal.
  3. Inspect the rear wheel alignment. See REAR WHEEL ALIGNMENT .

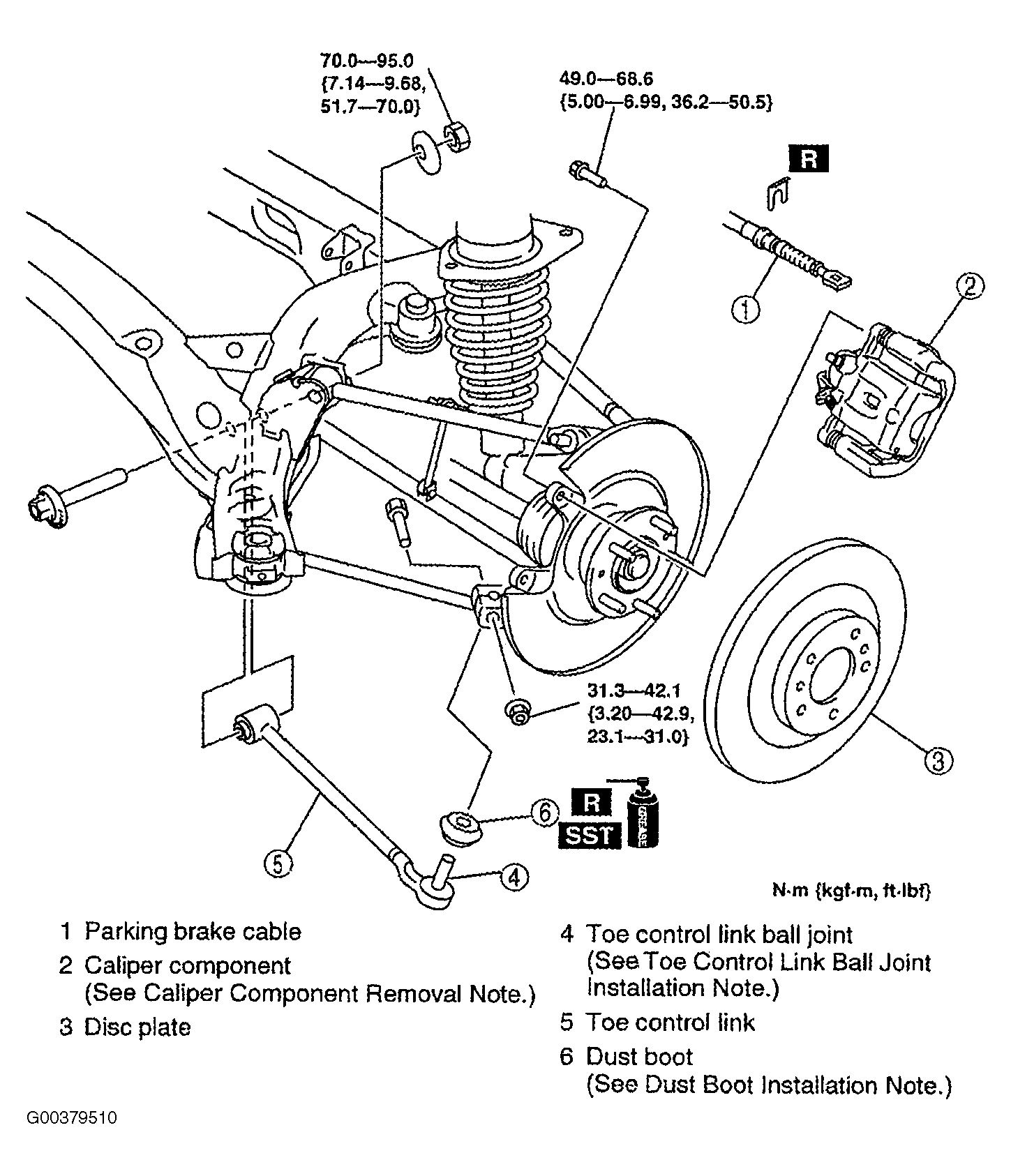

Fig 1: Removing/Installing Toe Control Link
G00379510Courtesy of MAZDA MOTORS CORP.
