Lower Arm: Removal

WARNING: This page is about a different car, the 2004 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire.
Lower the vehicle on the hoist.

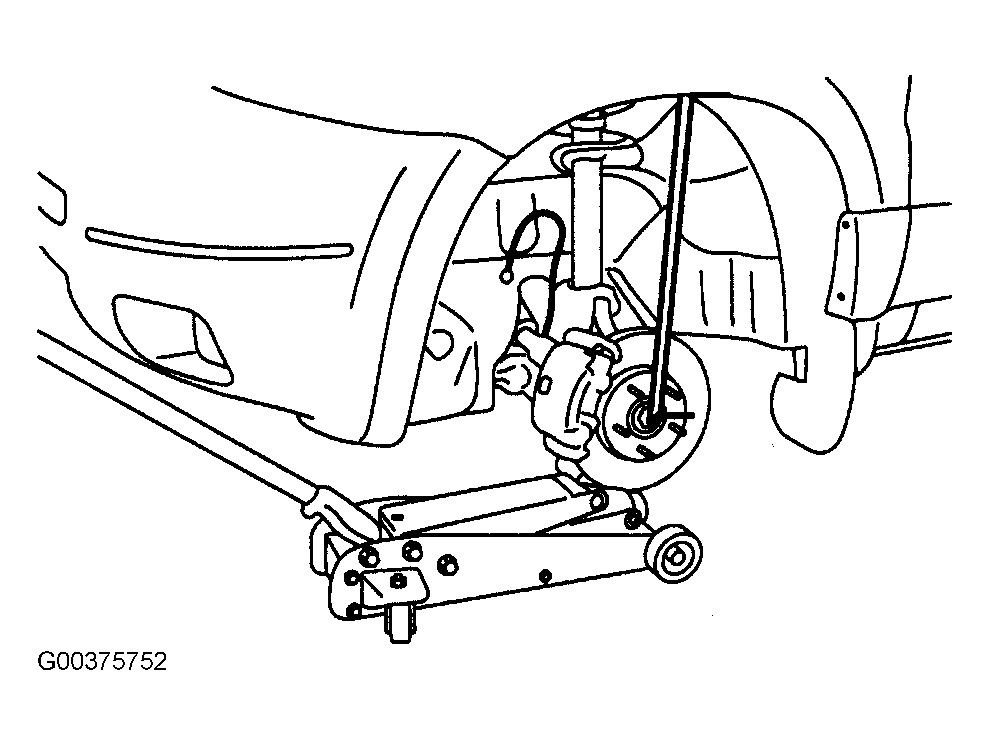

Fig 1: Positioning Floor Jack
Courtesy of MAZDA MOTORS CORP.
Position a floor jack under the ball joint and raise the control arm until the vehicle starts to rise off the hoist.

Fig 2: Measuring Ride Height
Courtesy of MAZDA MOTORS CORP.
Record the ride height.
Remove the floor jack.
Raise the vehicle on the hoist.
Separate the lower ball joint from the wheel knuckle.
1. Remove the pinch bolt.

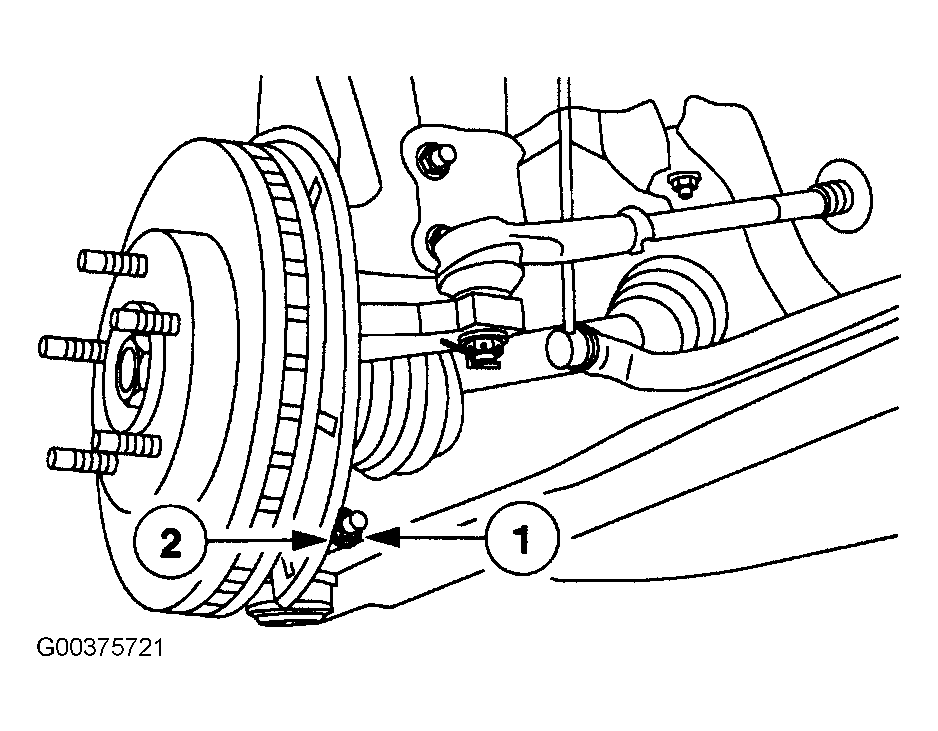

  Fig 3: Separating Lower Ball Joint
  Courtesy of MAZDA MOTORS CORP.
2. Separate the lower ball joint from the wheel knuckle.
Support the subframe.

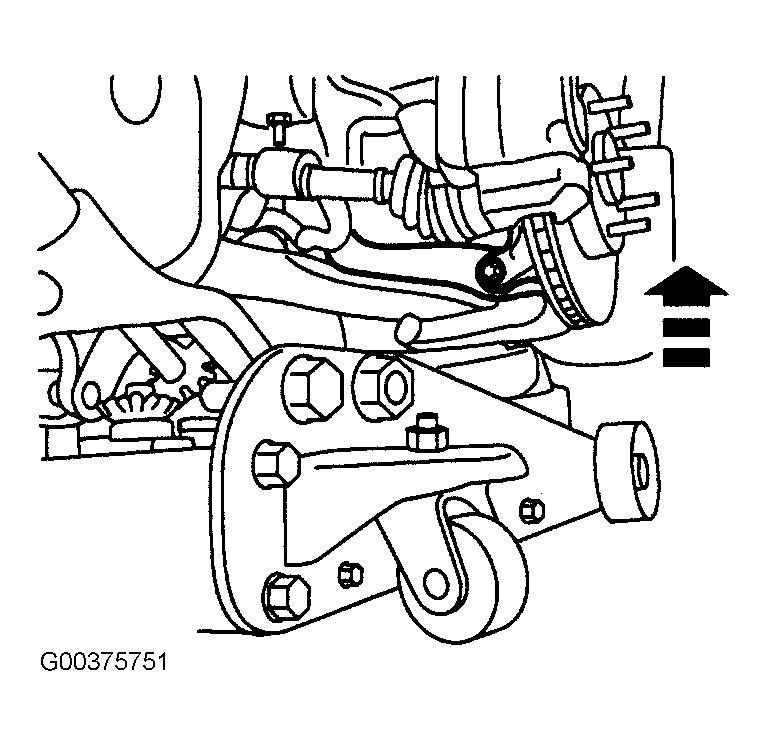

Fig 4: Supporting The Subframe
Courtesy of MAZDA MOTORS CORP.
Remove the lower arm.
- Remove the lower arm bolts (1).
- Remove the lower arm (2).

Fig 5: Removing Lower Arm

Courtesy of MAZDA MOTORS CORP.
