Engine Lubrication System: Notes

System is pressure fed from a rotor-type oil pump. Oil flows through oil filter before entering main oil galley. See Fig 1.

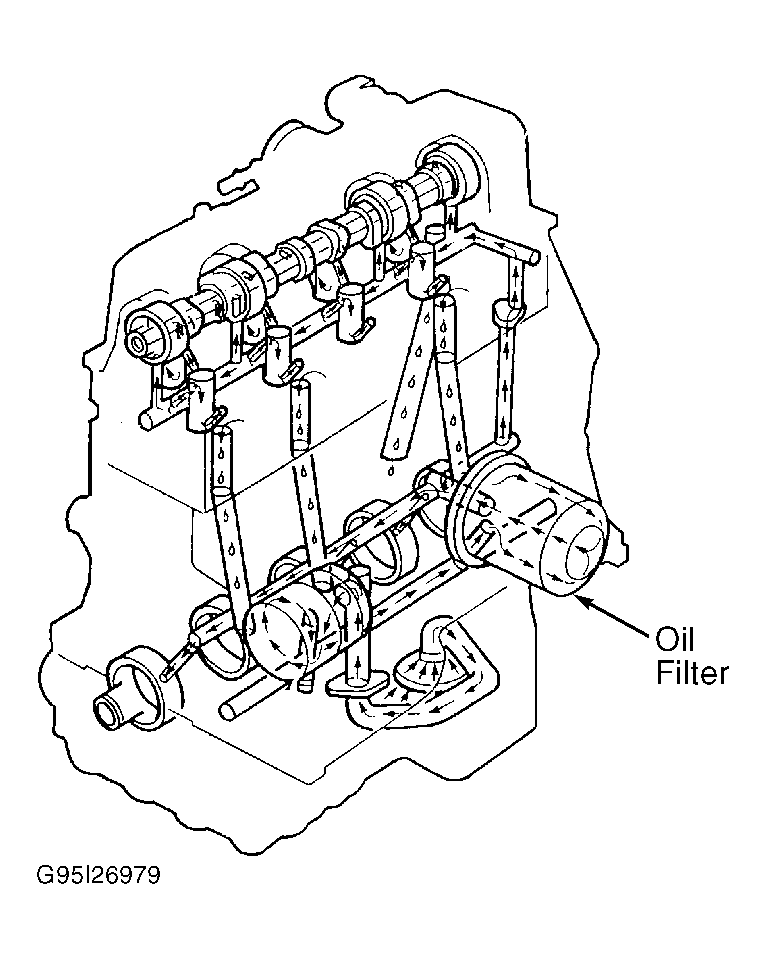

Fig 1: Cross-Sectional View Of Engine Oiling System
G95I26979Courtesy of FORD MOTOR CO.
