Piston & Rod Assembly

Install piston on connecting rod in correct direction. See Fig 1. Install piston and connecting rod in engine, with notch or arrow on top of piston pointing toward front of engine.

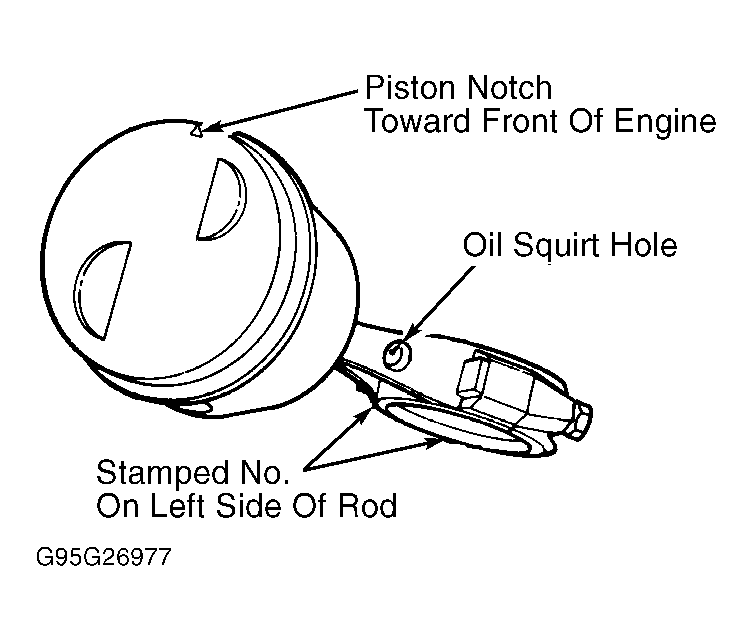

Fig 1: Positioning Piston On Connecting Rod
G95G26977Courtesy of FORD MOTOR CO.
