MULTIFUNCTION Switch

NOTE: For complete testing of the multifunction switch, see STEERING COLUMN SWITCHES - PICKUP article.

Wiper switch is incorporated into multifunction switch on steering column. Disconnect multifunction switch 7-pin harness connector (X-254). Measure resistance between specified switch terminals (component side) with wiper switch in specified position. See Fig 1 . See WIPER SWITCH TEST  table. If resistance is not as specified, replace multifunction switch.

WIPER SWITCH TEST

Switch Position Terminals No. (1) Resistance (Ohms)
Wiper Switch
OFF 685 & 993 47,000
OFF 590 & 685 150,000
OFF 590 & 993 100,000
LOW 685 & 993 4000
LOW 590 & 685 7200
LOW 590 & 993 3200
HIGH 685 & 993 (2)
HIGH 590 & 685 3200
HIGH 590 & 993 3200
INT 685 & 993 11,000
INT 590 & 685 (3) 11,000-14,000
INT 590 & 993 (3) 3200-10,000
Washer Switch
OFF 590 & 993 (4)
ON 590 & 993 (2)
(1) Approximate values.
(2) Resistance should be 5 ohms or less.
(3) Rotating INT (interval) knob from minimum to maximum will change resistance value.
(4) Resistance should be greater than 10 k/ohms.

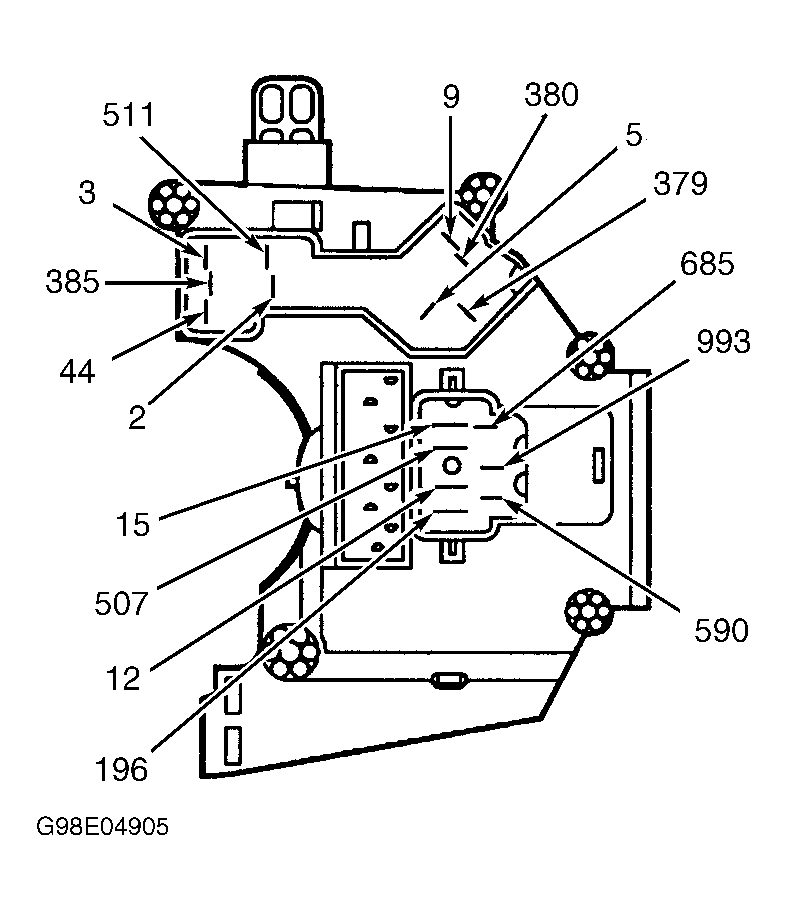

Fig 1: Identifying Multifunction Switch Terminals
G98E04905Courtesy of MAZDA MOTORS CORP.
