Transmission Range Switch

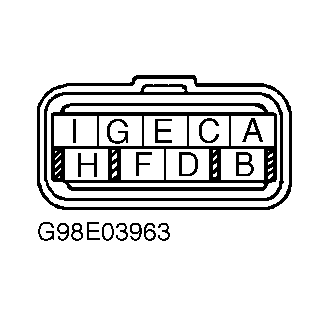

Disconnect Transmission Range (TR) switch harness connector. Check continuity between appropriate TR switch terminals with gear selector in appropriate position. See TR SWITCH RESISTANCE table. See Fig 1 . If continuity is not as specified, replace TR switch.
TR SWITCH RESISTANCE
| Application & Gear Selector Position | Continuity Between Terminals | |
|---|---|---|
| GF4A-EL Transaxle | ||
| P (Park) | A & E; F & I | |
| R (Reverse) | A & D | |
| N (Neutral) | A & H; F & I | |
| D (Drive) | A & B | |
| S (Second) | A & G | |
| L (Low) | A & C | |
| LJ4A-EL Transaxle | ||
| P (Park) | B & H; E & I | |
| R (Reverse) | G & I | |
| N (Neutral) | B & H; D & I | |
| D (Drive) | C & I | |
| S (Second) | F & I | |
| L (Low) | A & I | |
