Road Test Specifications

NOTE: For shift speed tables, see Fig 1 and Fig 2 .

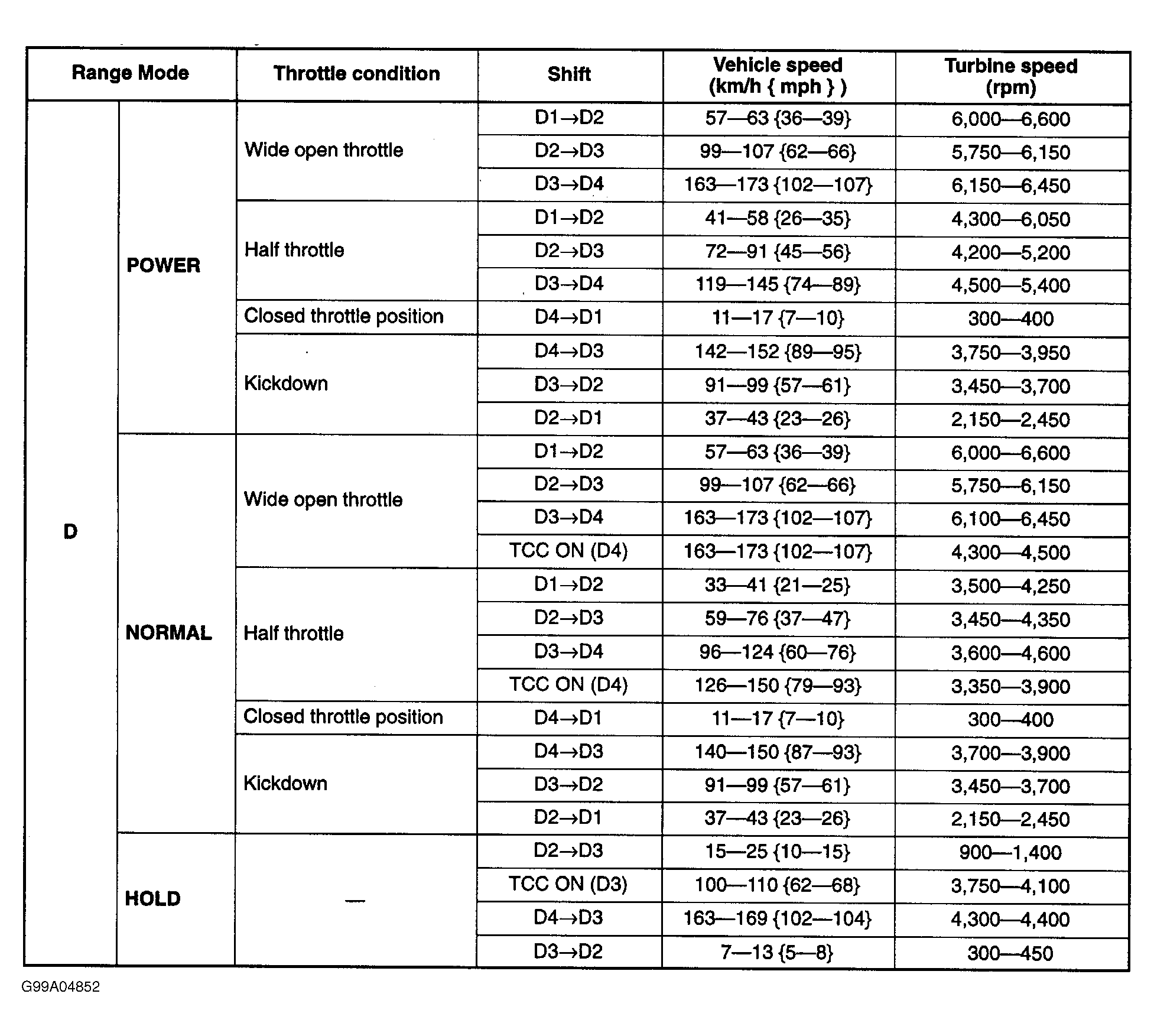

Fig 1: Shift Speed Table (Millenia)
G99A04852Courtesy of MAZDA MOTORS CORP.

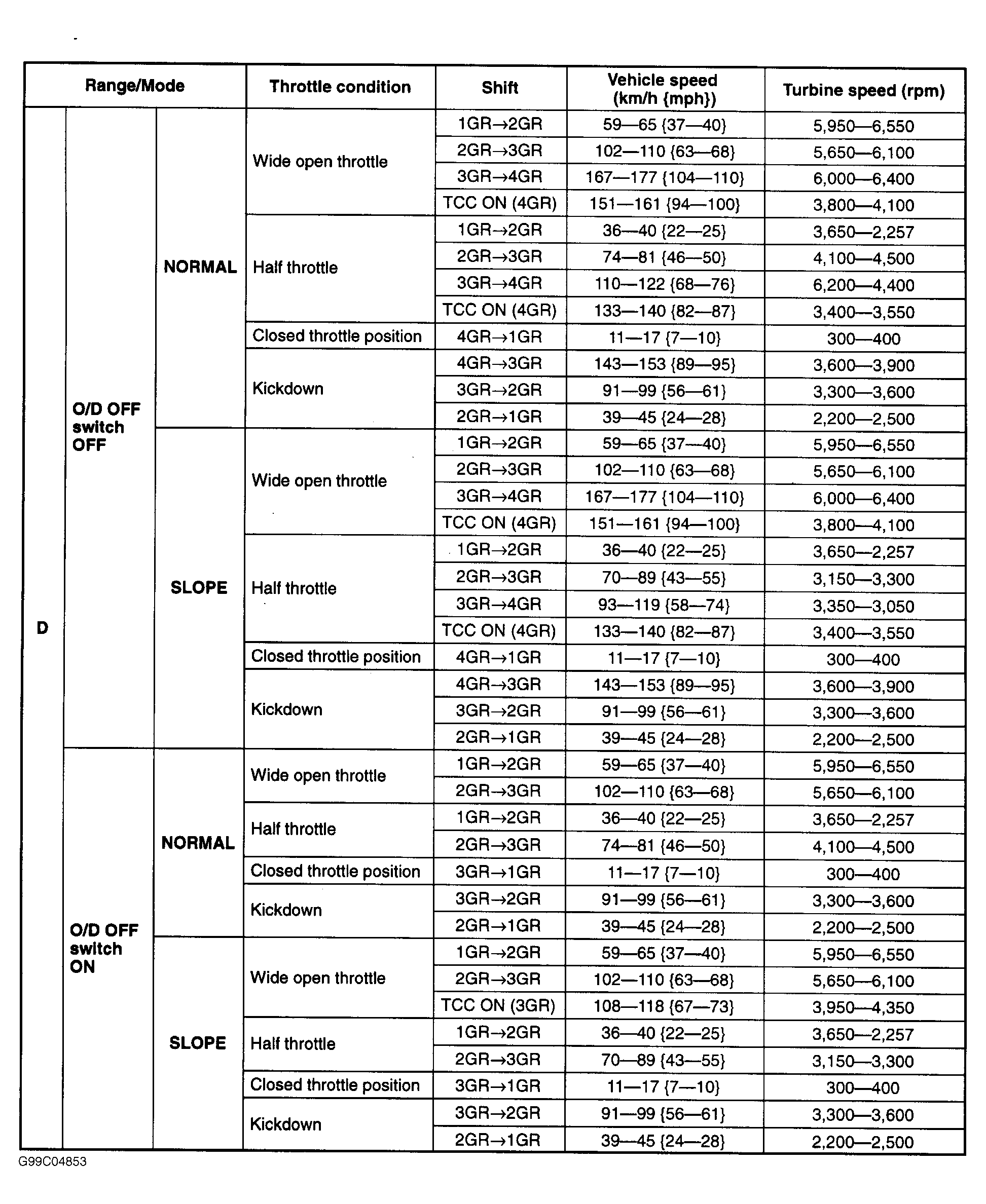

Fig 2: Shift Speed Table (626)
G99C04853Courtesy of MAZDA MOTORS CORP.
