BASE PCM CALIBRATION INFORMATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): CAT. 01, NO. 005R/99, Date of Issue:
July 16, 1999
BASE PCM CALIBRATION INFORMATION
Model(s): 1999 Mazda B-Series
Category: 01 - Engine
Bulletin No.: 005R/99
Date: July 16, 1999
BULLETIN REVISION NOTE
- The PCM CALIBRATION INFORMATION of this bulletin has been revised.
DESCRIPTION
The PCM (Powertrain Control module) calibration information was not readily provided on some vehicles. Use the procedure below to determine the base PCM calibration number.
PROCEDURE TO DETERMINE THE BASE PCM CALIBRATION INFORMATION
Using the information below, determine the calibration number and reference it to the See Fig 3 .

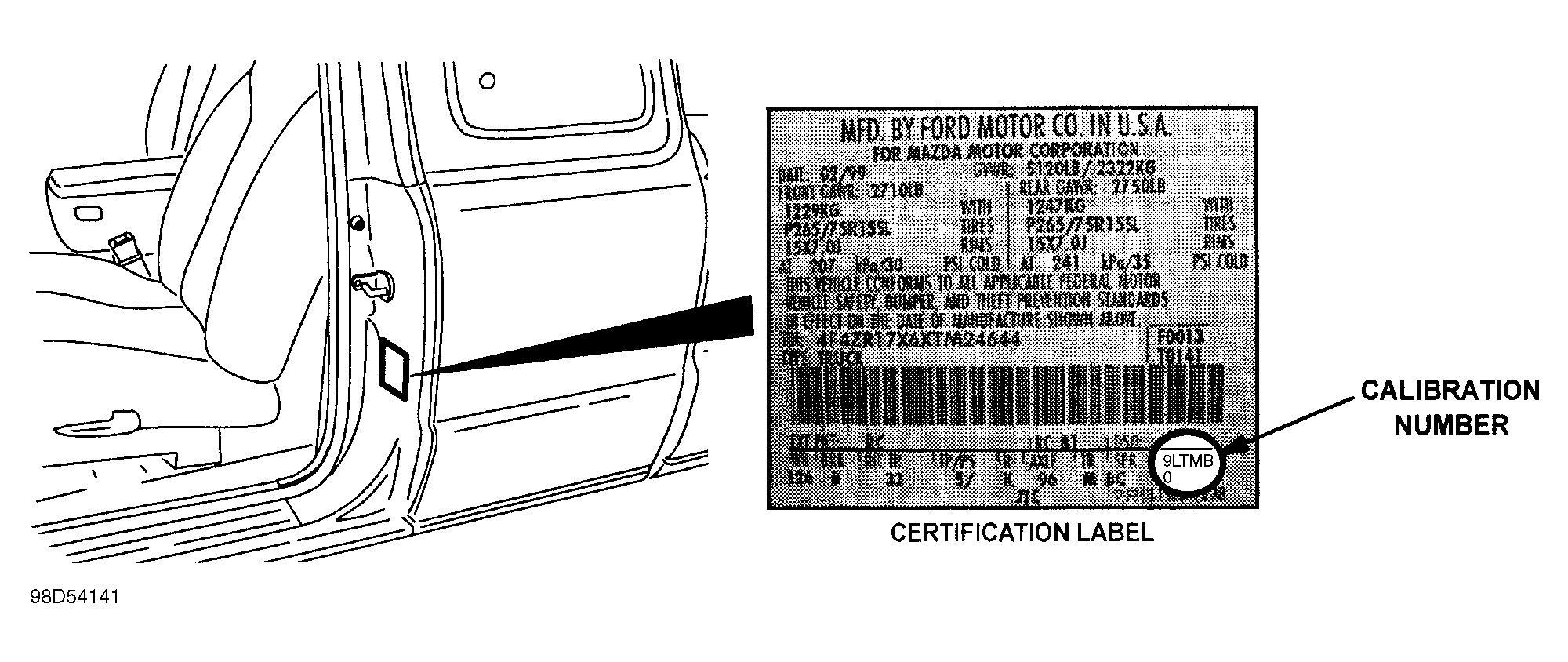

- On vehicles built after 1/18/99, check the certification label on the door jam as shown below The calibration number is printed on the bottom right comer of the certification label. The calibration will be a 6 digit number located in the section directly to the right of the letters "SPR". See Fig 1 .

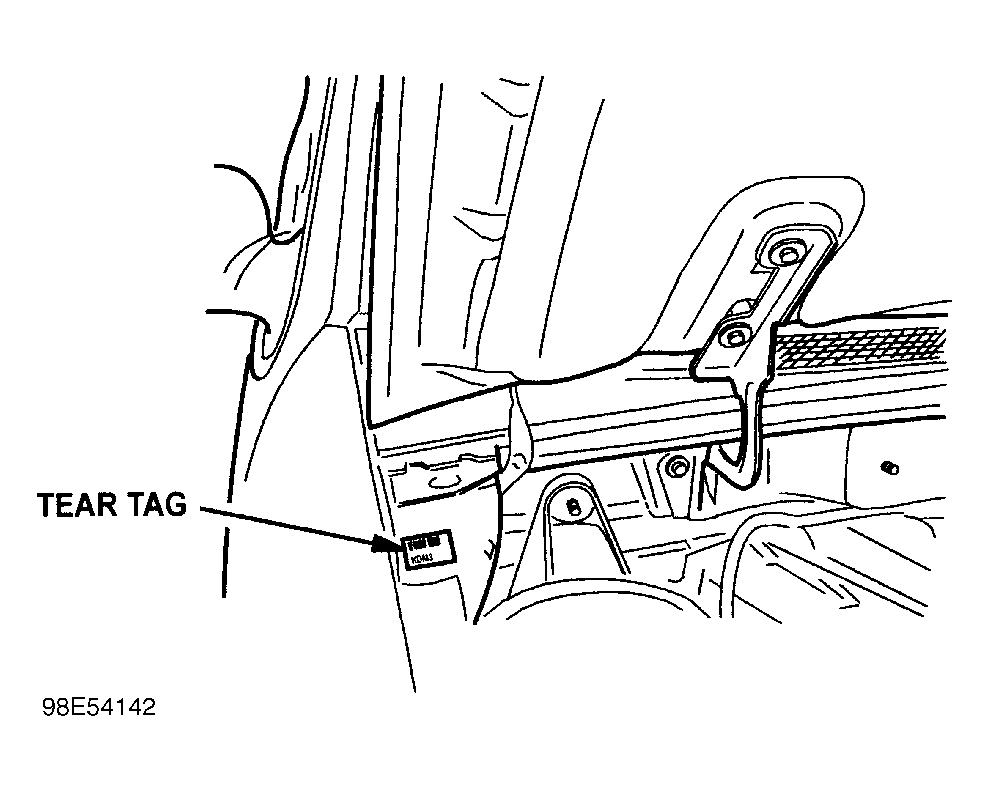

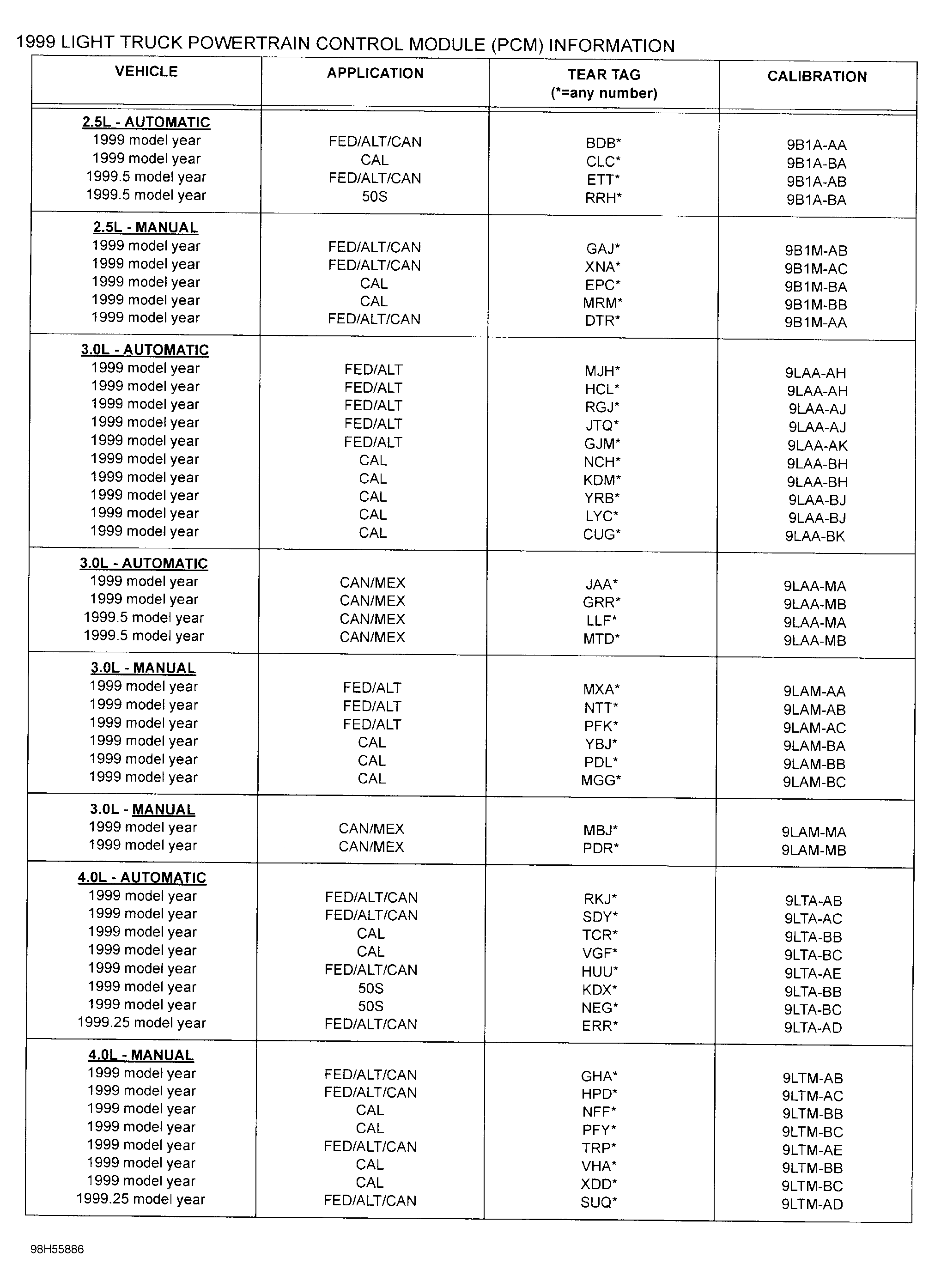

- On vehicles built through 1/31/99, find the Powertrain Control Module (PCM) "tear" tag located on the passenger side of engine compartment wall See Fig 2 . Cross-reference the tear tag code to find the base calibration using the PCM Information chart See Fig 3 .
PARTS INFORMATION
PARTS INFORMATION
| Part Number | Description | Qty. |
|---|---|---|
| ZN0 19 827 | Torque Converter Clutch (TCC) Solenoid | 1 |
WARRANTY INFORMATION
NOTE:
This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.
WARRANTY INFORMATION
| Description | Information |
|---|---|
| Warranty Type | A |
| Symptom Code | 6X |
| Damage Code | 9W |
| Part Number Main Cause | ZZN0 19 827 |
| Quantity | 1 |
| Operation Number / Labor Hours | K0313XRX / 1.0 TCC Solenoid Replacement K0002XDX /1.3 max. Diagnosis |
