Power Mirror Switch Test: 626

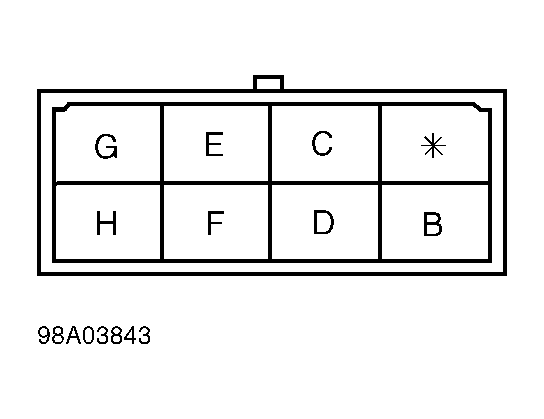

Disconnect power mirror switch harness connector (remove power mirror switch if necessary). See POWER MIRROR SWITCH under REMOVAL & INSTALLATION . With power mirror switch in specified position, check continuity between specified switch terminals. See POWER MIRROR SWITCH TEST (626) table. See Fig 1 . If continuity is not as specified, replace power mirror switch.
POWER MIRROR SWITCH TEST
| Switch Position | Continuity Between Terminals | |
|---|---|---|
| Left Mirror | ||
| Up | C & H; E & F | |
| Down | C & F; E & H | |
| Left | B & E; C & F | |
| Right | B & C; E & F | |
| Right Mirror | ||
| Up | C & G; E & F | |
| Down | C & F; E & G | |
| Left | C & F; D & E | |
| Right | C & D; E & F | |
