Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

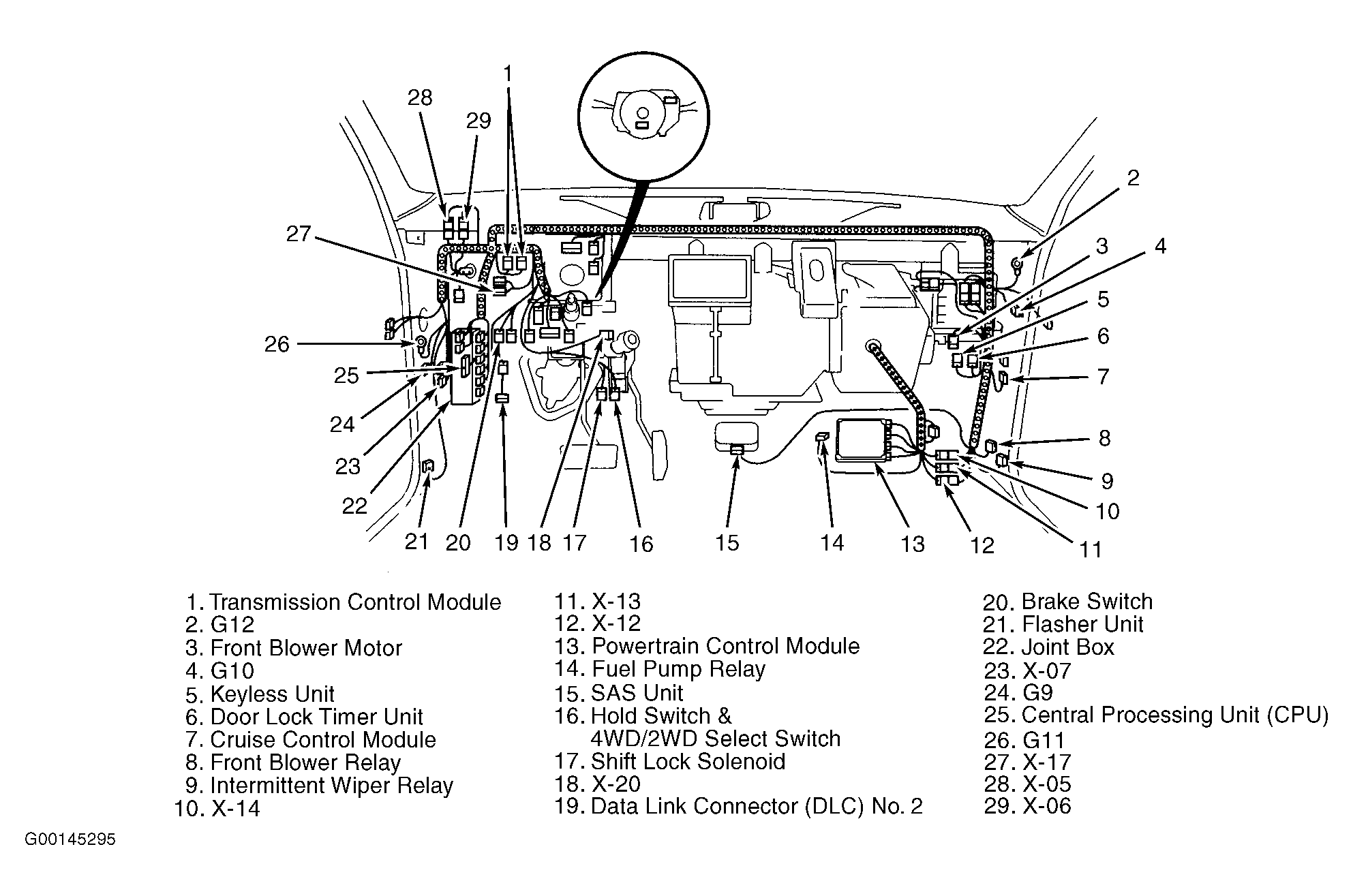

Joint Box Behind left side of dash. See Figure .

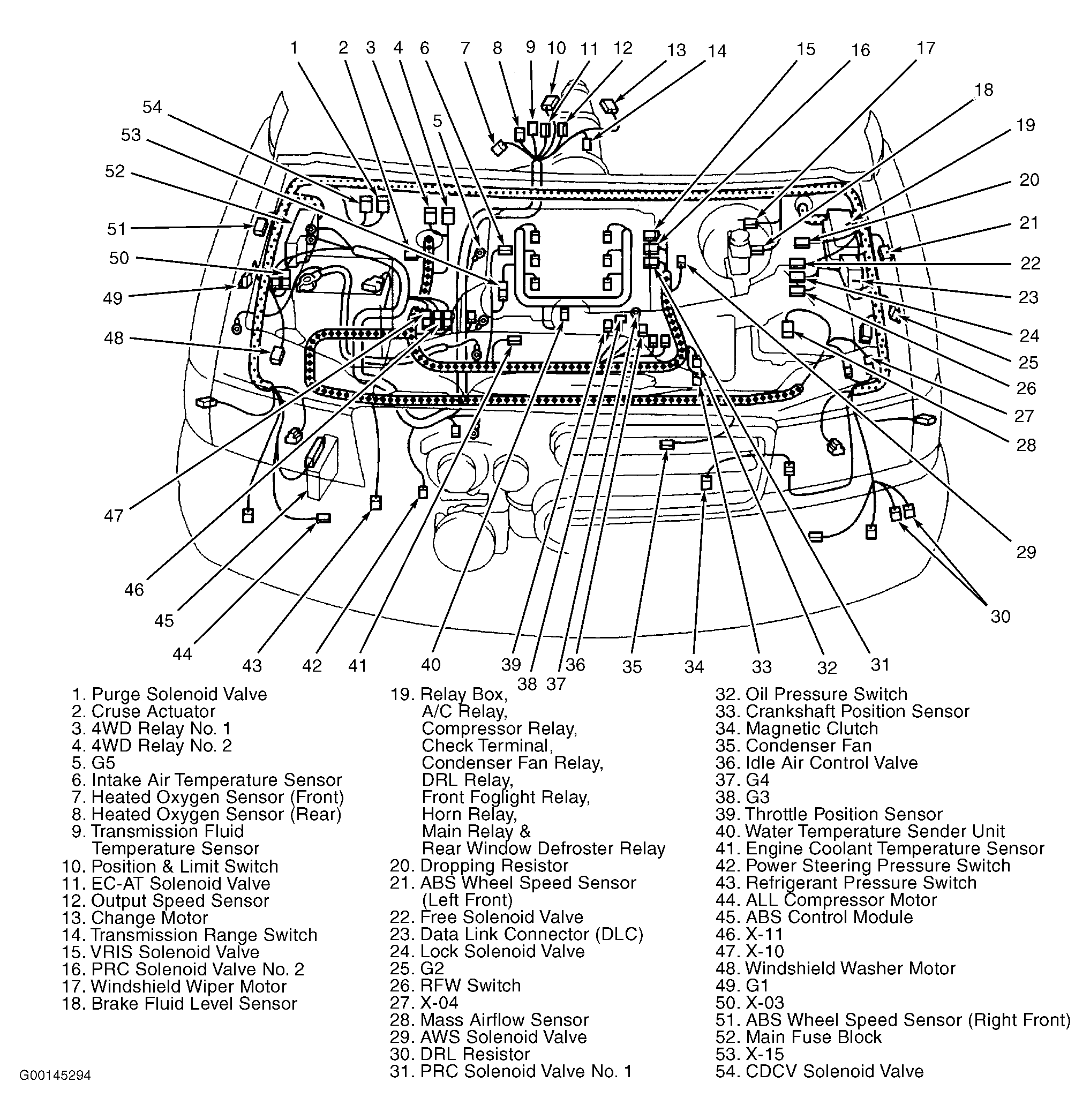

Main Fuse Block On rear of right front inner fender panel. See Figure .
Relay Box On rear of left front inner fender panel. See Figure .
