Headlight Cleaner Relay Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the connector.
Remove the nuts, then remove the headlight cleaner relay.
Install in the reverse order of removal.

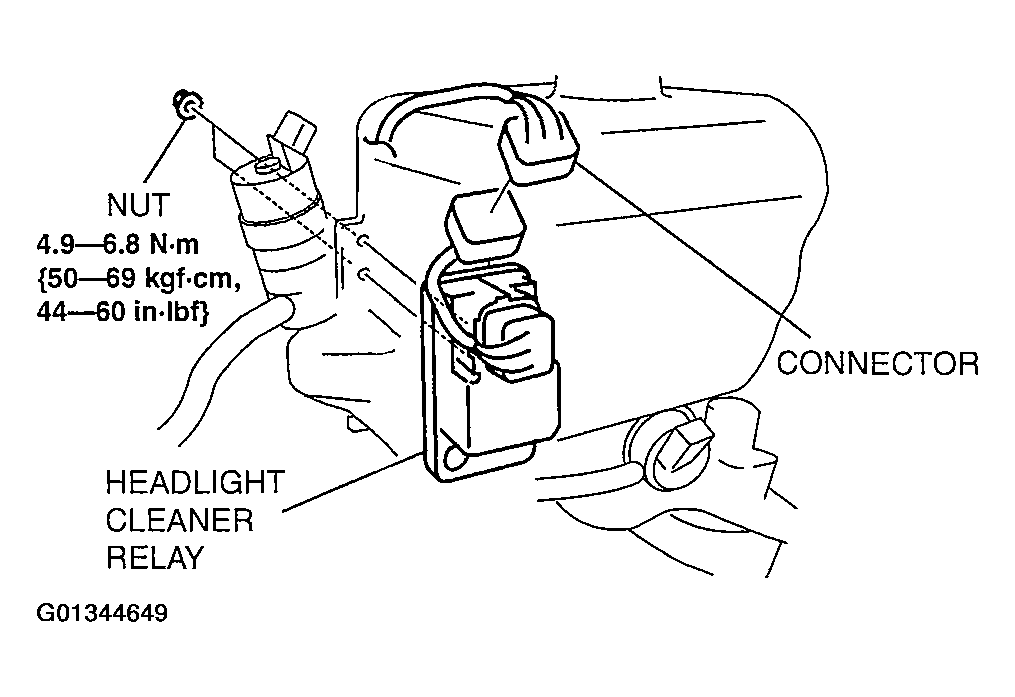

Fig 1: Removing/Installing Headlight Cleaner Relay
Courtesy of MAZDA MOTORS CORP.
