Inspecting Deployment Tool

WARNING: This page is about a different car, the 1997 Mazda MX-6 and 1997 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Deployment tool should always be inspected for proper operation before deploying air bag.
  1. Connect Red deployment tool clip to battery positive terminal. Connect Black deployment tool clip to battery negative terminal. Observe deployment tool lights. Green light should be on with Red light off.

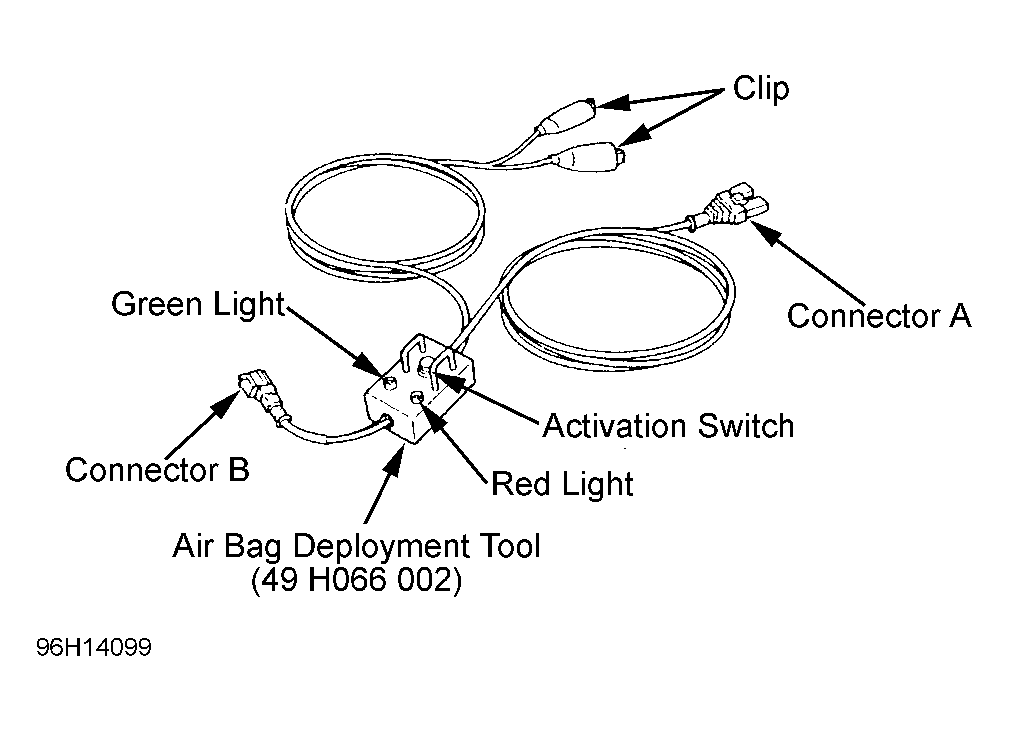

  2. Connect deployment tool connector "A" to connector "B". See Figure . Green light should be off with Red light on. Press deployment tool activation switch. Green light should be on with Red light off.
  3. If deployment tool lights function as described, it is safe to use deployment tool to activate air bag. If deployment tool lights do not function as described, DO NOT  use deployment tool. Replace deployment tool with another unit and repeat procedure.
