Installation (2.5L)

Tighten upper intake manifold bolts evenly in 2 passes in sequence. See Fig 1. Tighten to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

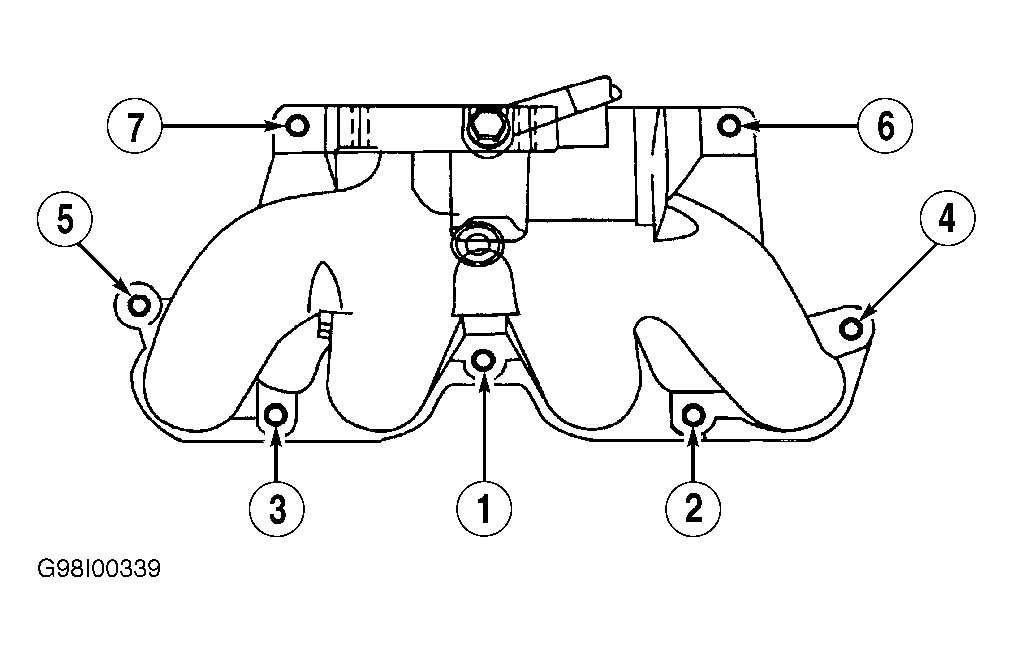

Fig 1: Upper Intake Manifold Tightening Sequence (2.5L)

Courtesy of FORD MOTOR CO.
