Headliner Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Partially peel back the seaming welt.
  3. Remove the following parts:
    1. Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION .)
    2. Sunroof seaming welt (vehicles with sunroof)
    3. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    4. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    5. Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    7. Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
    8. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    9. Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION .)
    10. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    11. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  4. Disconnect the roof wiring harness connector and remove the roof wiring harness connector clip from the body.
  5. Remove the fasteners.

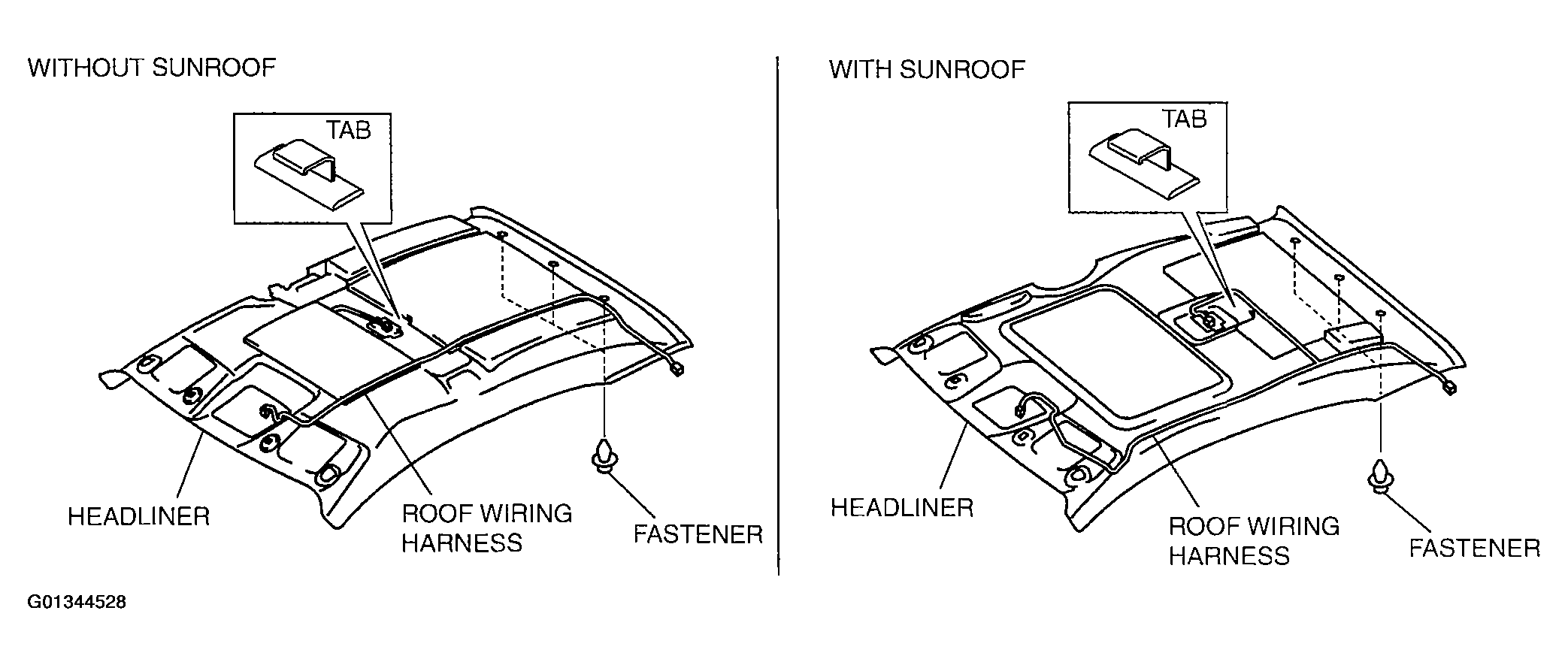

    Fig 1: Removing/Installing Headliner
    G01344528Courtesy of MAZDA MOTORS CORP.
  6. Detach the tab from the roof panel and remove the headliner.
  7. Take the headliner out from the opened passenger-side door.
  8. Install in the reverse order of removal.
