A/C Relay
WARNING: This page is about a different car, the 1996 Mazda MX-6, 1996 Mazda 626, 1995 Mazda MX-6, and 1995 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

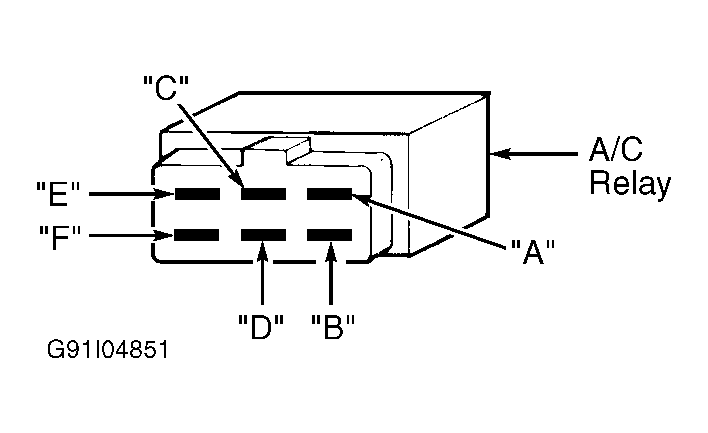

Remove relay. Using ohmmeter, check continuity between indicated terminals. See A/C RELAY TEST table. Replace relay if continuity is not as specified.
A/C RELAY TEST
| Terminal (1) | Continuity | |||||
|---|---|---|---|---|---|---|
| No Voltage Applied | ||||||
| "C" & "E" | (2) Yes | |||||
| "D" & "A" | (2) Yes | |||||
| "B" & "A" | (2) Yes | |||||
| "C" & "F" | Yes | |||||
| Battery Voltage Applied To "D" & "A" | ||||||
| "C" & "E" | Yes | |||||
|
||||||
