Fuse Panel Identification: Notes

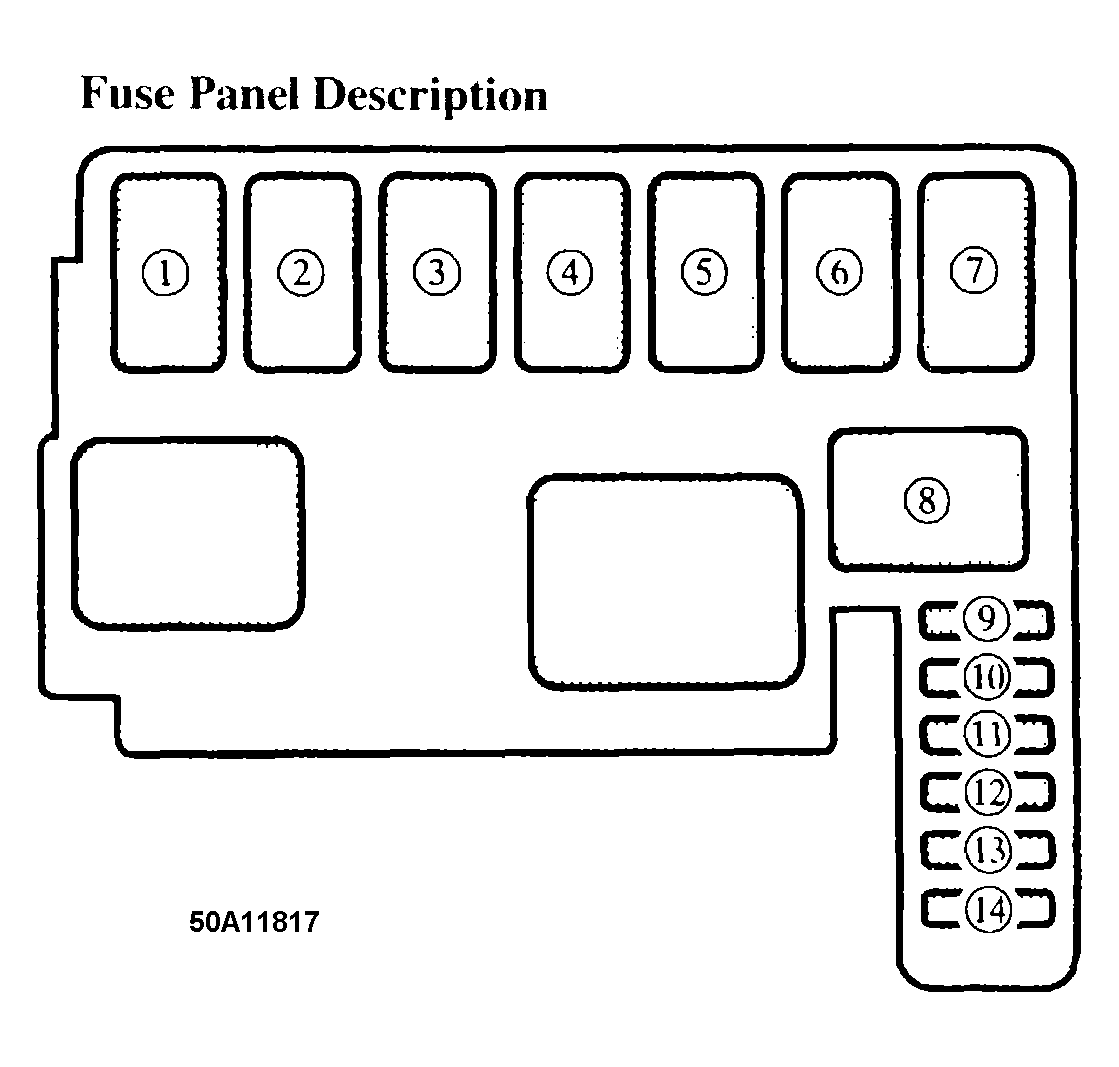

Fig 1: Underhood Fuse Panel Identification
G50A11817Courtesy of MAZDA MOTOR OF AMERICA, INC.
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
