Oil Jet

WARNING: This page is about a different variant/trim than selected.

Oil jet is located on crankshaft side, toward timing belt end of cylinder block. Apply 25-32 psi (1.7-2.3 kg/cm² ) compressed air to oil jet valve hole and verify air passes through oil jet valve. Replace valve as necessary. Check oil jet nozzle for clogs. Replace as necessary.

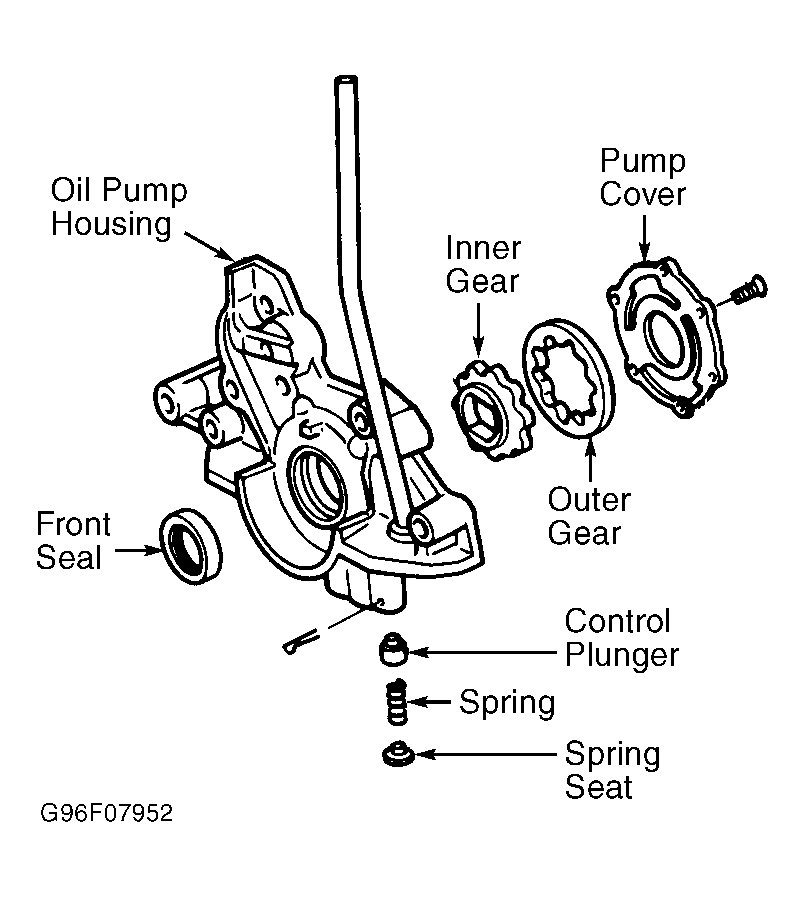

Fig 1: Exploded View Of Oil Pump

Courtesy of MAZDA MOTORS CORP.

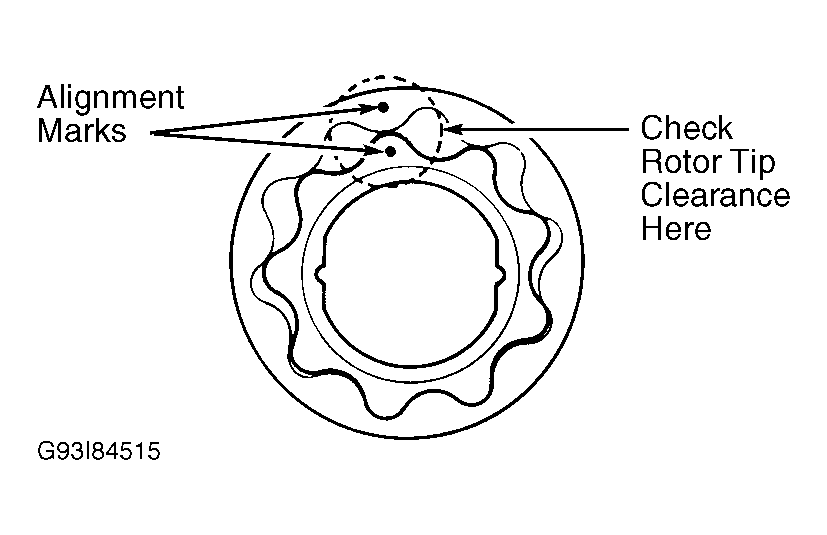

Fig 2: Aligning Marks On Inner & Outer Gears

Courtesy of MAZDA MOTORS CORP.
