Engine Compartment Fuse Block

NOTE: Engine compartment fuse block is located on left side of engine compartment. See Fig 1 - Fig 3 .

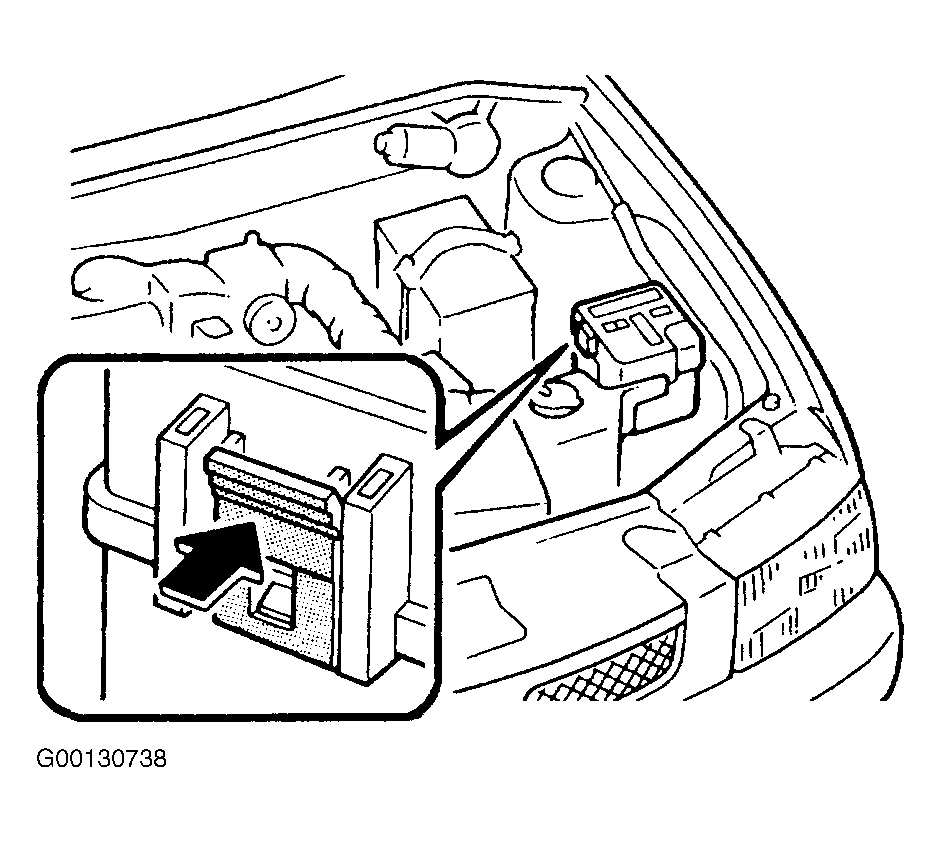

Fig 1: Locating Engine Compartment Fuse Block
G00130738Courtesy of MAZDA MOTORS CORP.

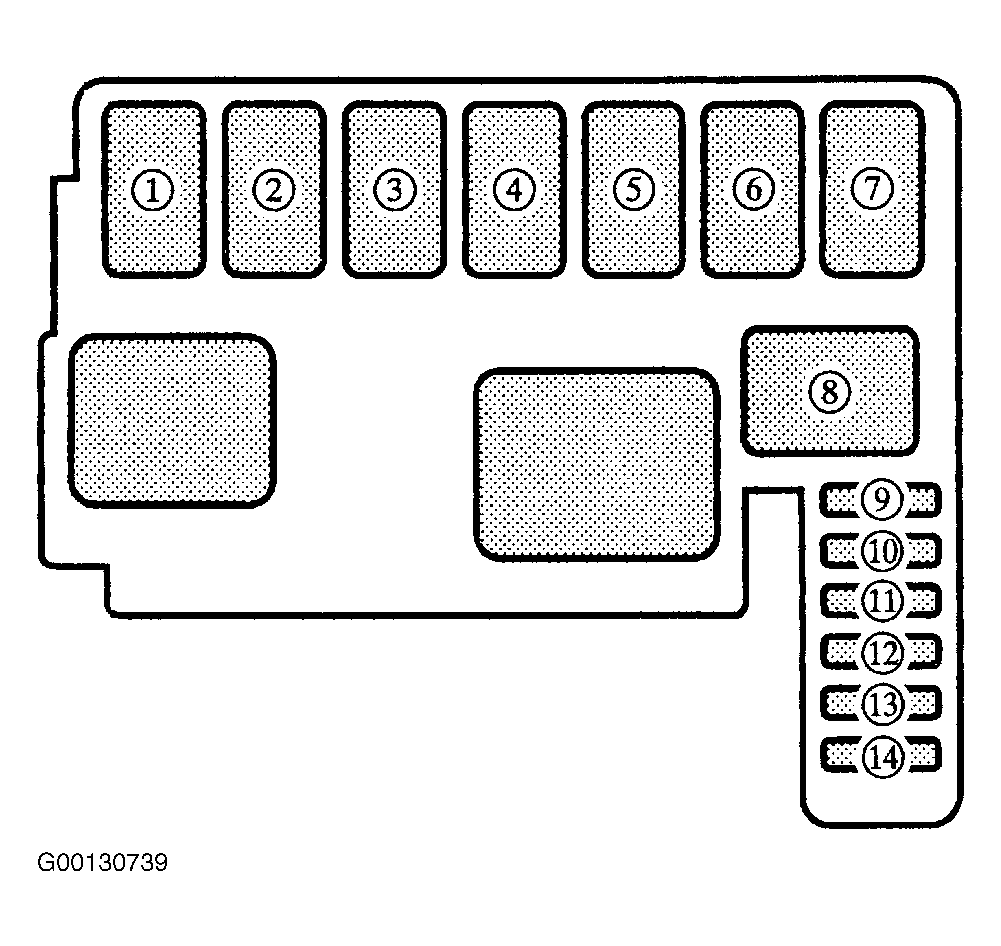

Fig 2: Identifying Engine Compartment Fuse Block Components
G00130739Courtesy of MAZDA MOTORS CORP.

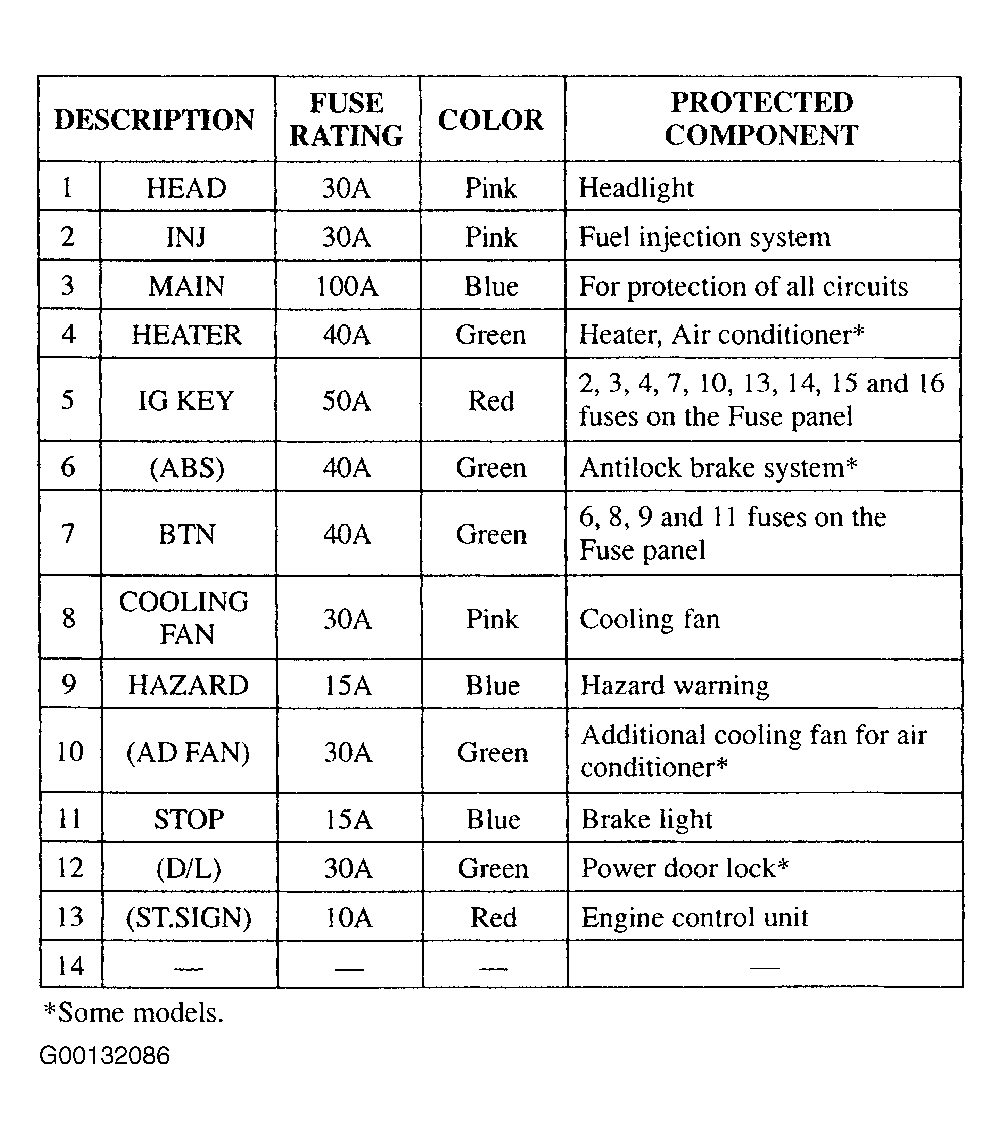

Fig 3: Engine Compartment Fuse Block Legend
G00132086Courtesy of MAZDA MOTORS CORP.
