Intermittent Wiper Relay

  1. Locate intermittent relay behind left side of instrument panel. Leave intermittent relay connecter attached. Using DVOM, measure voltage at specified terminals of intermittent relay connector (backprobe connector). SeeFig 1 .
  2. Disconnect intermittent relay connector and check continuity at specified terminals. If voltage measurements or continuity are not as specified, check related components and wiring harnesses. SeeFig 1 . If related components amd wiring harnesses are okay, but system is still not functioning properly, replace intermittent relay.

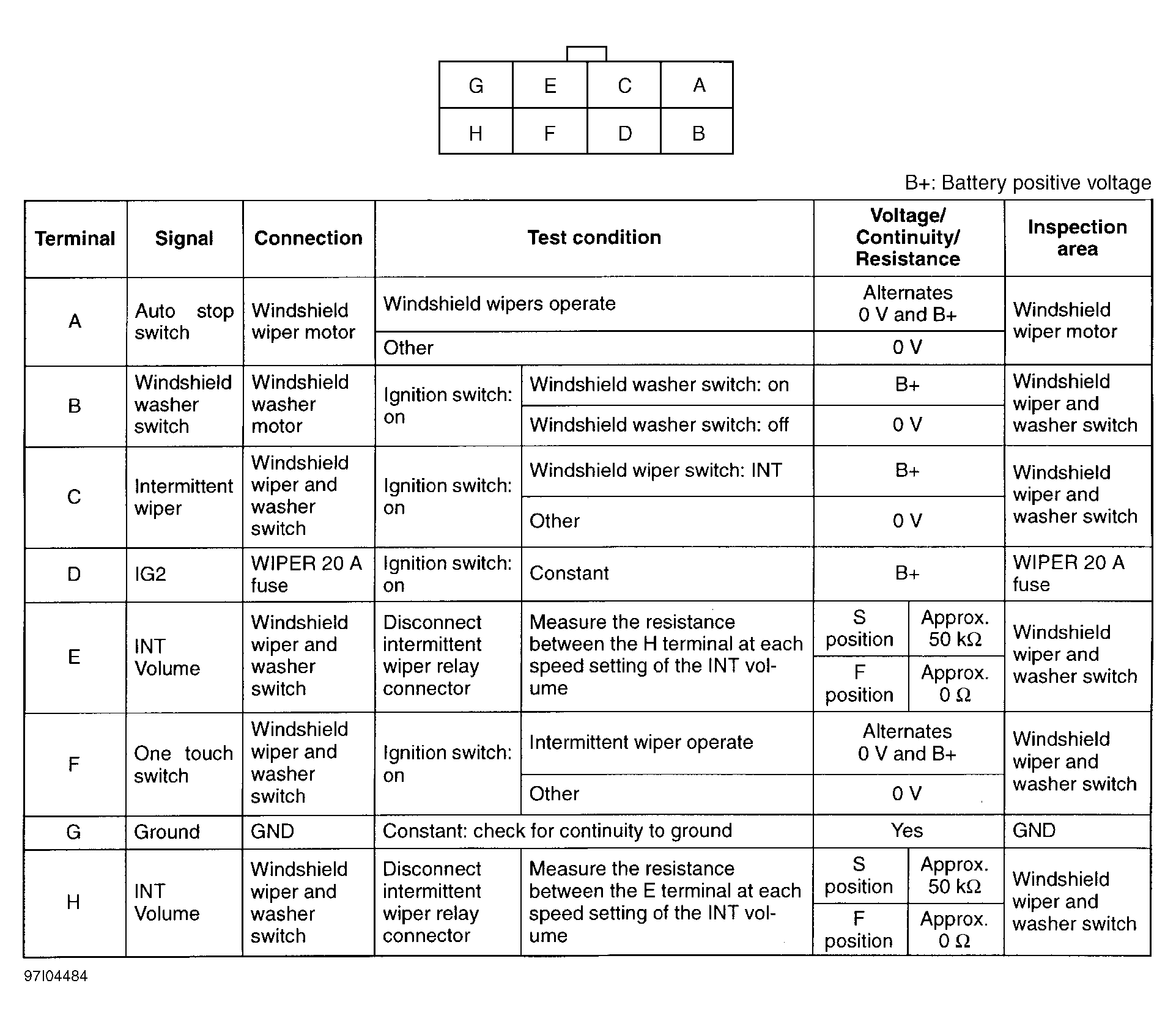

Fig 1: Intermittent Relay Circuit Testing/Connector Terminals
G97I04484Courtesy of MAZDA MOTORS CORP.
