Flasher Unit

If turn signal and/or hazard flasher operation is incorrect, check for faults in circuits leading to flasher unit. SeeFig 1. If no faults are found, replace flasher unit.

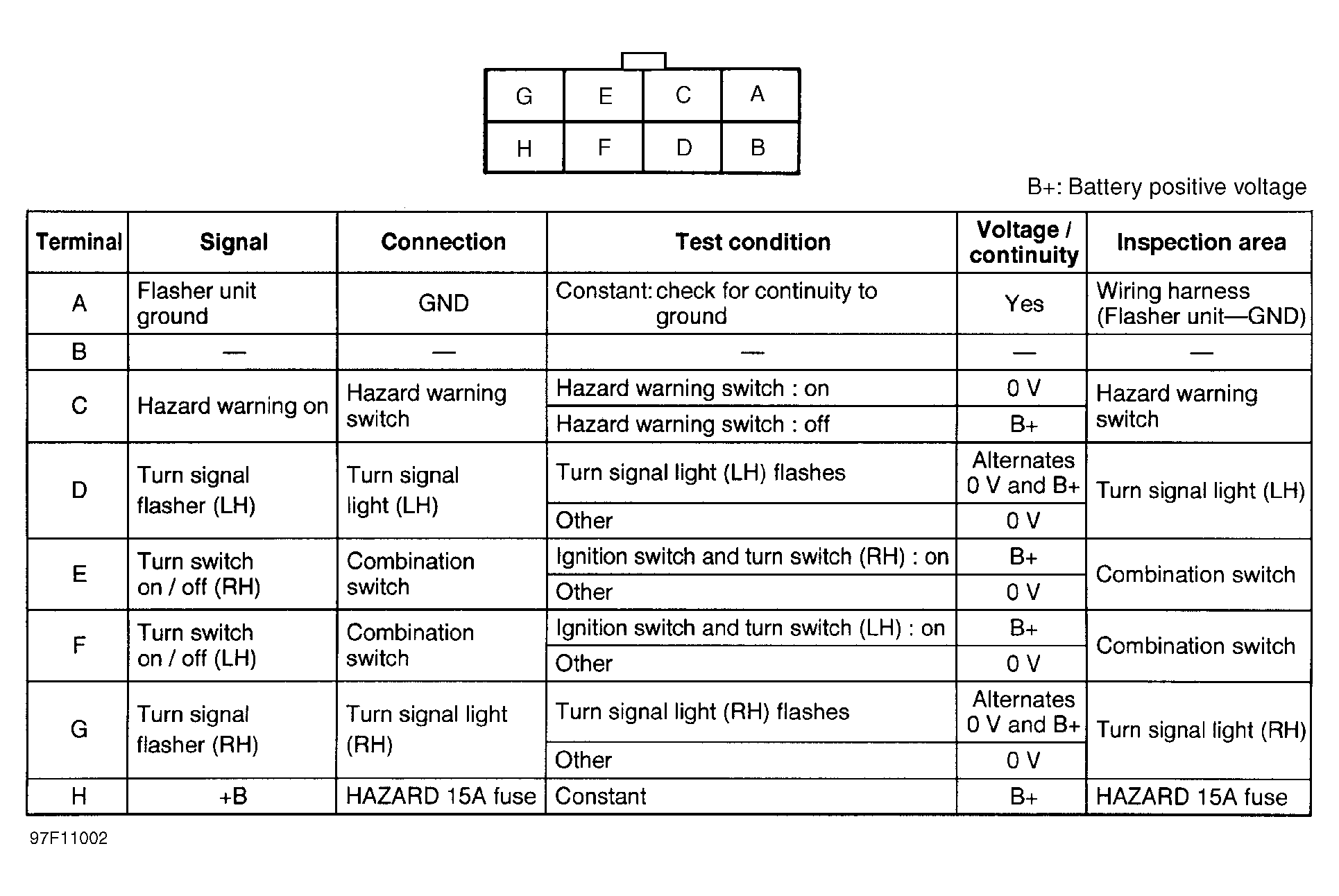

Fig 1: Flasher Unit Circuit Testing/Connector Terminals

Courtesy of MAZDA MOTORS CORP.
