Component Locations

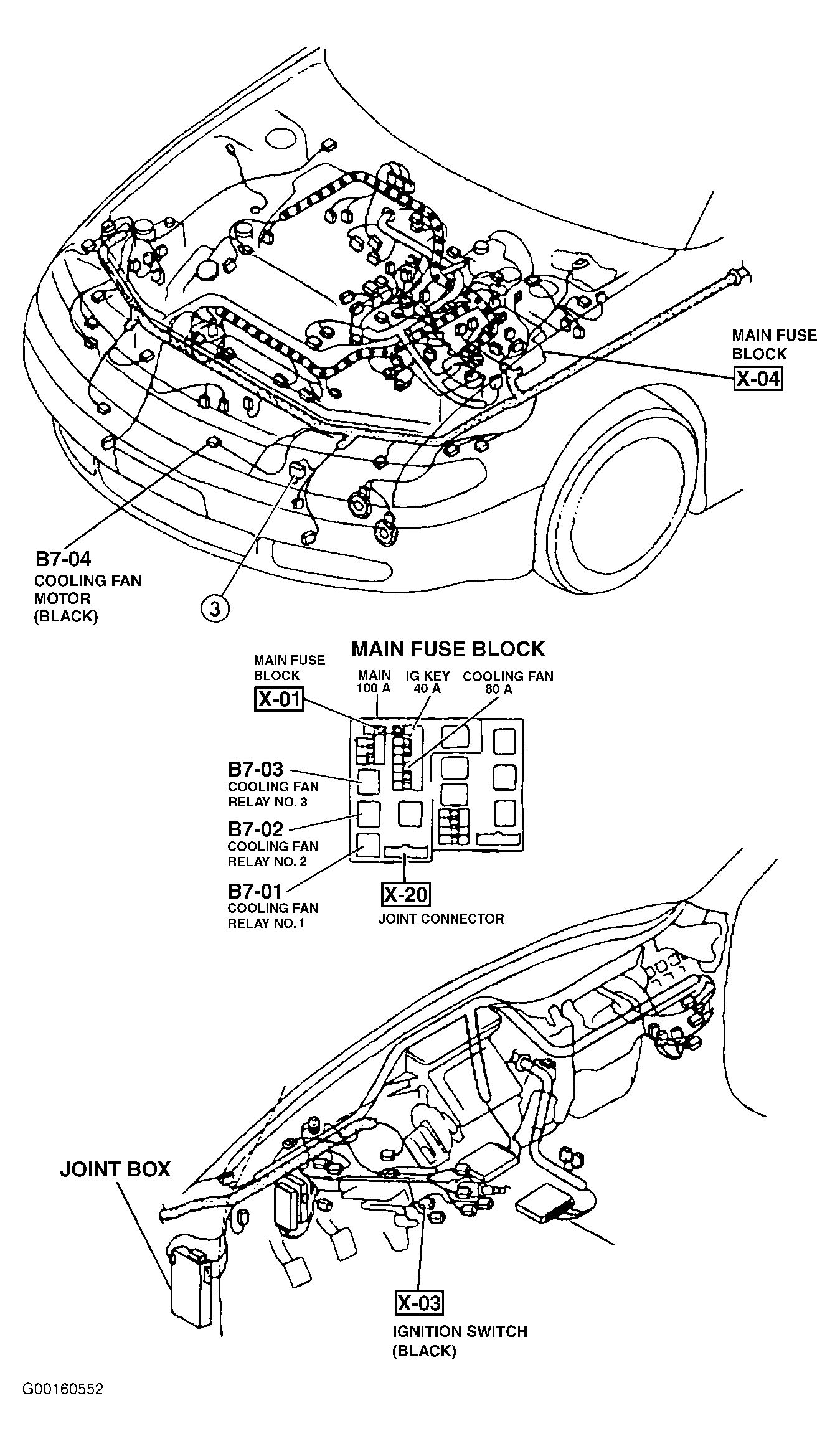

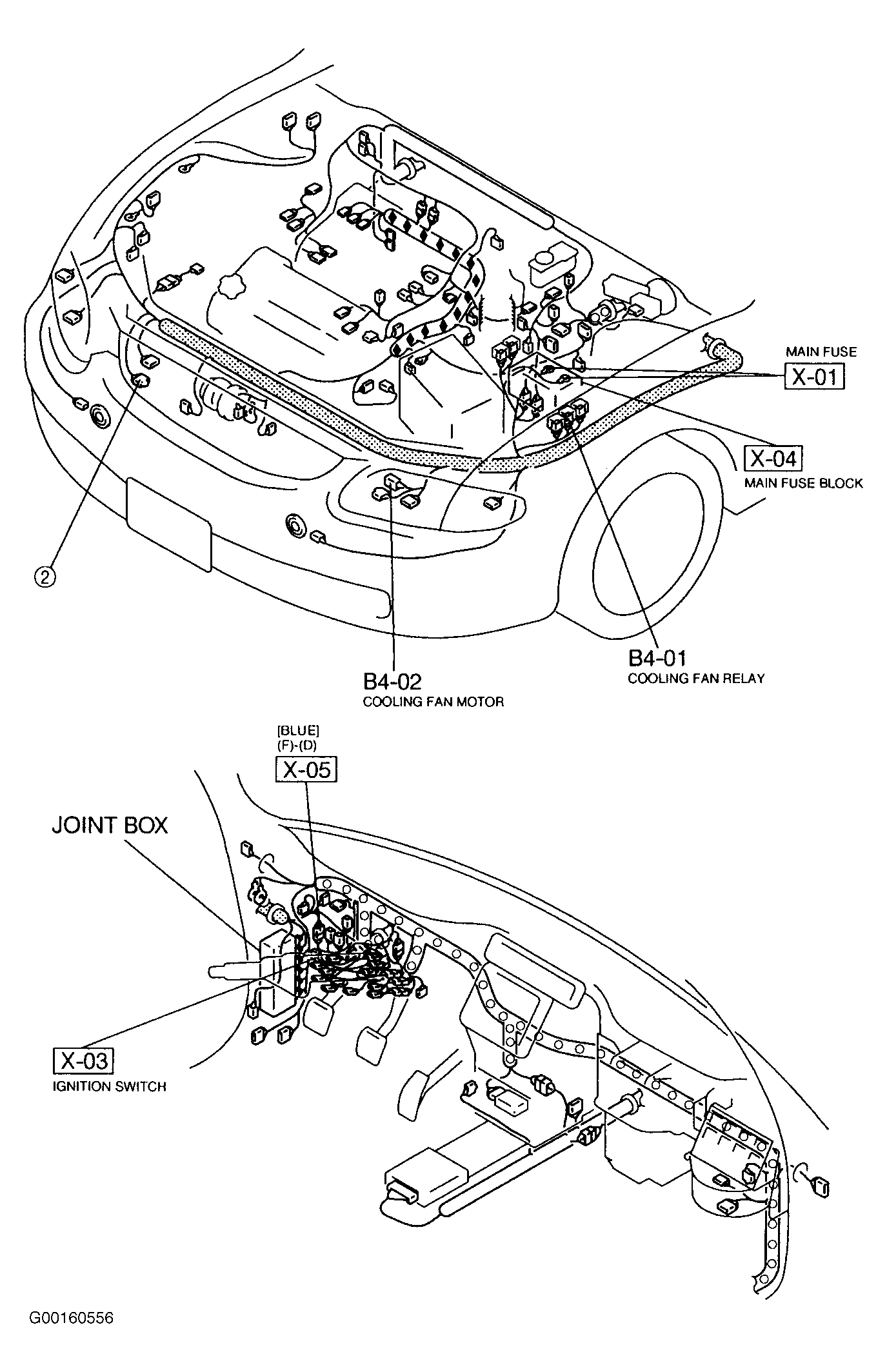

Fig 1: Identifying Component Locations (Millenia - 2.3L)

Courtesy of MAZDA MOTORS CORP.

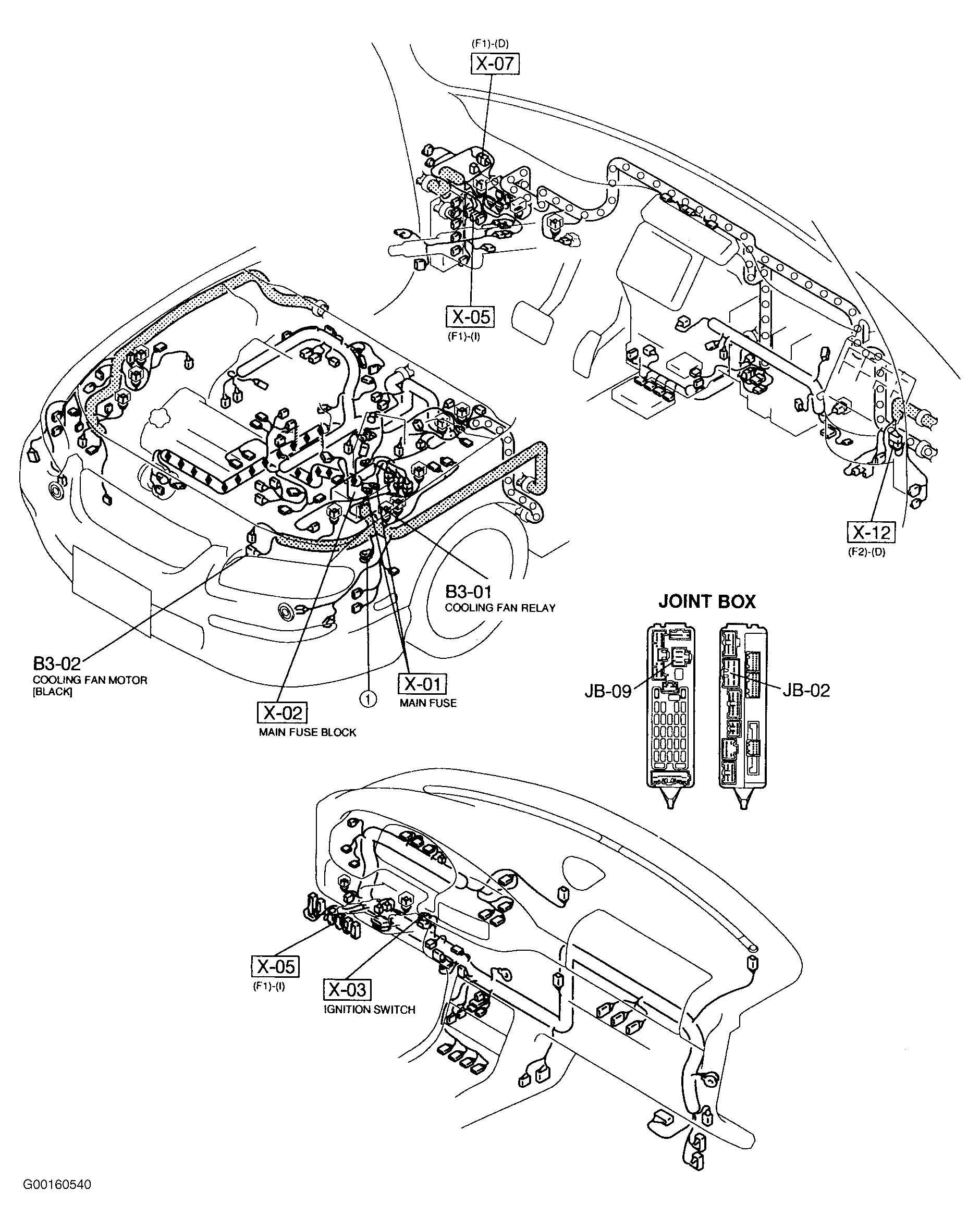

Fig 2: Identifying Component Locations (Millenia - 2.5L)

Courtesy of MAZDA MOTORS CORP.

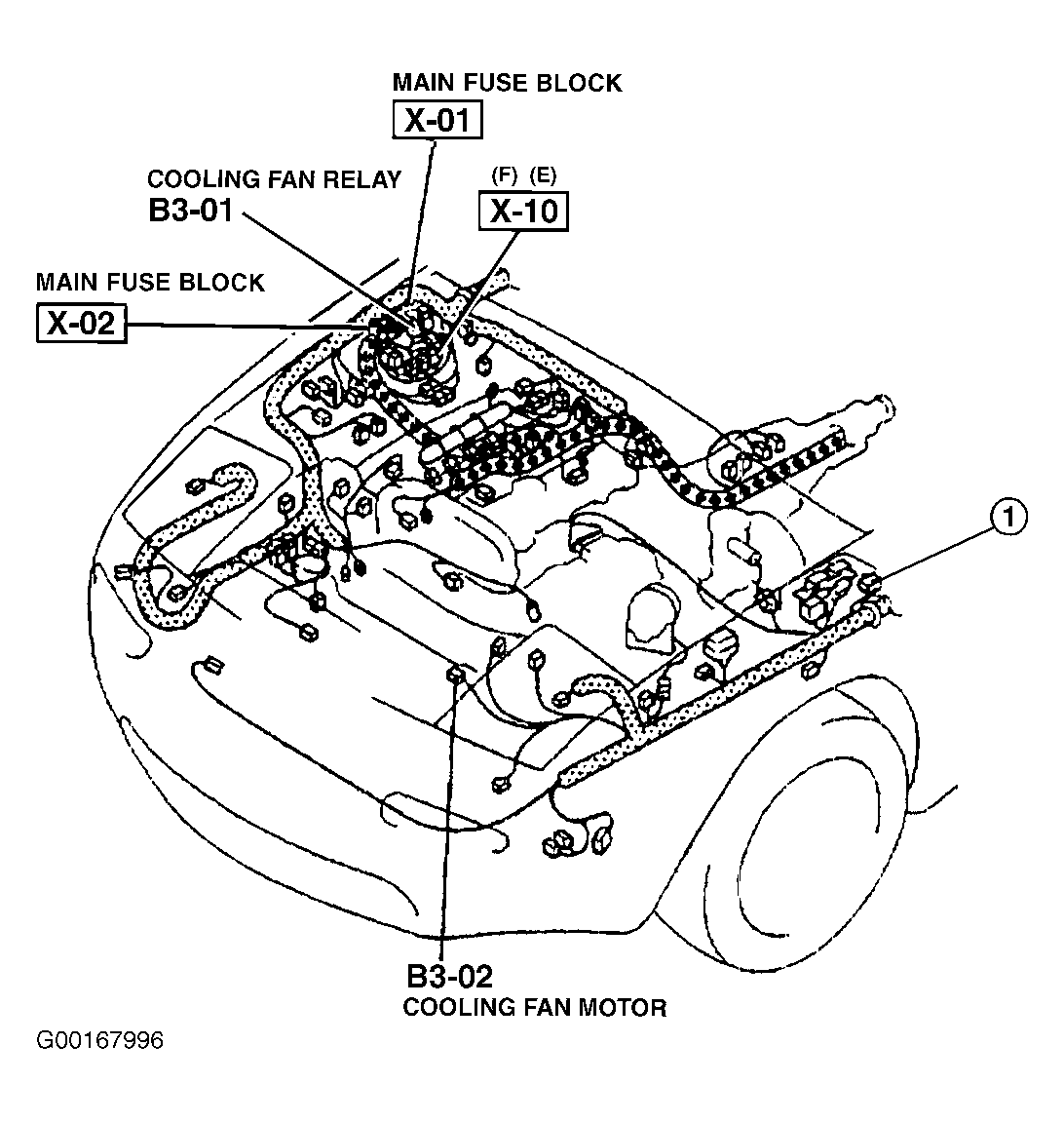

Fig 3: Identifying Component Locations (MX-5 Miata)

Courtesy of MAZDA MOTORS CORP.

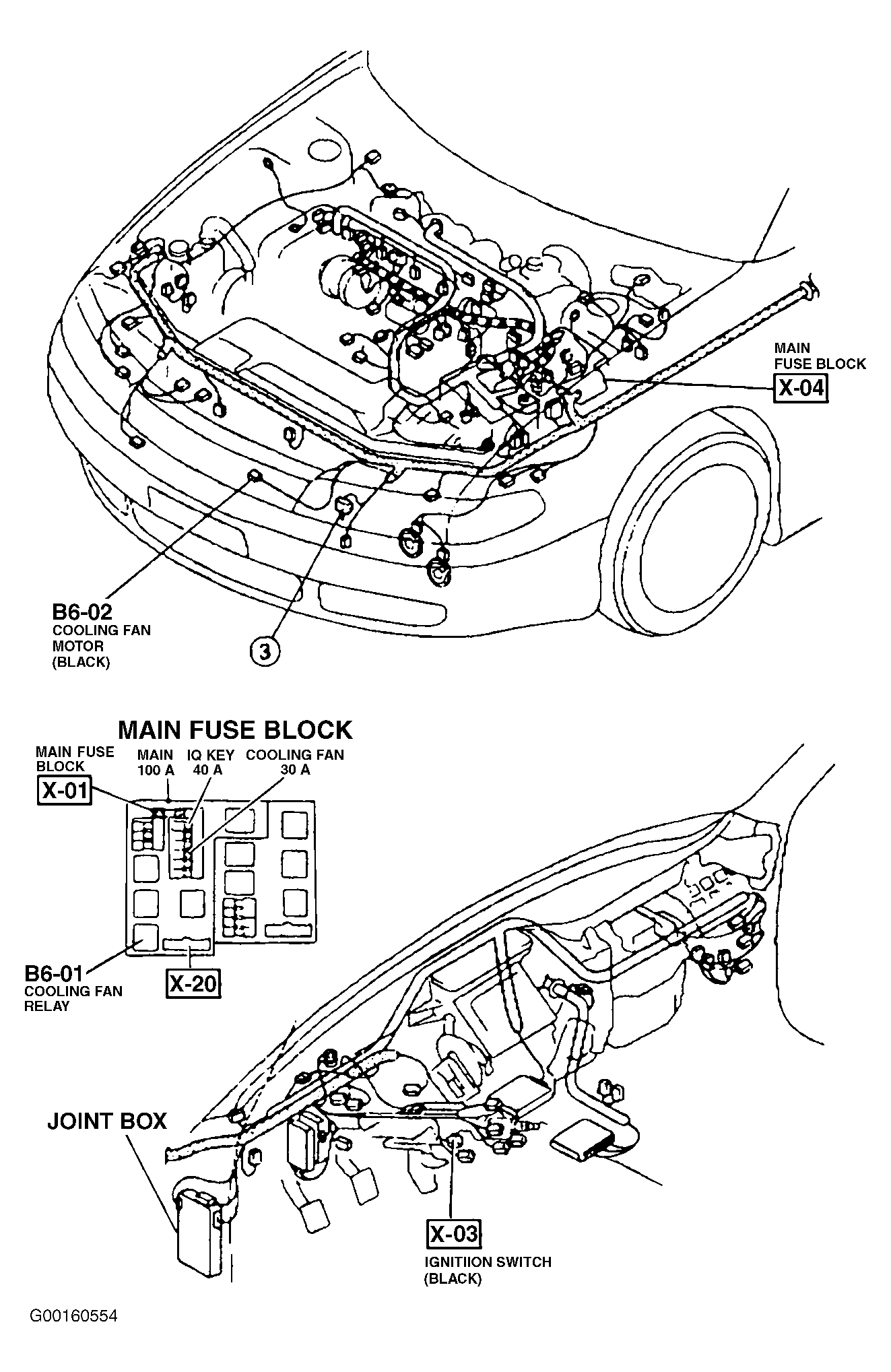

Fig 4: Identifying Component Locations (Protege)

Courtesy of MAZDA MOTORS CORP.

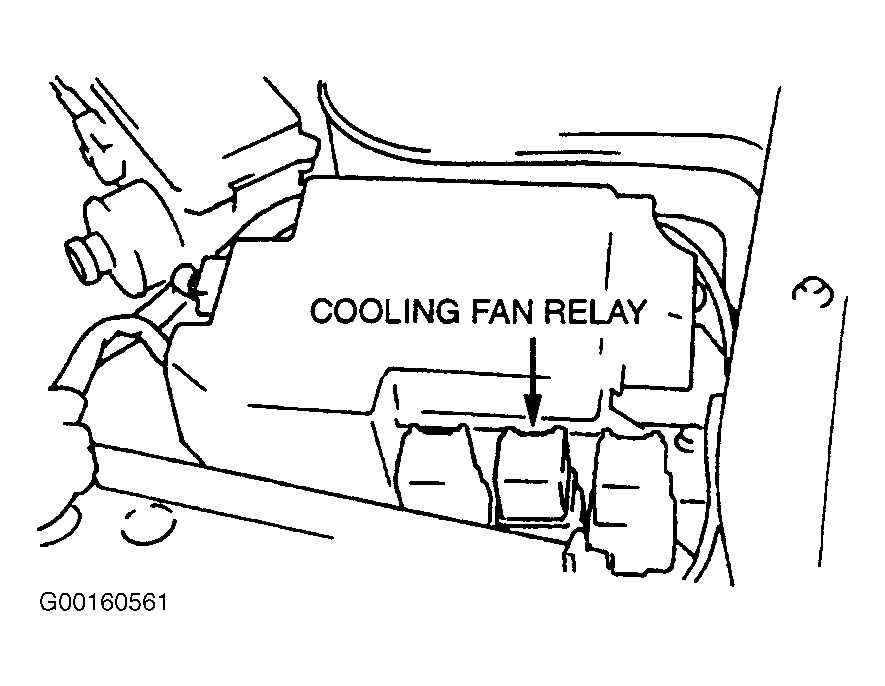

Fig 5: Identifying Component Locations (1997 626 & MX-6 - 2.0L)

Courtesy of MAZDA MOTORS CORP.

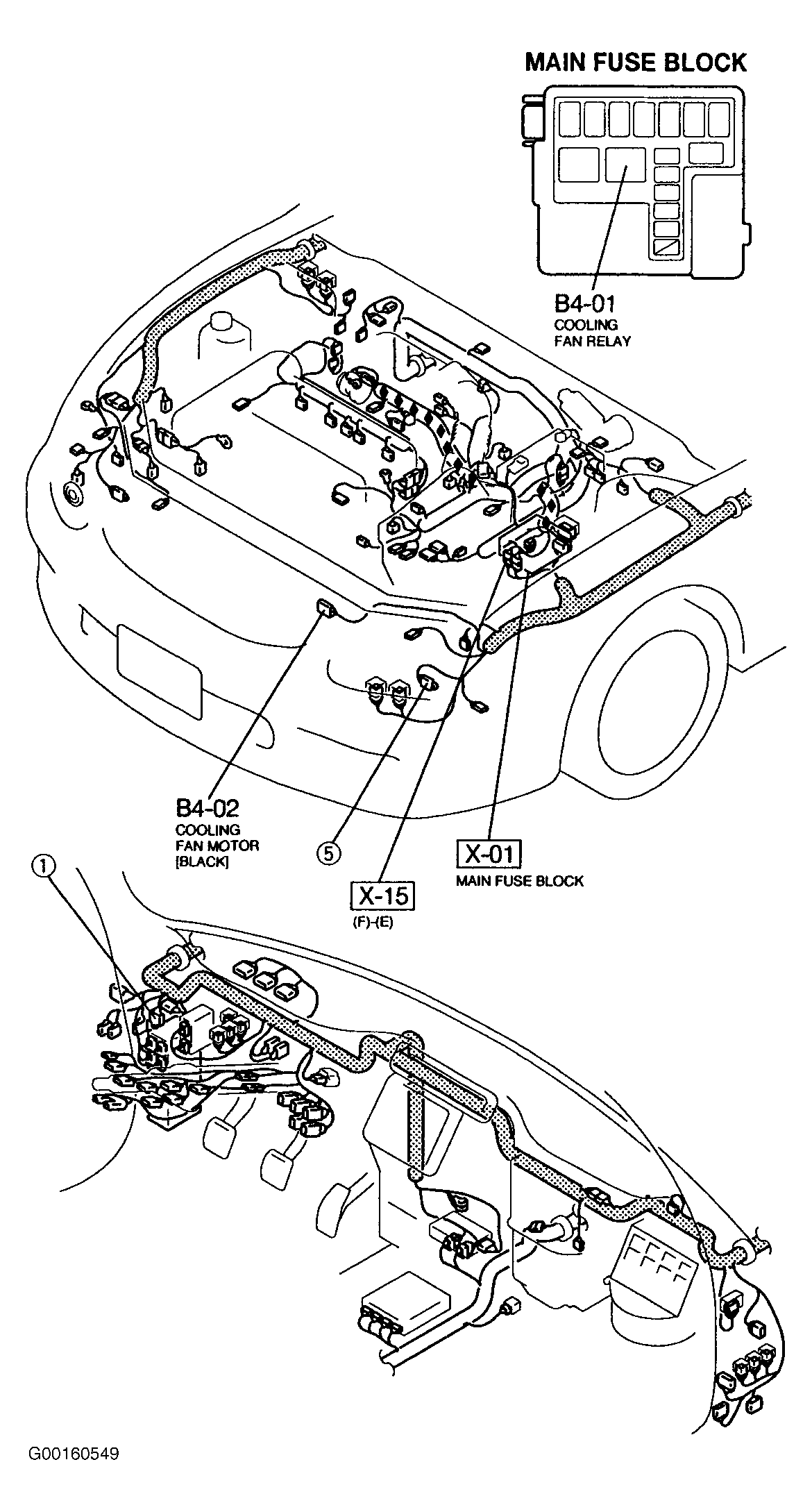

Fig 6: Identifying Component Locations (1997 626 & MX-6 - 2.5L)

Courtesy of MAZDA MOTORS CORP.

Fig 7: Identifying Cooling Fan Relay Location (1997 626 & MX-6)

Courtesy of MAZDA MOTORS CORP.

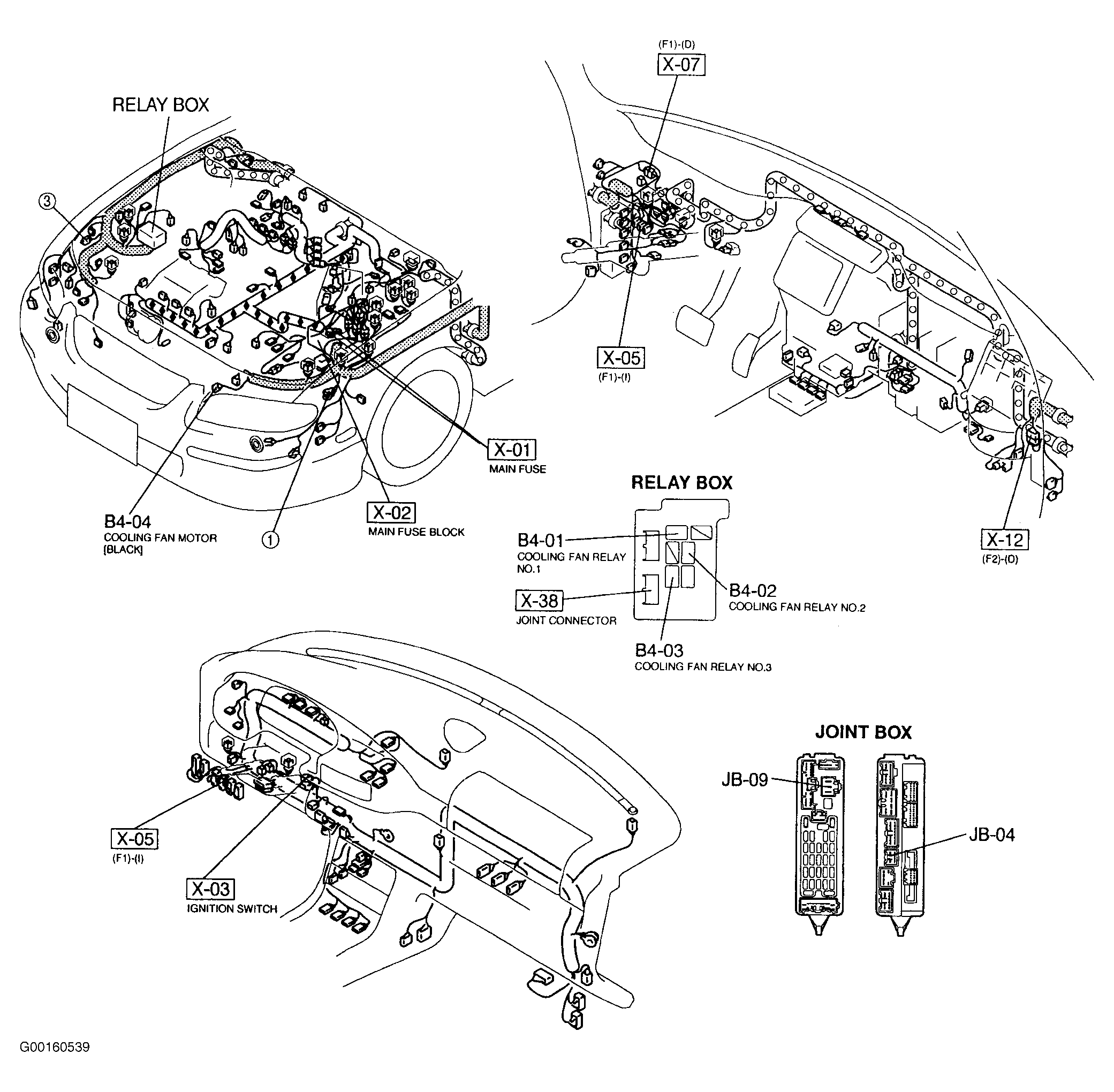

Fig 8: Identifying Component Locations (1998 626)

Courtesy of MAZDA MOTORS CORP.

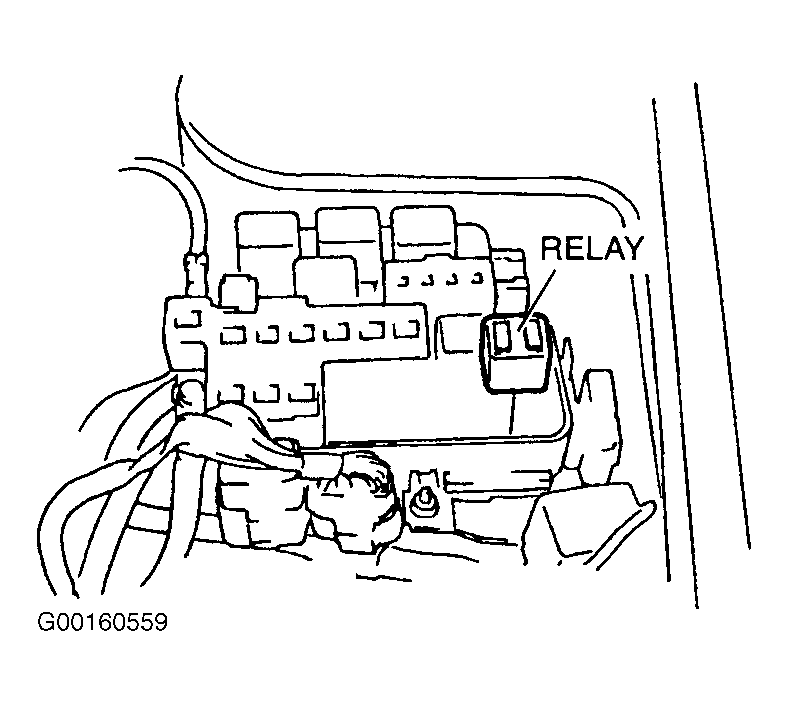

Fig 9: Identifying Cooling Relay Location (1998 626)

Courtesy of MAZDA MOTORS CORP.
