Instrument Panel Fuse Block

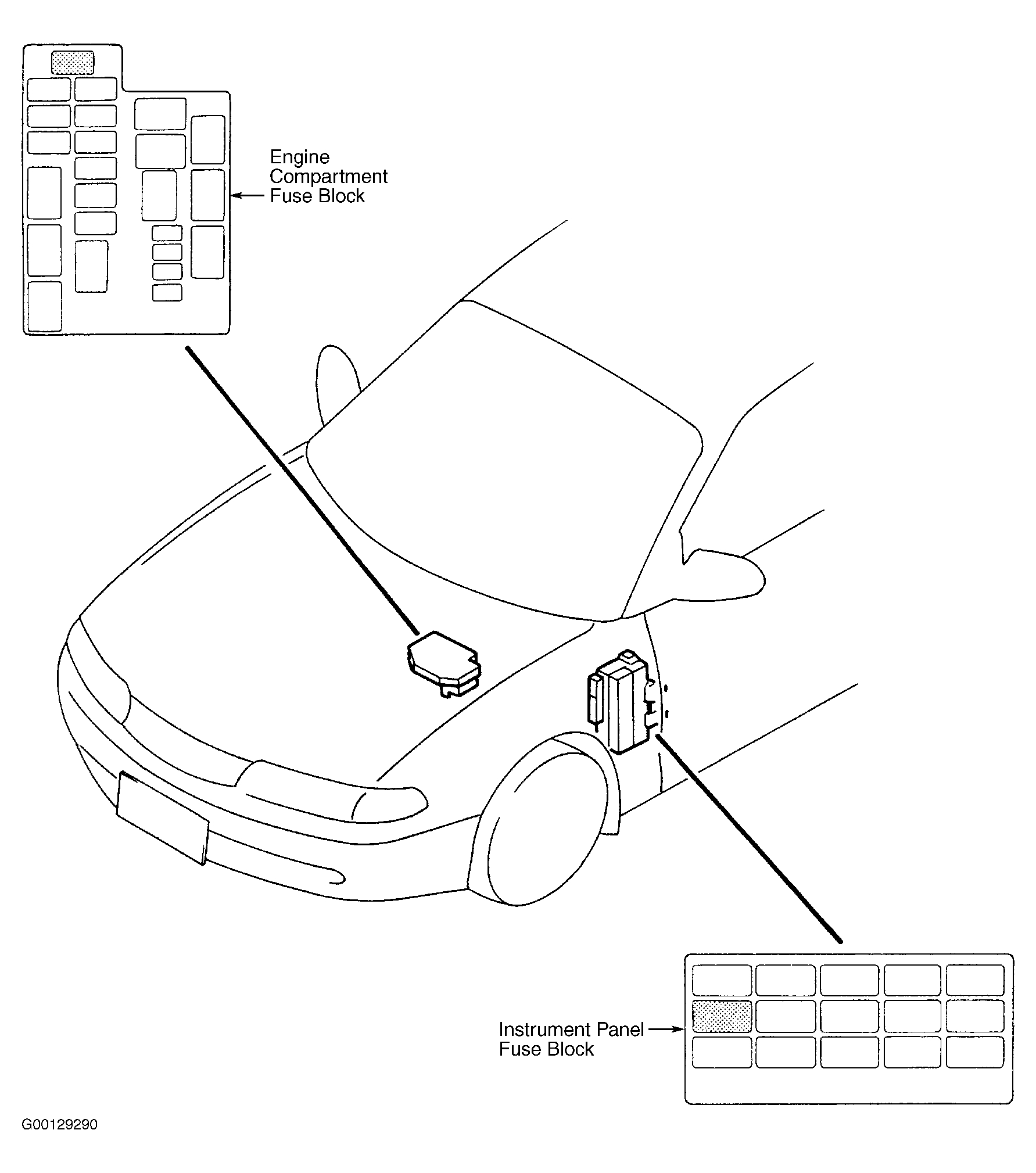

NOTE: Instrument panel fuse block is located under driver's side of instrument panel. See Figure and Fig 1 .

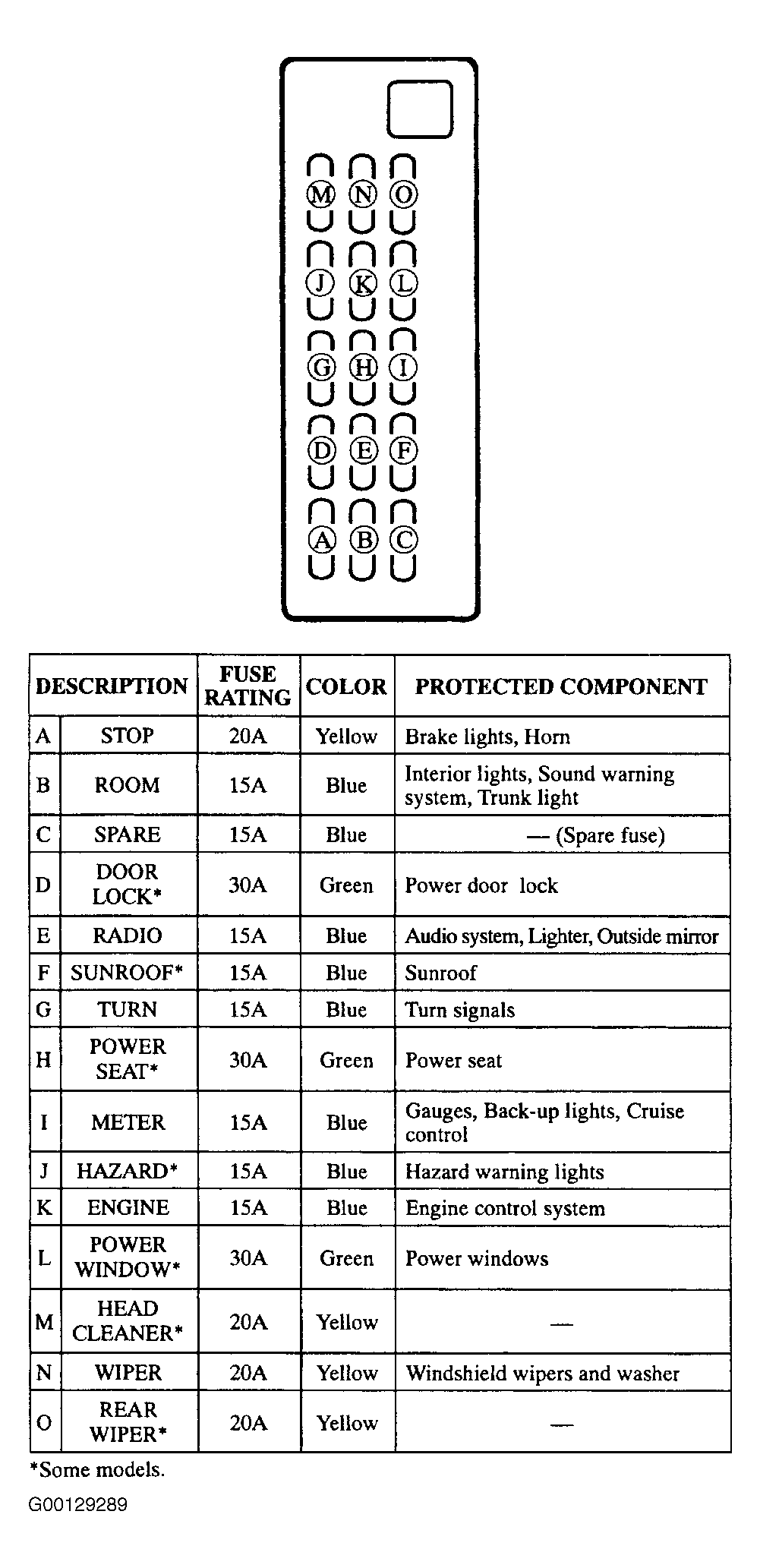

Fig 1: Identifying Instrument Panel Fuse Block Components & Legend
G00129289Courtesy of MAZDA MOTORS CORP.
