Engine Compartment Fuse Block

NOTE: Engine compartment fuse block is located on left side of engine compartment. See Fig 1 and Fig 2 .
Fig 1: Locating Engine Compartment & Instrument Panel Fuse Blocks
G00129290Courtesy of MAZDA MOTORS CORP.

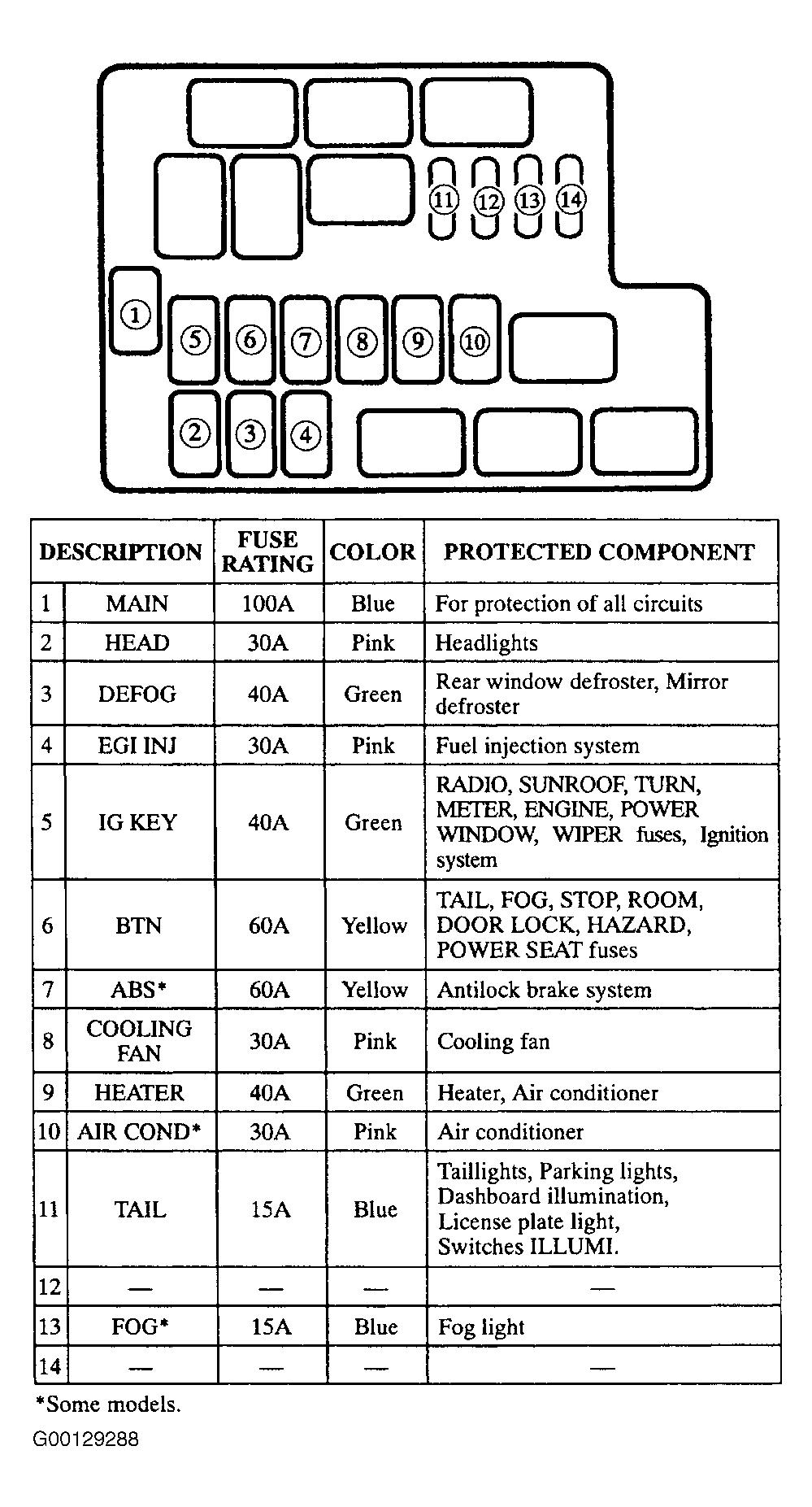

Fig 2: Identifying Engine Compartment Fuse Block Components & Legend
G00129288Courtesy of MAZDA MOTORS CORP.
