| A/C Compressor Bolt |
13-20 (18-27) |
| A/C Compressor Bracket-To-Cylinder |
| Block Bolt |
27-38 (37-52) |
| Camshaft Sprocket Bolt |
52-59 (71-80) |
| Connecting Rod Nut |
| Step 1 |
22 (30) |
| Step 2 |
Additional 90 Degrees |
| Crankshaft Pulley Bolt |
116-123 (157-167) |
| Crossover Pipe-To-Exhaust Manifold Bolt |
12-16 (16-22) |
| Cylinder Head Bolt |
| Step 1 |
14 (19) |
| Step 2 |
Additional 90 Degrees |
| Step 3 |
Additional 90 Degrees |
| Delivery Pipe Nut |
14-19 (19-26) |
| Distributor Hold-Down Bolt |
14-19 (19-26) |
| Dynamic Chamber Nut |
14-19 (19-26) |
| Engine Mount Bracket-To-Cylinder |
| Block Bolt |
29-42 (39-57) |
| Engine Mount Nut |
25-36 (34-49) |
| Exhaust Manifold Nut |
16-21 (22-29) |
| Exhaust Pipe-To-Exhaust Manifold Nut |
28-38 (38-52) |
| Flywheel/Flexplate Bolt |
76-81 (103-110) |
| Intake Manifold Nut |
14-19 (19-26) |
| Lower Idler Pulley Bolt |
27-38 (37-52) |

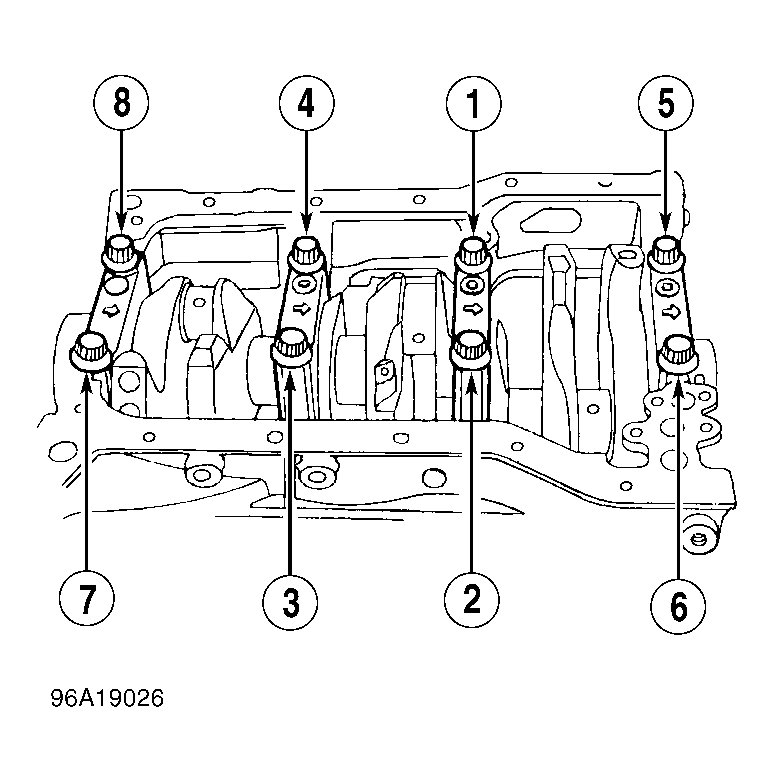

| Main Bearing Cap Bolt |
| Step 1 |
14 (19) |
| Step 2 |
Additional 90 Degrees |
| Step 3 |
Additional 45 Degrees |
| Oil Pressure Relief Valve Plug |
56-65 (76-88) |
| Oil Pump Bolt |
14-19 (19-26) |
| Power Steering Pump Bolt |
23-34 (31-46) |
| Power Steering Pump Pulley Nut |
29-43 (39-58) |
| Rocker Arm Shaft Bolt |
14-19 (19-26) |
| Spark Plug |
11-16 (15-22) |
| Stabilizer Bar-To-Frame Clamp Bolt |
14-19 (19-26) |
| Tensioner Pulley Bolt |
17-22 (23-30) |
| Thermostat Housing Bolt |
14-19 (19-26) |
| Throttle Body Bolt/Nut |
14-19 (19-26) |
| Timing Belt Cover Bolt |
| 6-mm Bolt |
|
| 10-mm Bolt |
27-38 (37-52) |
| Timing Belt Tensioner Bolt |
14-19 (19-26) |
| Transmission Crossmember-To-Frame Bolt |
32-45 (43-61) |
| Transmission Mount-To-Crossmember Nut |
23-34 (31-46) |
| Transmission-To-Cylinder Block |
| Support Brace Bolt |
27-38 (37-52) |
| Upper Idler Pulley Bolt |
27-38 (37-52) |
| Water Pump Bolt/Nut |
14-19 (19-26) |
| INCH Lbs. (N.m) |
| A/C Pipe Bracket Bolt |
61-89 (7-10) |
| Camshaft Thrust Plate Bolt |
71-97 (8-11) |
| Cooling Fan Bolt/Nut |
71-97 (8-11) |
| Distributor Spacer-To-Cylinder Head Bolt |
71-97 (8-11) |
| Oil Baffle Plate Bolt |
71-97 (8-11) |
| Oil Pan Bolt |
61-89 (7-10) |
| Oil Pump Cover Screws |
53-80 (6-9) |
| Pick-Up Tube Bolt |
71-97 (8-11) |
| Radiator Shroud Upper Plate Bolt |
61-89 (7-10) |
| Seal Plate Bolt |
71-97 (8-11) |
| Valve Cover Bolt |
31-39 (3.5-4.4) |
