Main Fuse Box

Main fuse box is located on passenger's side of engine compartment. See Fig 1 .

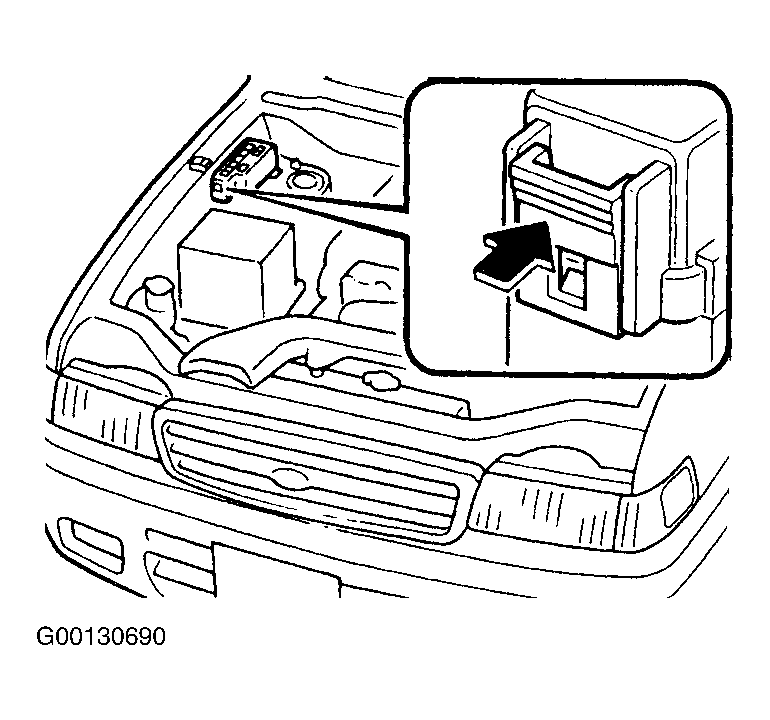

Fig 1: Locating Main Fuse Box

Courtesy of MAZDA MOTORS CORP.

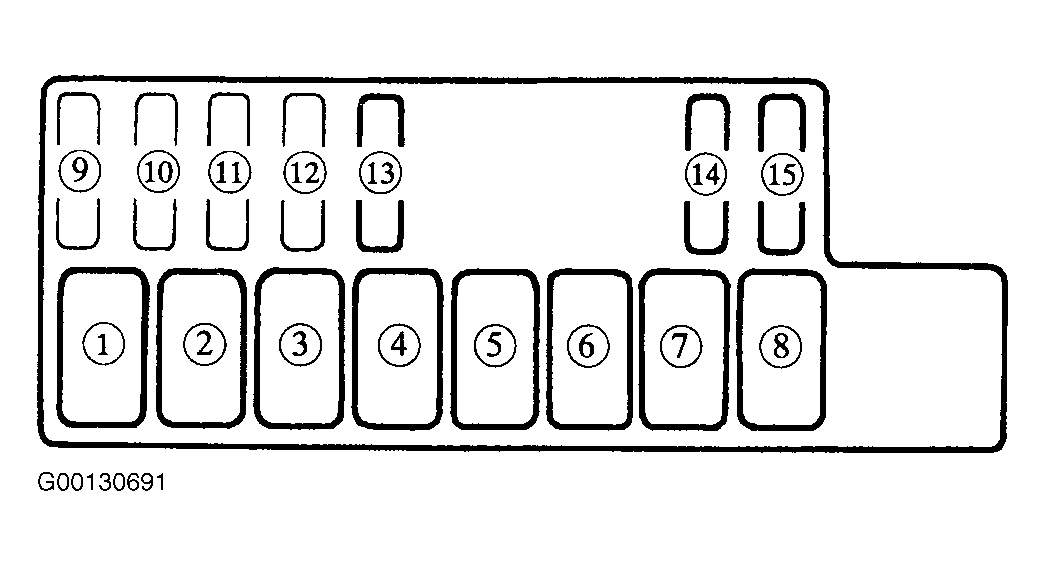

Fig 2: Identifying Main Fuse BoxComponents

Courtesy of MAZDA MOTORS CORP.

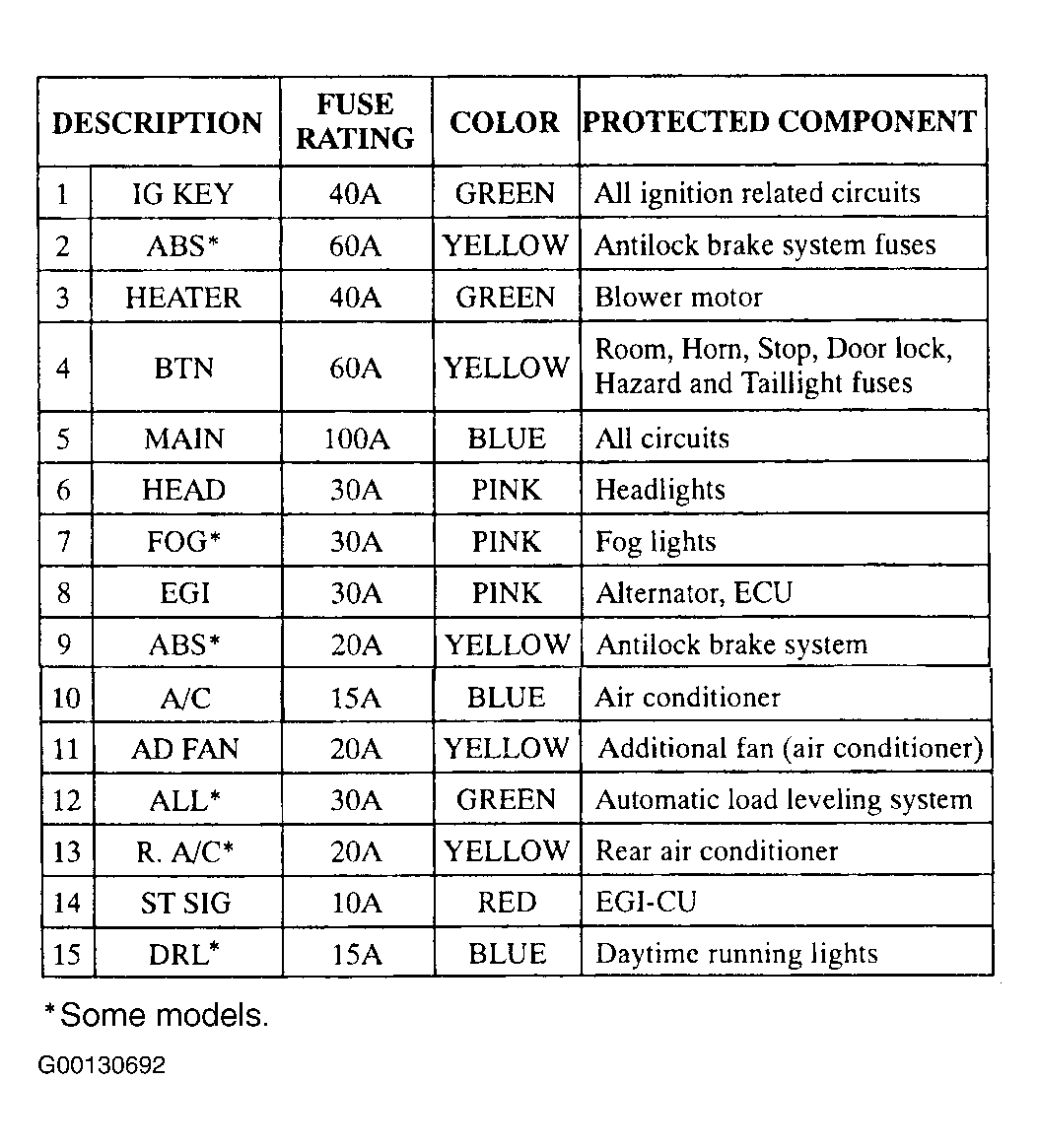

Fig 3: Main Fuse Box Legend

Courtesy of MAZDA MOTORS CORP.
