Joint Box

Joint box is located under driver's side of instrument panel. See Fig 1 .

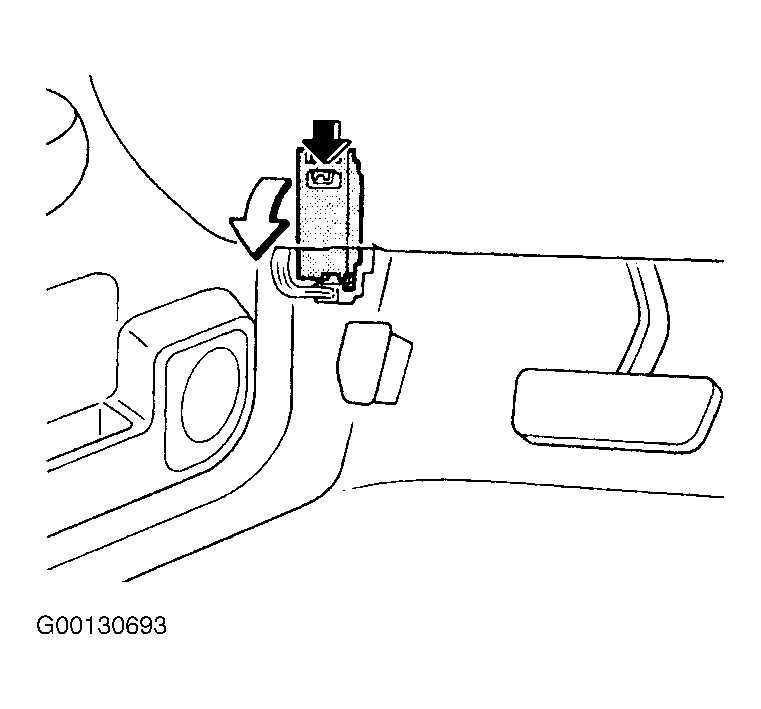

Fig 1: Locating Joint Box

Courtesy of MAZDA MOTORS CORP.

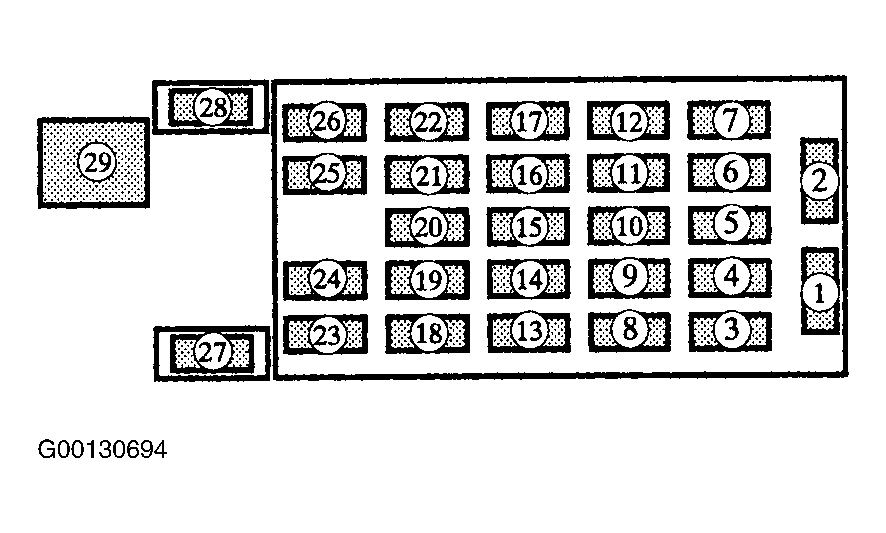

Fig 2: Identifying Joint Box Components

Courtesy of MAZDA MOTORS CORP.

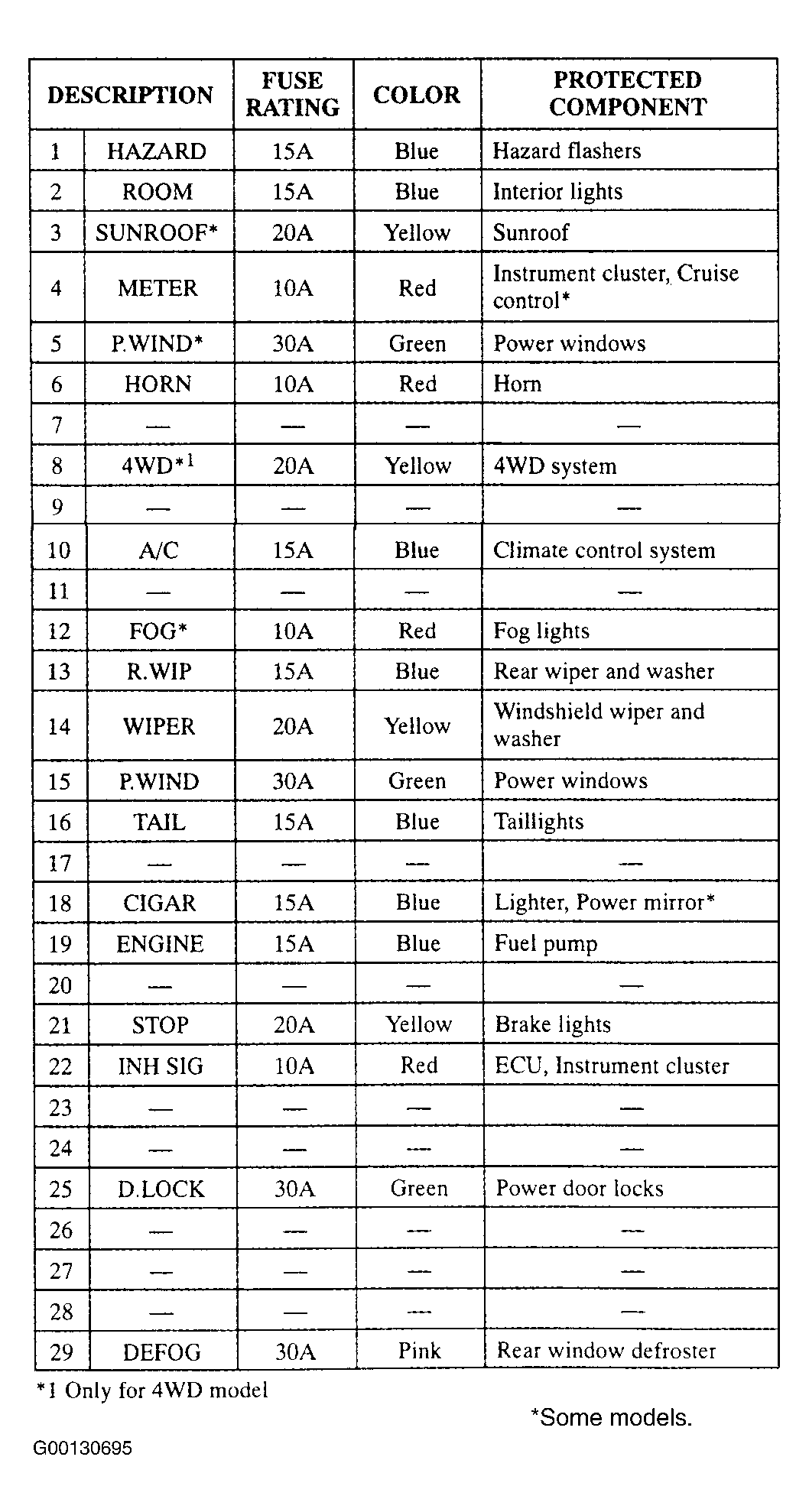

Fig 3: Joint Box Legend

Courtesy of MAZDA MOTORS CORP.
