Testing Continuity

  1. Remove change motor relay(s). Relays are located on right side of firewall, in engine compartment. See Fig 1 . Ensure continuity exists between relay terminals "A" and "B" and terminals "C" and "F". See Fig 2 .
  2. Connect positive lead of battery to change motor relay terminal "A" and negative lead to terminal "B". See Fig 2 . Check for continuity between relay terminals "C" and "E". If continuity does not exist, replace change motor relay.

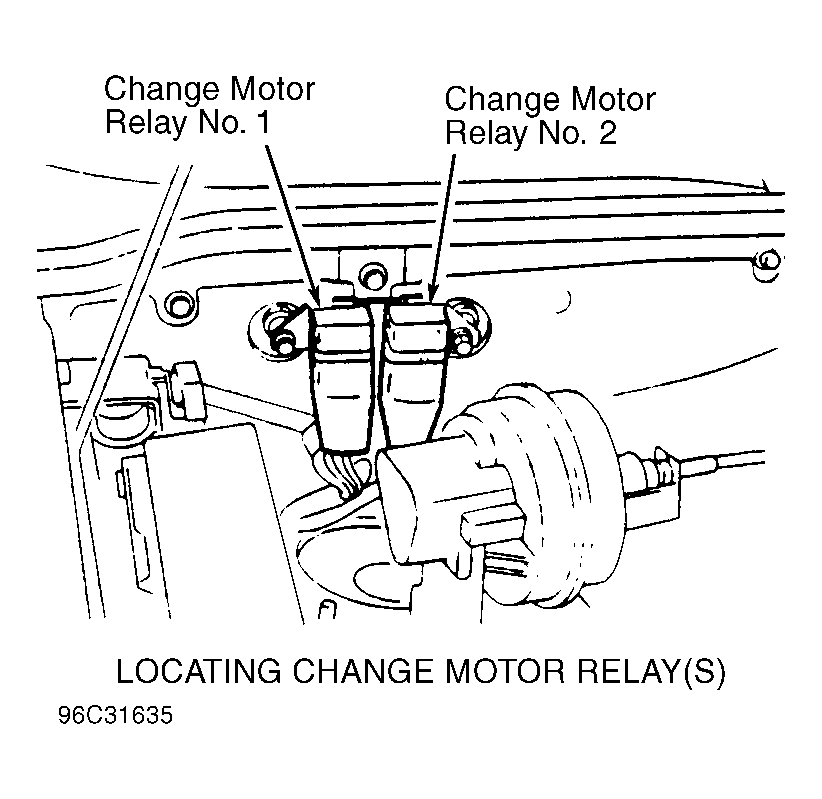

Fig 1: Locating Change Motor Relay(s)
G96C31635Courtesy of MAZDA MOTORS CORP.

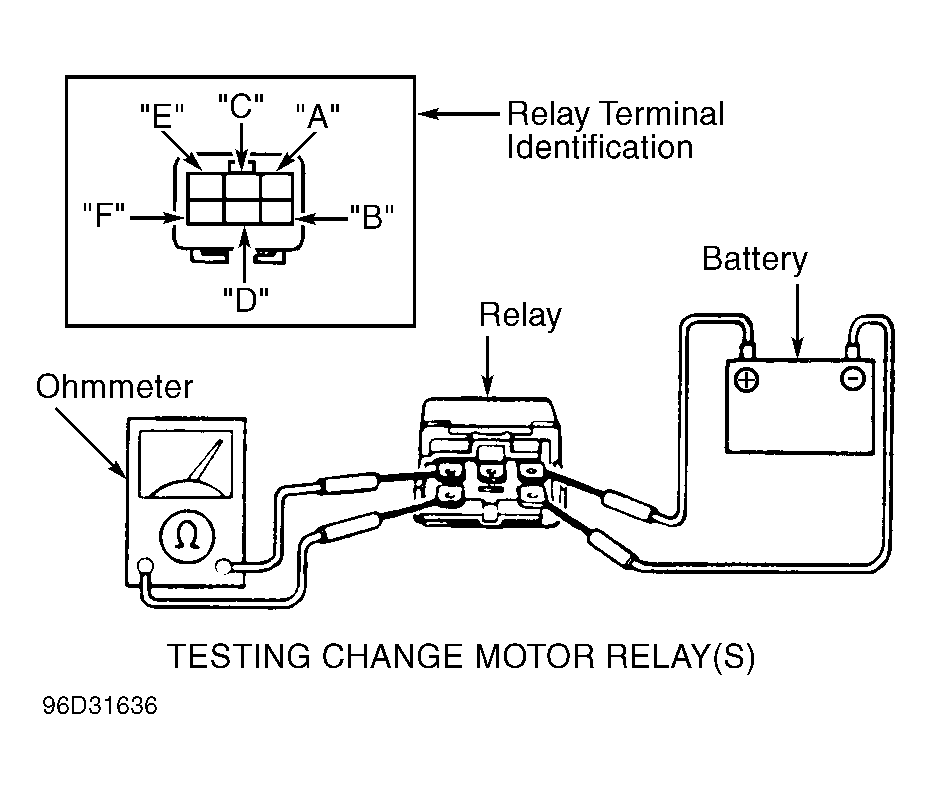

Fig 2: Testing Change Motor Relay(s)
G96D31636Courtesy of MAZDA MOTORS CORP.
