Driver's Door Lock Link Switch

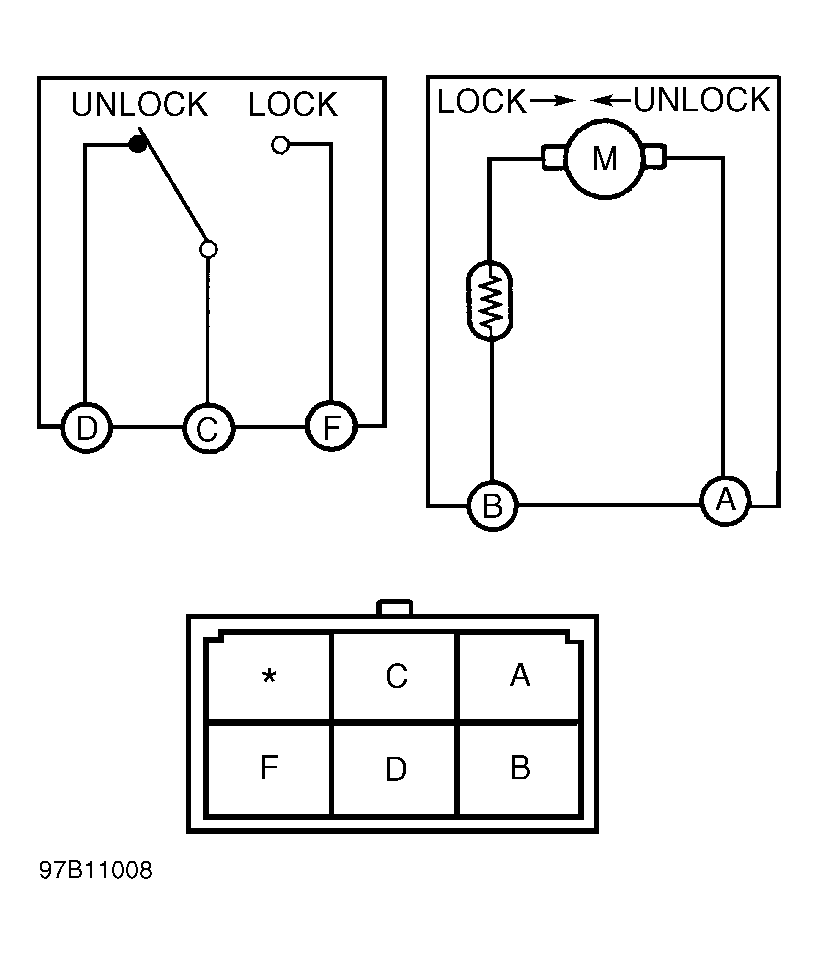

Disconnect door lock actuator connector. Check for continuity between terminals "C" (Black wire) and "F" (Green/Black wire) of actuator connector with lock rod in LOCKED position. SeeFigure . Also, check for continuity between terminals "C" (Black wire) a nd "D" Green/White wire) of actuator connector with lock rod in UNLOCKED position. If continuity does not exist on either circuit, replace door lock actuator.
