Intermittent Wiper Relay

  1. Locate intermittent relay behind right kick panel. Leave intermittent relay connecter attached. Using DVOM, measure voltage at terminals "A", "B", "C", "D" and "F" of intermittent relay connector (backprobe connector). SeeFig 1 .
  2. Disconnect intermittent relay connector and check continuity between terminals "E" and "H", and "G" and ground. If voltage measurements or continuity are not as specified, check related components and wiring harnesses. SeeFig 1 . If related components amd wiring harnesses are okay, but system is still not functioning properly, replace intermittent relay.

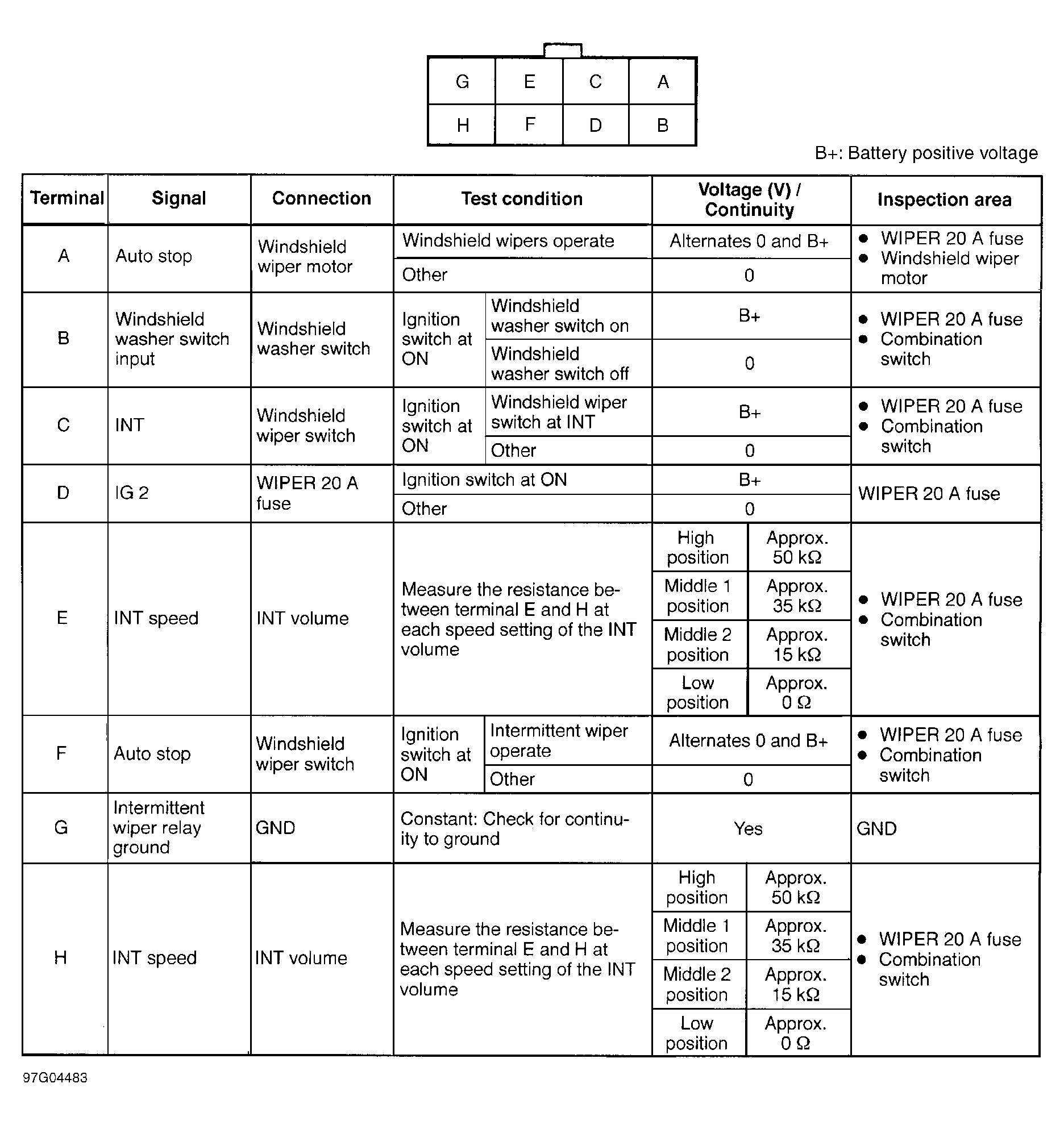

Fig 1: Intermittent Relay Circuit Testing/Connector Terminals
G97G04483Courtesy of MAZDA MOTORS CORP.
