Main Fuse Block

Main fuse block is located on driver's side of engine compartment. See Fig 1 .

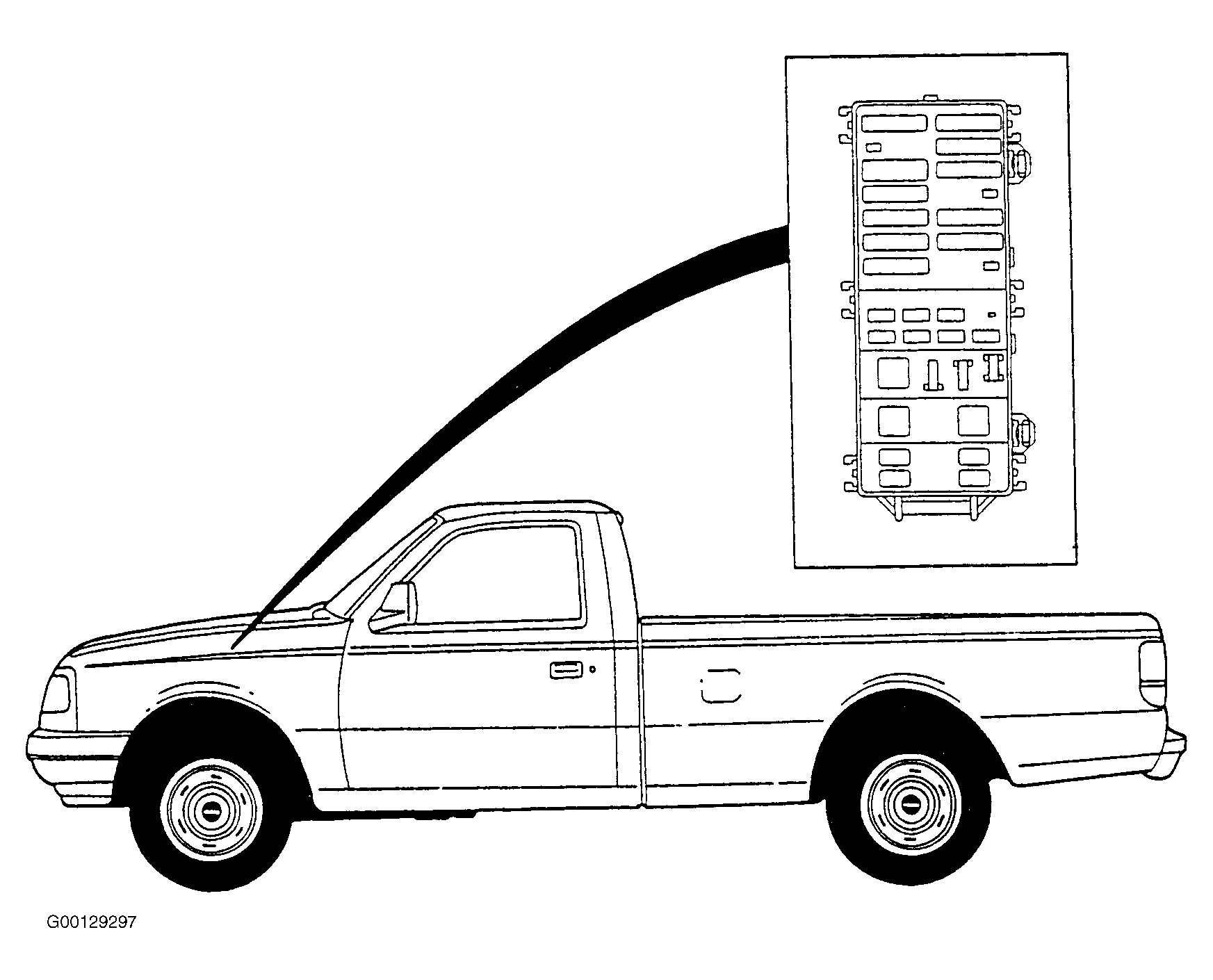

Fig 1: Locating Main Fuse Block

Courtesy of MAZDA MOTORS CORP.

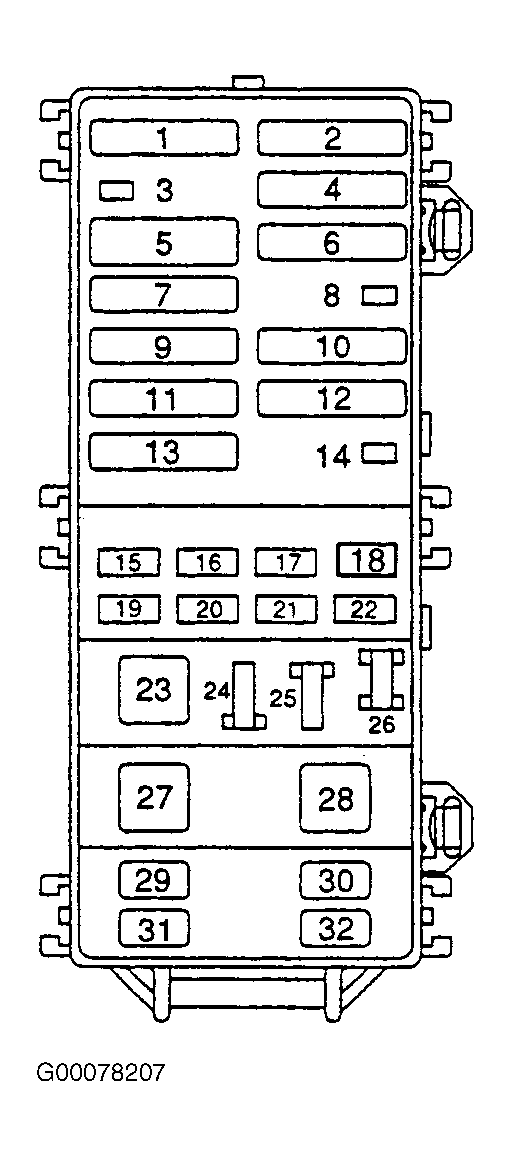

Fig 2: Identifying Main Fuse Block Components

Courtesy of MAZDA MOTORS CORP.

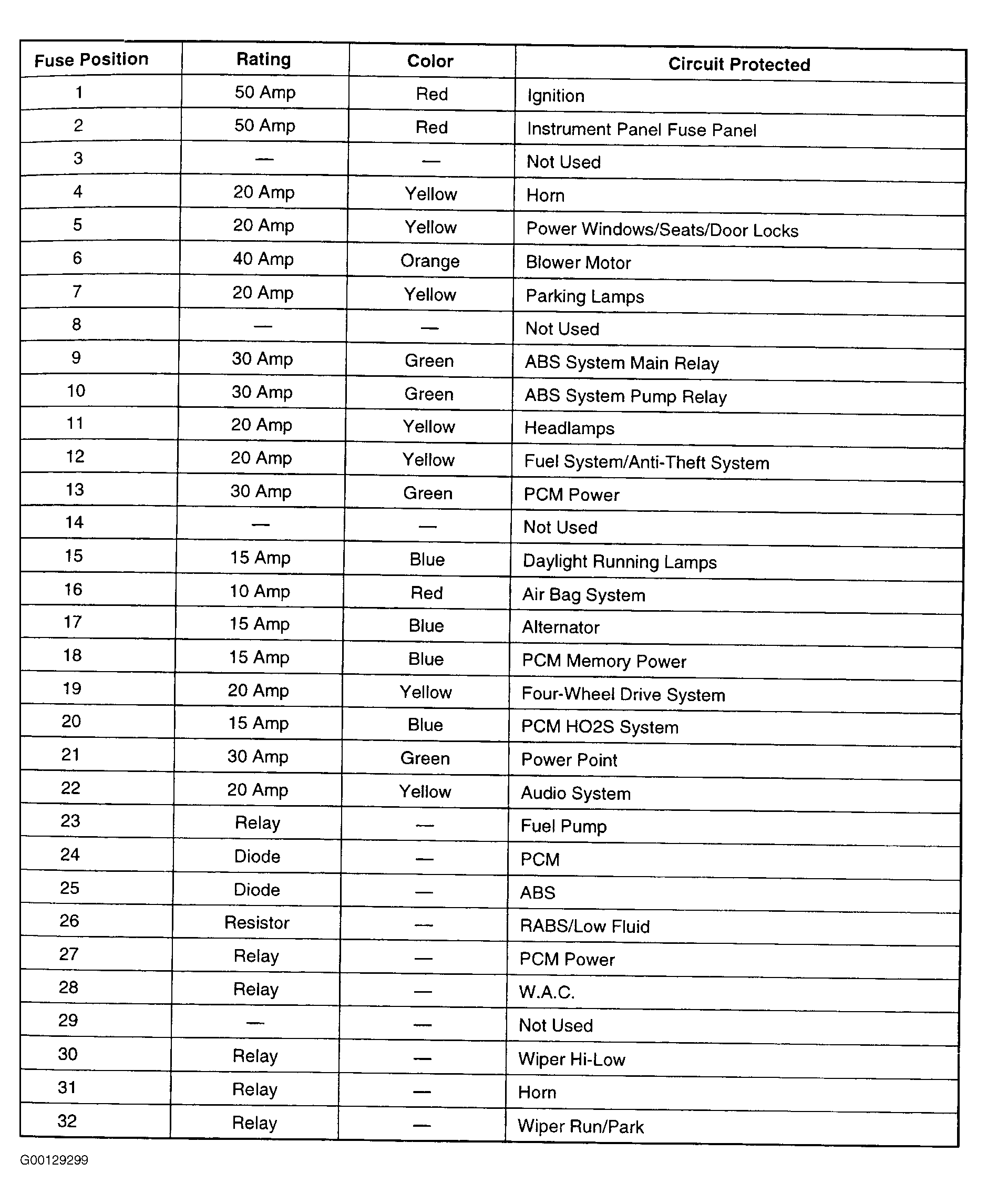

Fig 3: Main Fuse Block Legend

Courtesy of MAZDA MOTORS CORP.
