KEYLESS ENTRY/SECURITY INSTALLATION PROCEDURES

TECHNICAL SERVICE BULLETIN

Reference Number(s): T003/96, Date of Issue: January 01, 2009

MAZDA:

1996 Protege

APPLICABLE MODELS

1996 Protege with a VIN of JM1BB14**T0328873 and lower.

DESCRIPTION

The wiring harness for the power door lock relay has changed for the 1996 Protege. This change affects the installation procedures (Steps 17 and 18) supplied with the Keyless Entry / Security system for 1996 Protege models.

USE THIS INFORMATION

ONLY when installing the Keyless Entry/Security system on 1996 Protege models.
To perform Step 17 and Step 18 (Door Lock Connection) instead of the existing steps (17 and 18 only).
If a customer complains of door lock functions after a kit was installed (i.e. prior to this Service Bulletin).

CAUTION: An intermediate 8-pin connector was incorporated on early production 1996 Protege Models. This connector is located approximately 6 inches from the door lock relay. This connector has been eliminated during the latest production. THIS CONNECTOR CHANGES THE INSTALLATION METHOD for the "Keyless Entry/Security" kit. Prior to kit performing the attached new steps (17 and 18), verify the level of the production unit.

PARTS INFORMATION

Part Number	Description
0000 88 SECR PR	Keyless Entry/Security

KEYLESS ENTRY/SECURITY INSTALLATION PROCEDURES (ADDENDUM - FOR VEHICLES WITHOUT THE 8-PIN INTERMEDIATE CONNECTOR)

NOTE: Use these instructions to replace Steps 17 and 18 ONLY

Locate the RED/BLUE wire in the 8-pin connector as shown below.

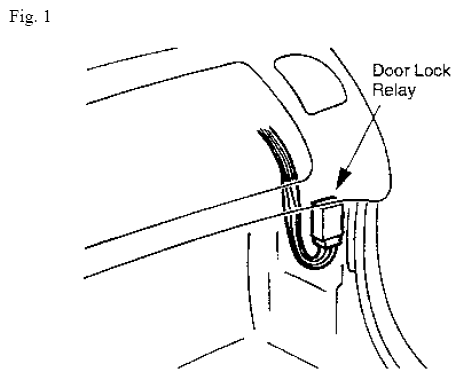

- Locate the green door lock relay at the passenger's side kick panel (just below dash).
  Refer to Figure 1

  NOTE: The passenger's side kick panel was removed in Step 15.
- Locate the RED/BLUE wire coming down from the 8-pin door lock relay connector.

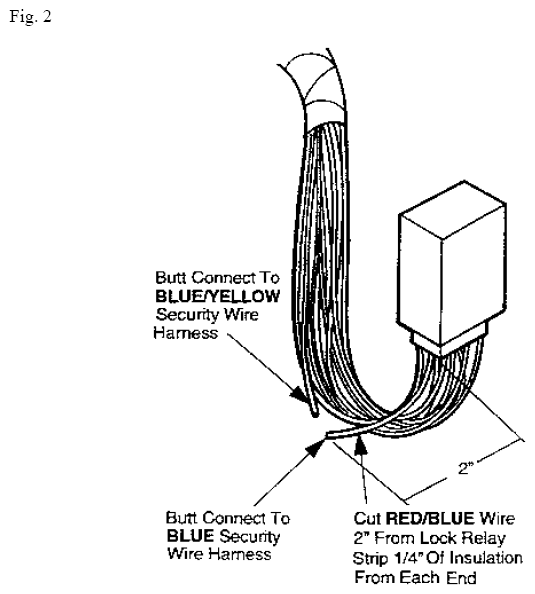

Connect the RED/BLUE wire of the 8-pin connector to the security harness as shown. Refer to Fig. 2
New Step 17.
- Cut the RED/BLUE wire 2" away from the door lock relay 8-pin connector. Refer to Fig. 2
- Strip 1/4" of insulation from each end on the cut wire. Refer to Fig. 2
New Step 18.
- Butt splice the BLUE security harness wire to the RED/BLUE wire leading to the door lock relay 8-pin connector.
- Butt splice the BLUE/YELLOW security harness wire to the RED/BLUE wire leading AWAY from the door lock relay 8-pin connector. Refer to Fig. 2
NOTE: The power door locks will not function correctly if this step is not performed as shown.

RETURN TO KIT INSTALLATION PROCEDURES

NOTE: The Two (2) stage unlocking function described in the operator's manual is no longer possible with this wiring change.

KEYLESS ENTRY/SECURITY INSTALLATION PROCEDURES (ADDENDUM - FOR VEHICLES WITH THE 8-PIN INTERMEDIATE CONNECTOR)

NOTE: Use these instructions to replace Step 17 and Step 18 ONLY

Locate the BLUE wire in the 8-pin connector as shown below.

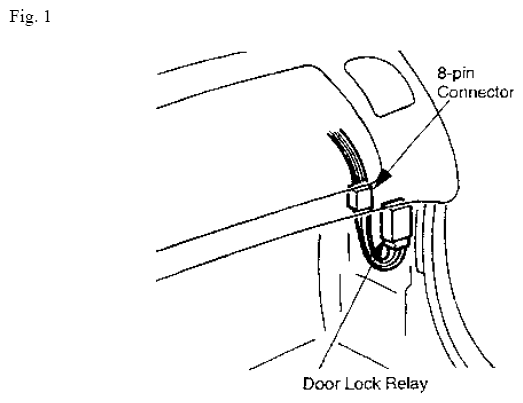

- Locate the green door lock relay at the passenger's side kick panel (just below dash). Refer to Fig. 1
  NOTE: The passengers side kick panel was removed in Step 15.
- Follow the RED/BLUE wire coming down from the door lock relay until the 8-pin connector is located (approximately 6" from the relay).
- A BLUE wire will be coming from the other end of the 8-pin connector as shown.

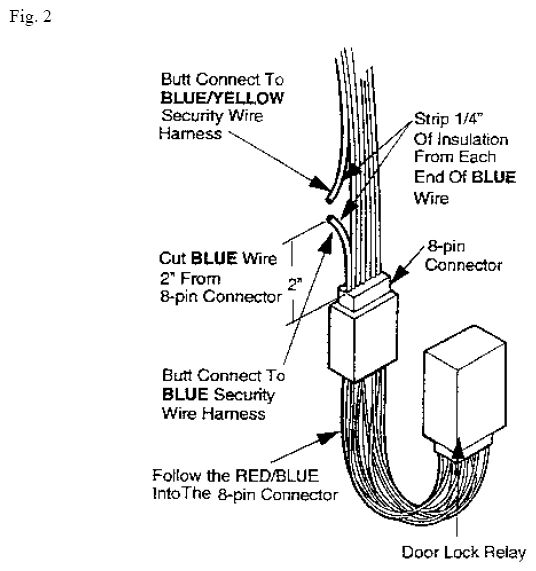

Connect the BLUE wire in the 8-pin connector with the security harness as shown. Refer to Fig. 2
New Step 17.
- Cut the solid BLUE wire 2" away from the Spin connector. Refer to Fig. 2
- Strip 1/4" of insulation from each end on the cut wire. Refer to Fig. 2
New Step 18.
- Butt splice the BLUE security harness wire to the BLUE wire leading to the 8-pin connector.
- Butt splice the BLUE/YELLOW security harness wire to the BLUE wire leading AWAY from the 8-pin connector. Refer to Fig. 2
NOTE: The power door locks will not function correctly if this step is not performed as shown.
