Fuse Panel & Fuse Block Identification: Notes

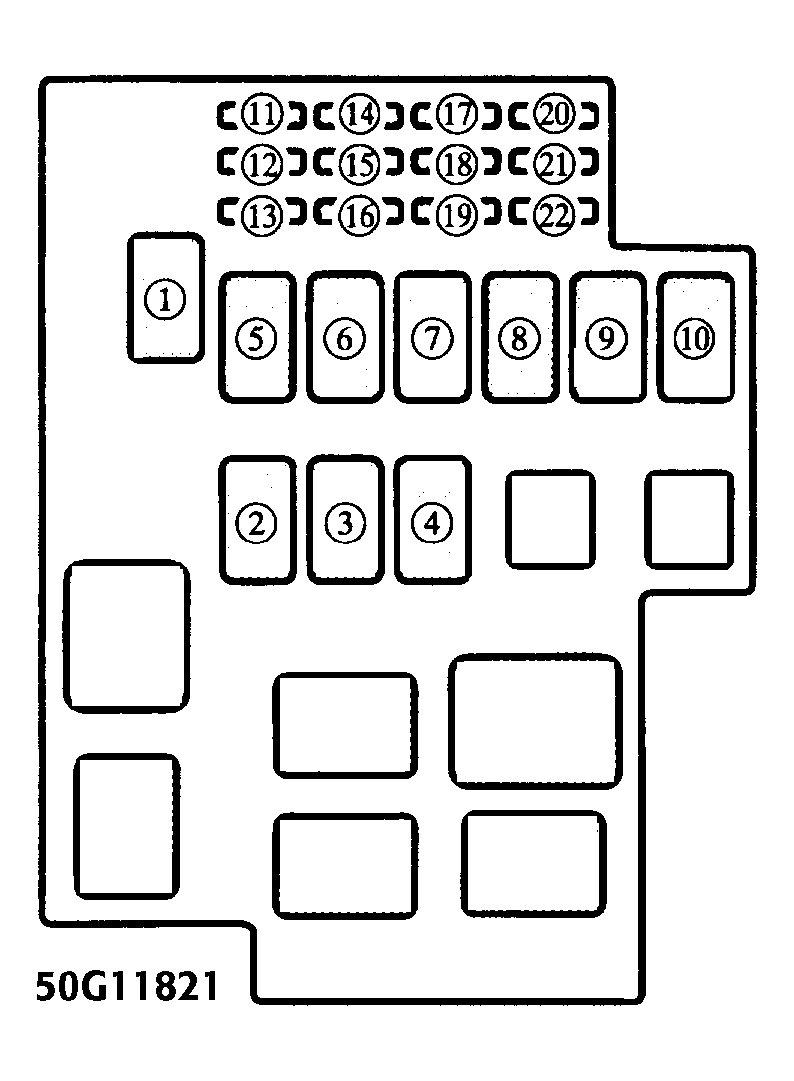

Fig 1: Underhood Fuse Panel Identification
G50G11821Courtesy of MAZDA MOTOR OF AMERICA, INC.
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

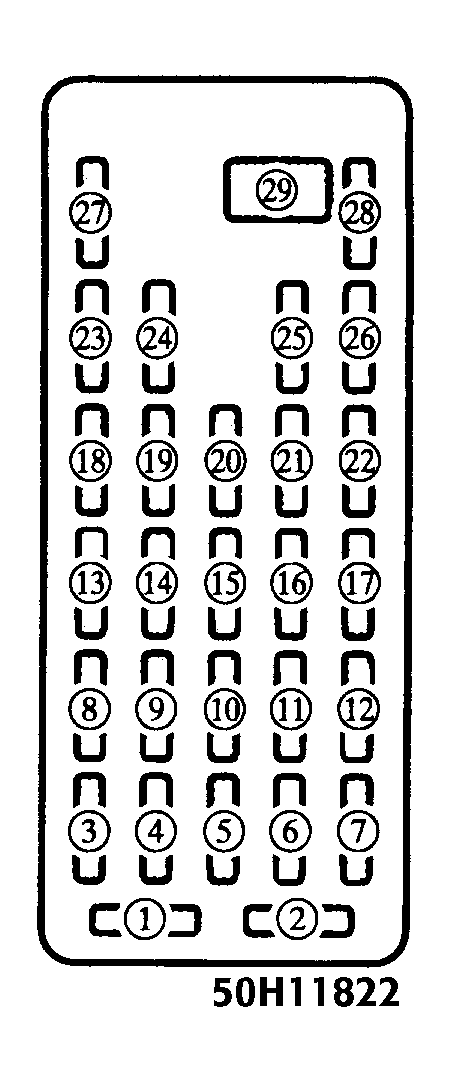

Fig 1: Interior Fuse Block Identification
G50H11822Courtesy of MAZDA MOTOR OF AMERICA, INC.
