Section 4 (Engine Controls - Tests W/Codes - 2.3L)
>>
Diagnostic Trouble Code Charts
>>
DTC P1628: ECM-Abs/TCS Control Unit Line ABV Comm. Error
DTC P1628: ECM-Abs/TCS Control Unit Line ABV Comm. Error
WARNING:
This page is about a different variant/trim than selected.

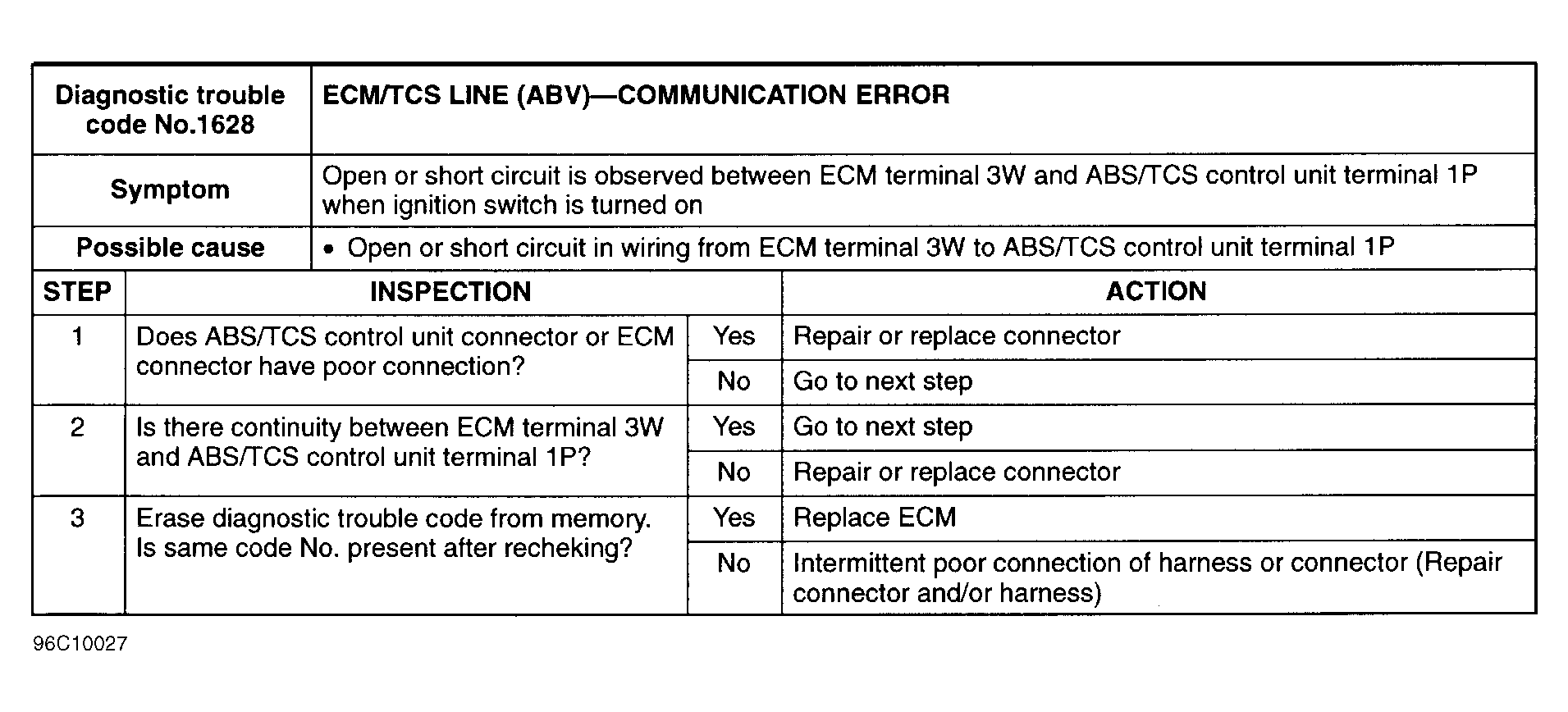

Fig 1: DTC P1628 ECM-ABS/TCS Control Unit Line Abv Comm. Error
Courtesy of MAZDA MOTORS CORP.
