DTC P0703: Brake Switch Input Malfunction

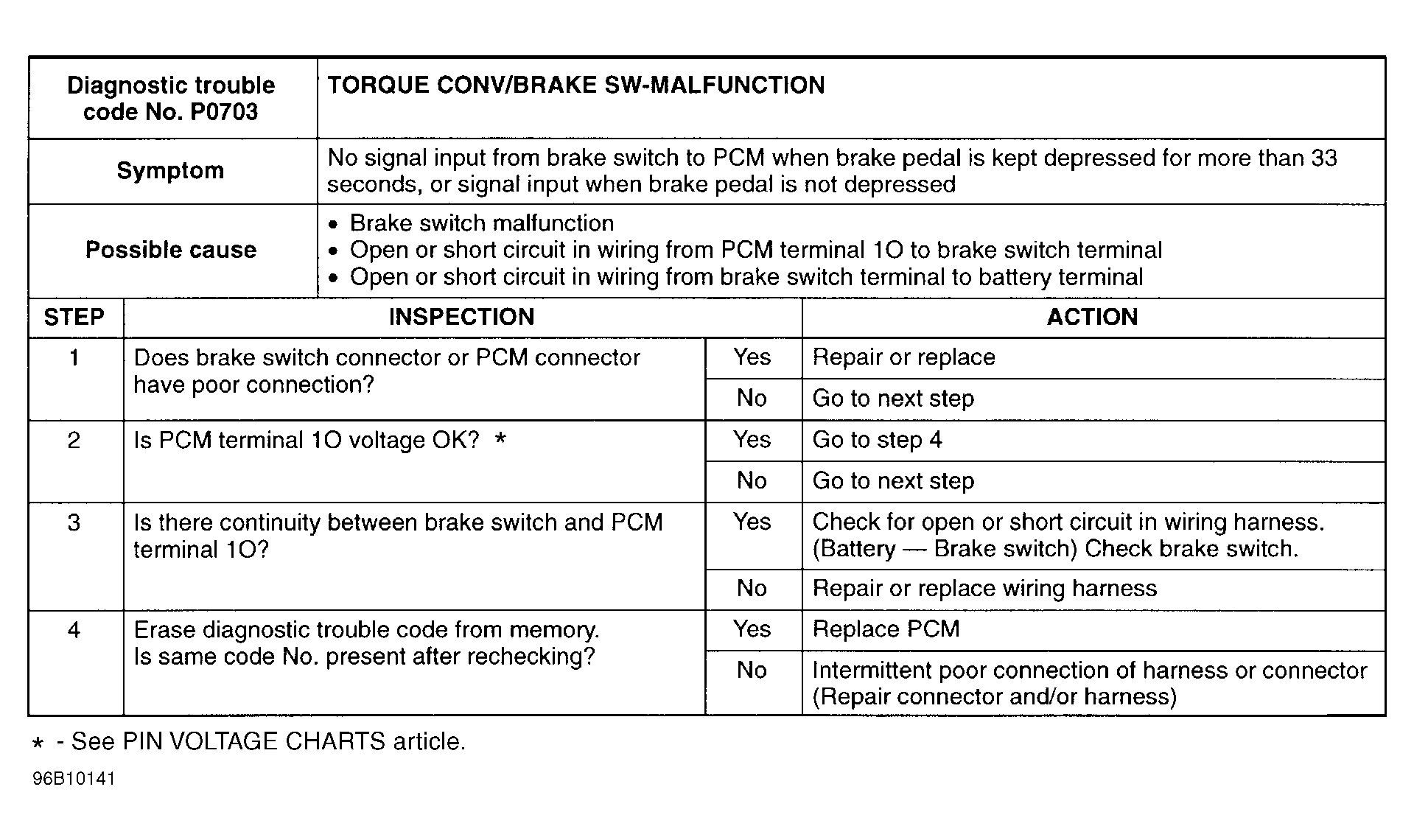

Fig 1: DTC P0703 Brake Switch Input Malfunction

G96B10141

Courtesy of MAZDA MOTORS CORP.
