Transaxle Case: Reassembly

To reassemble, reverse disassembly procedure. Smaller diameter of diaphragm spring, located behind bearing race, should face toward inside of transaxle case.

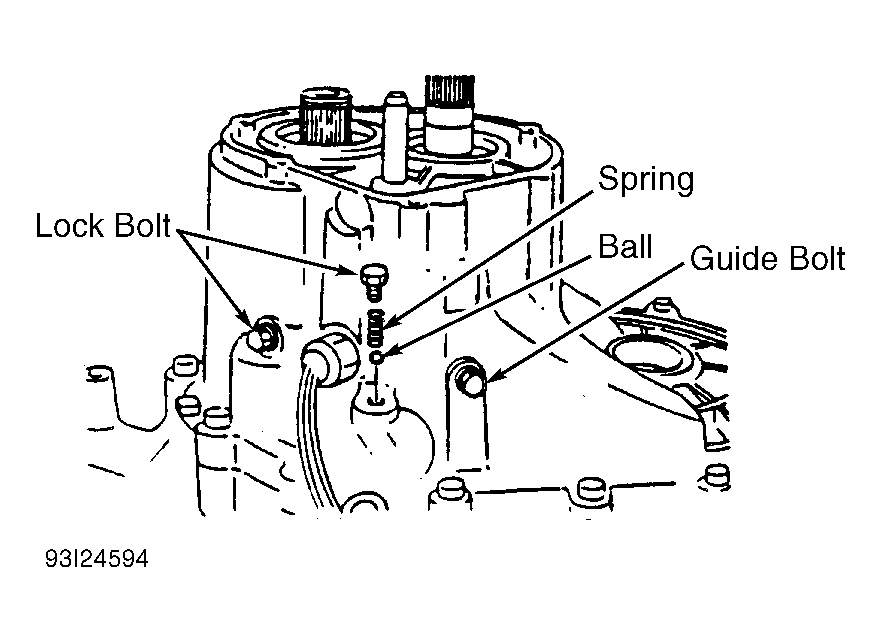

Fig 1: Removing Guide, Lock Bolts, Ball & Spring

Courtesy of MAZDA MOTORS CORP.
