2-4 Brake Band

  1. Remove drain plug and drain transaxle. Remove oil pan and gasket. Loosen lock nut and tighten piston stem to 106-130 INCH lbs. (12-15 N.m). See Fig 1 . Loosen piston stem1 1/2 turns.
  2. Hold piston stem and tighten lock nut to 18-29 ft. lbs. (24-39 N.m). Install oil pan using NEW gasket. Tighten oil pan bolts to specification. See TORQUE SPECIFICATIONS  . Add fluid and check level. DO NOT overfill.

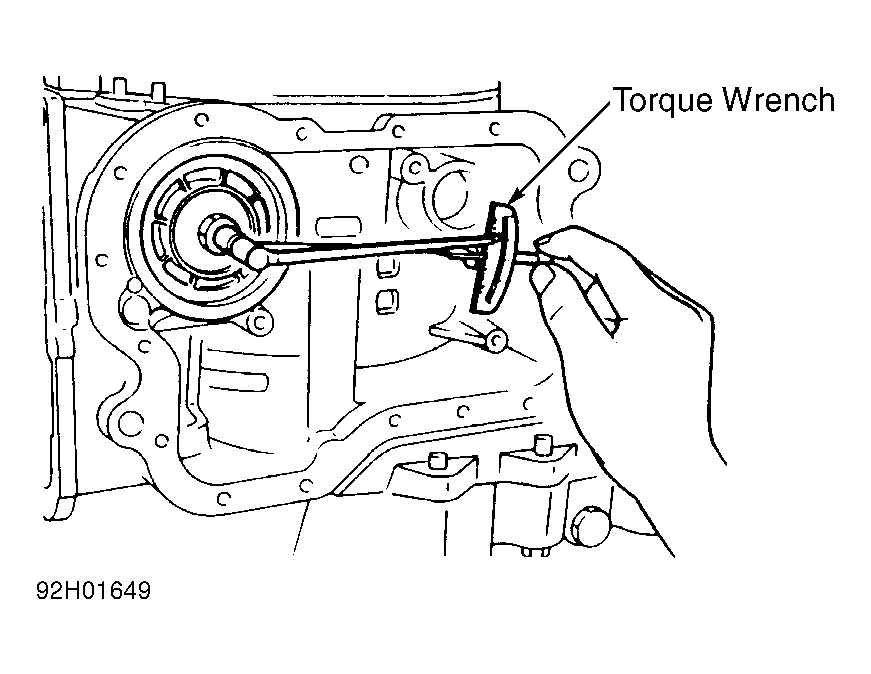

Fig 1: Adjusting 2-4 Brake Band
G92H01649Courtesy of MAZDA MOTORS CORP.
