Section 249 (Generators & Regulators): Overhaul
WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
During disassembly, melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

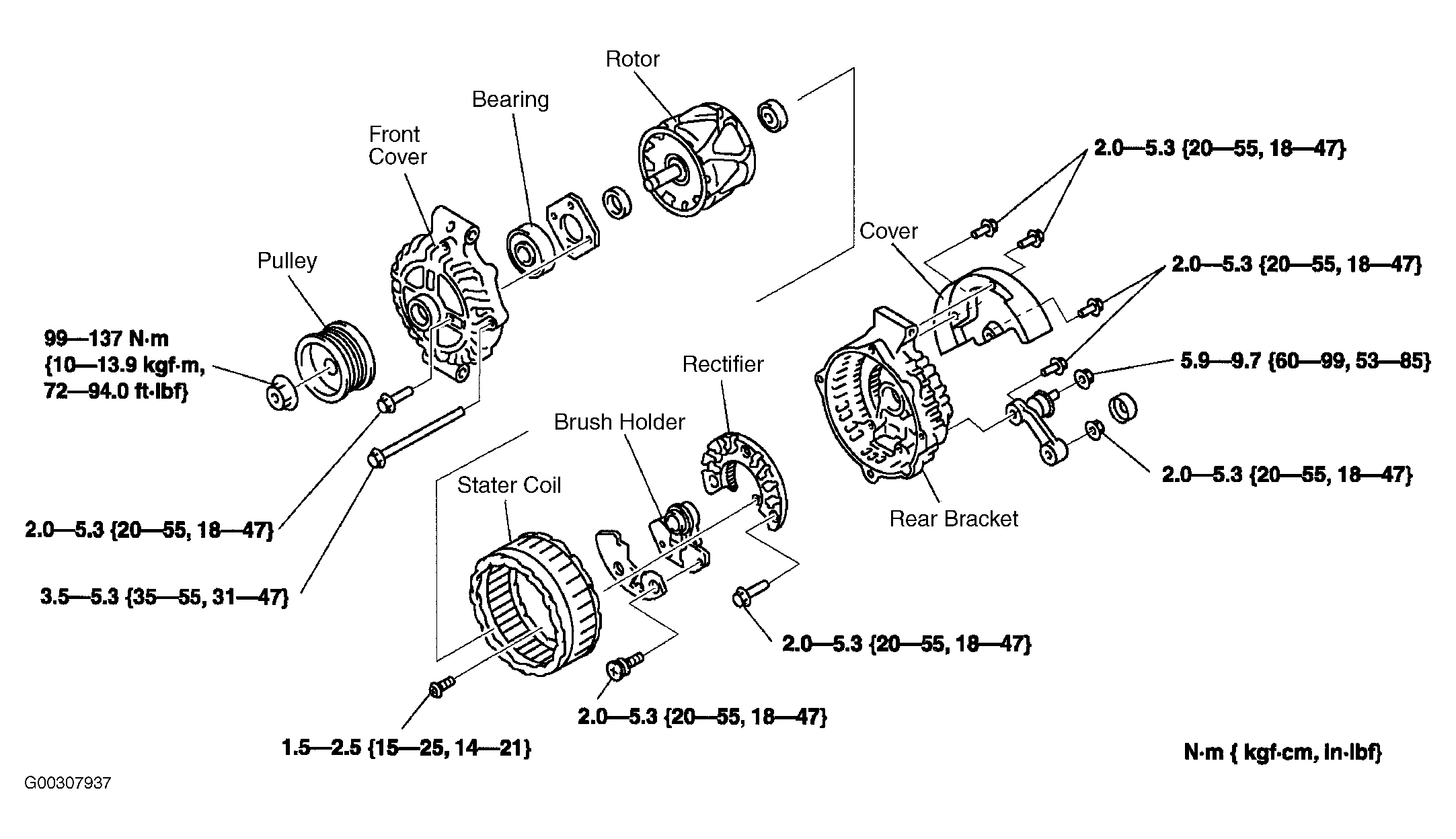

Overhaul procedure is not available from manufacturer. To aid in overhaul, refer to illustration. See Fig 1.
