DTC P1506: IAC System OVERSPEED Error

Fig 1: DTC P1506 (1 OF 2)

G96I10932

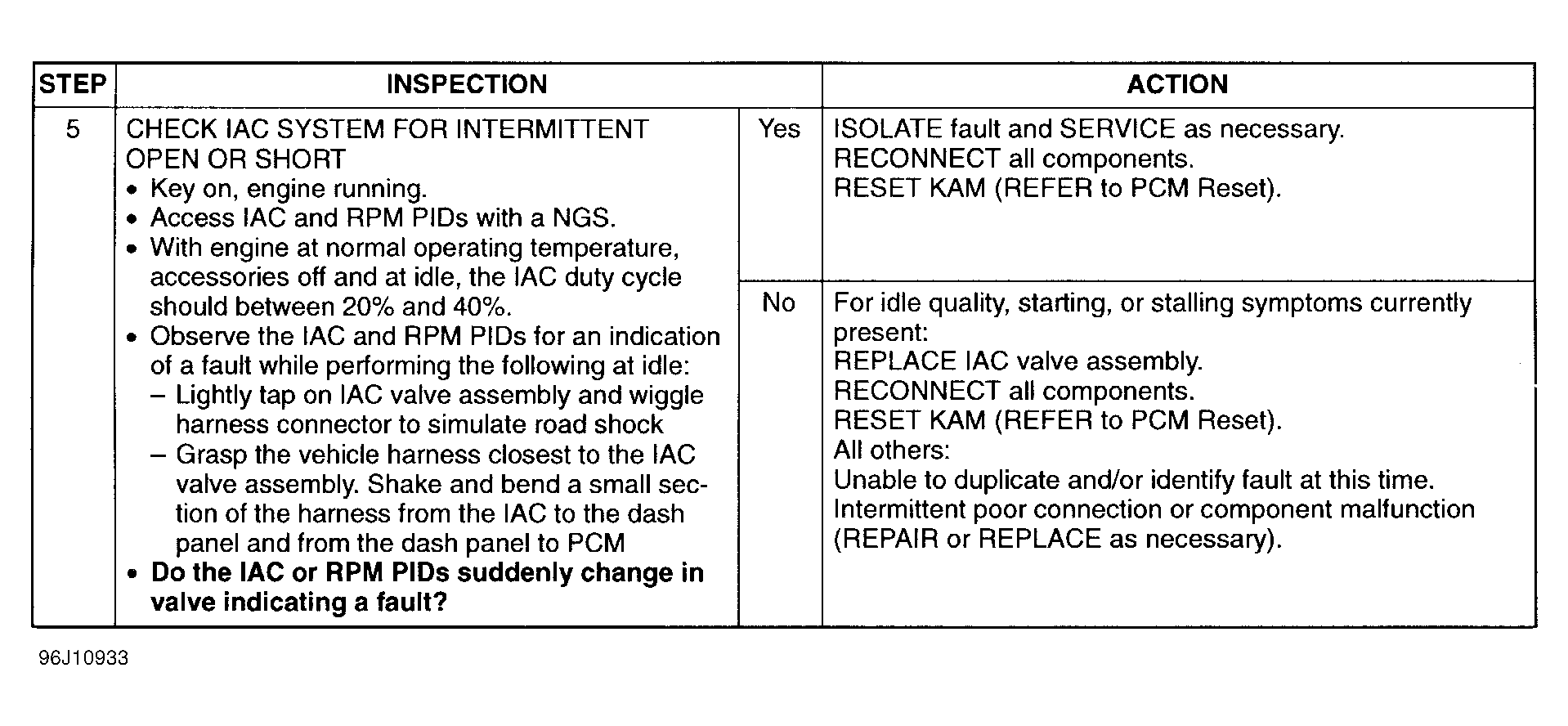

Fig 2: DTC P1506 (2 OF 2)

G96J10933
