DTC P0134: (Oxygen Sensor Circuit No Activity Detected)
DTC P0134: (Oxygen Sensor Circuit No Activity Detected)

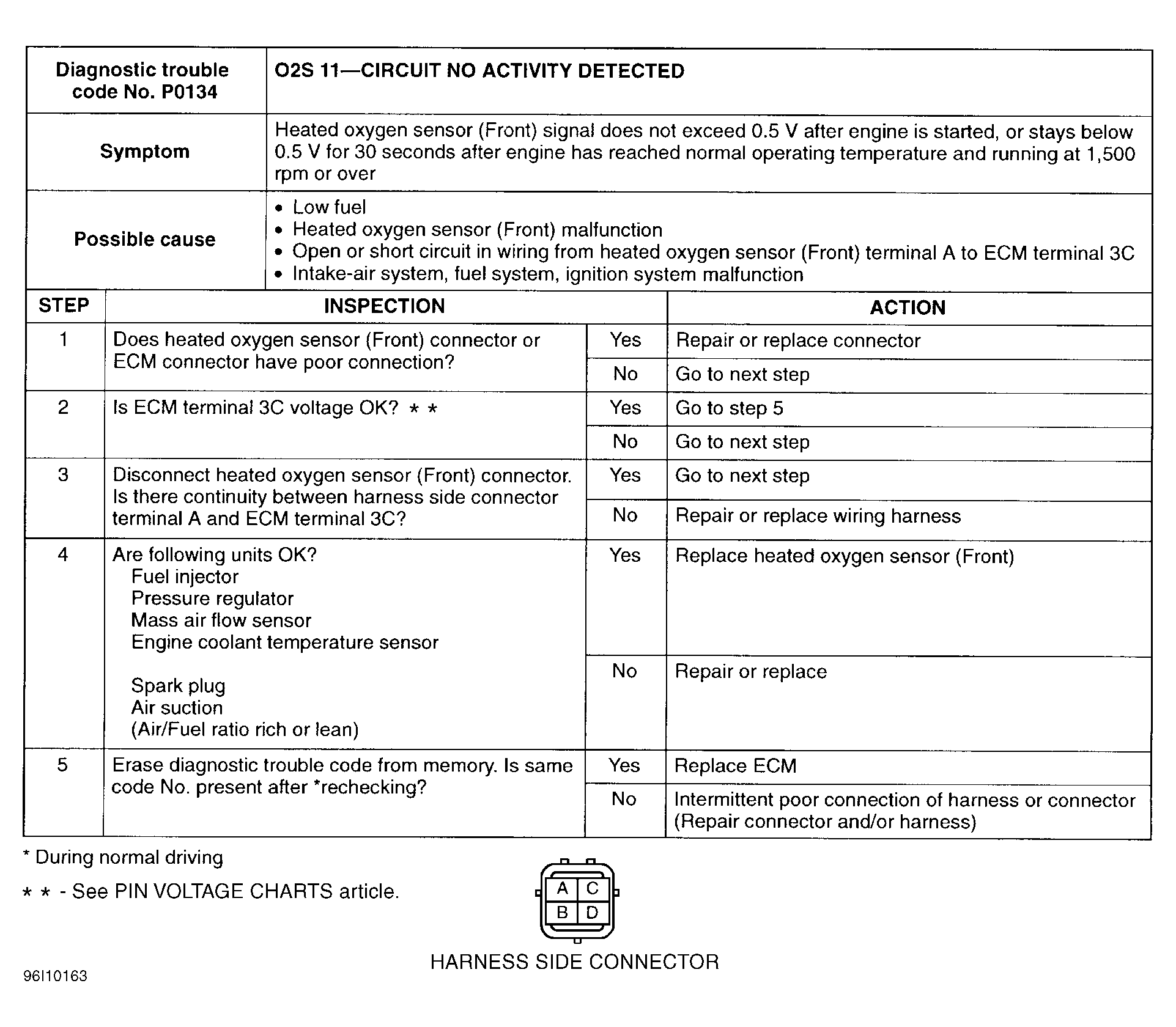

Fig 1: DTC P0134: (Oxygen Sensor Circuit No Activity Detected)
