Mazda
>>
1996
>>
MX-5 Miata Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Controls - Pin Voltage Charts
>>
Pin Voltage Charts
Pin Voltage Charts

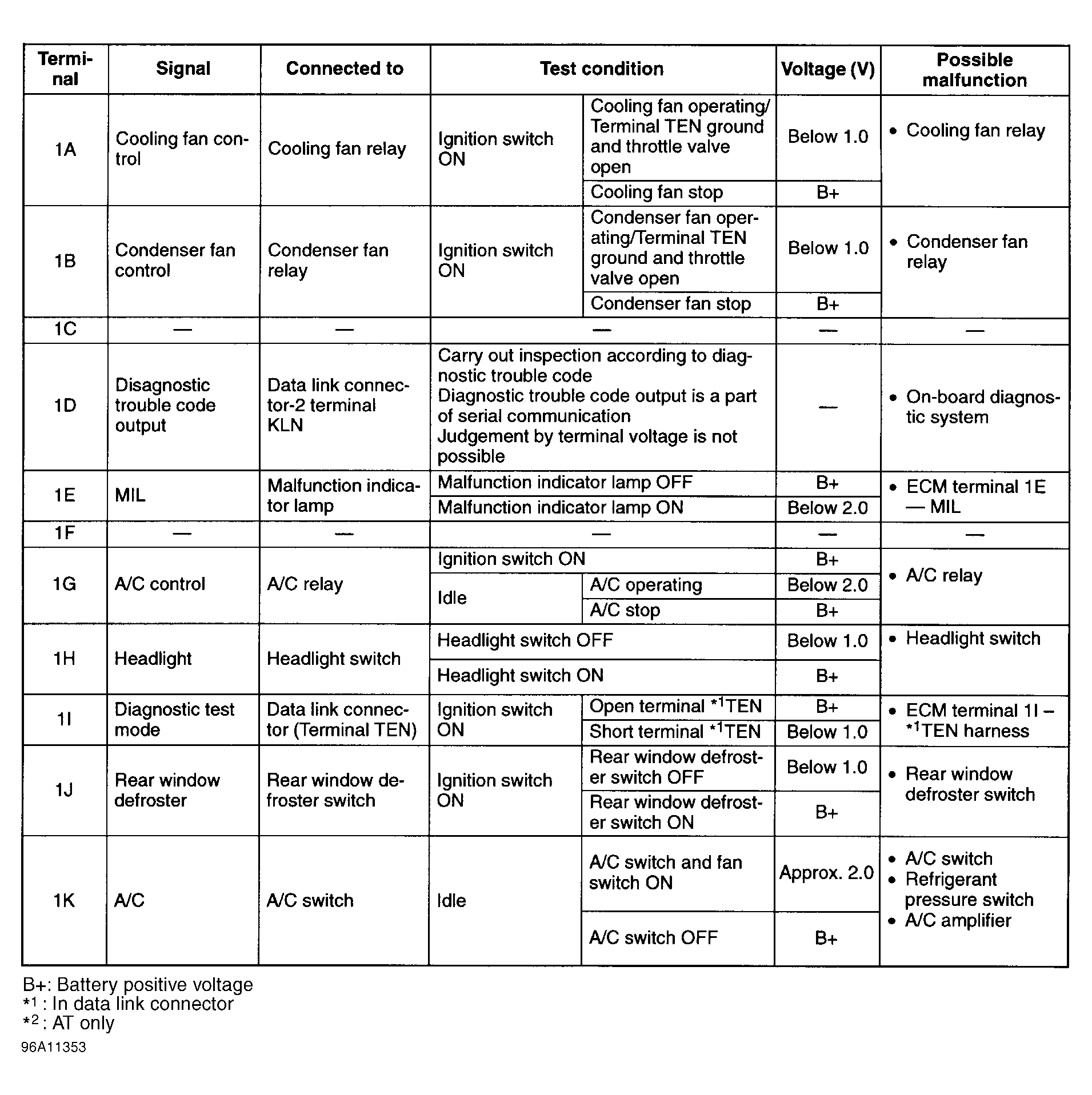

Fig 1: ECM Pin Voltage Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

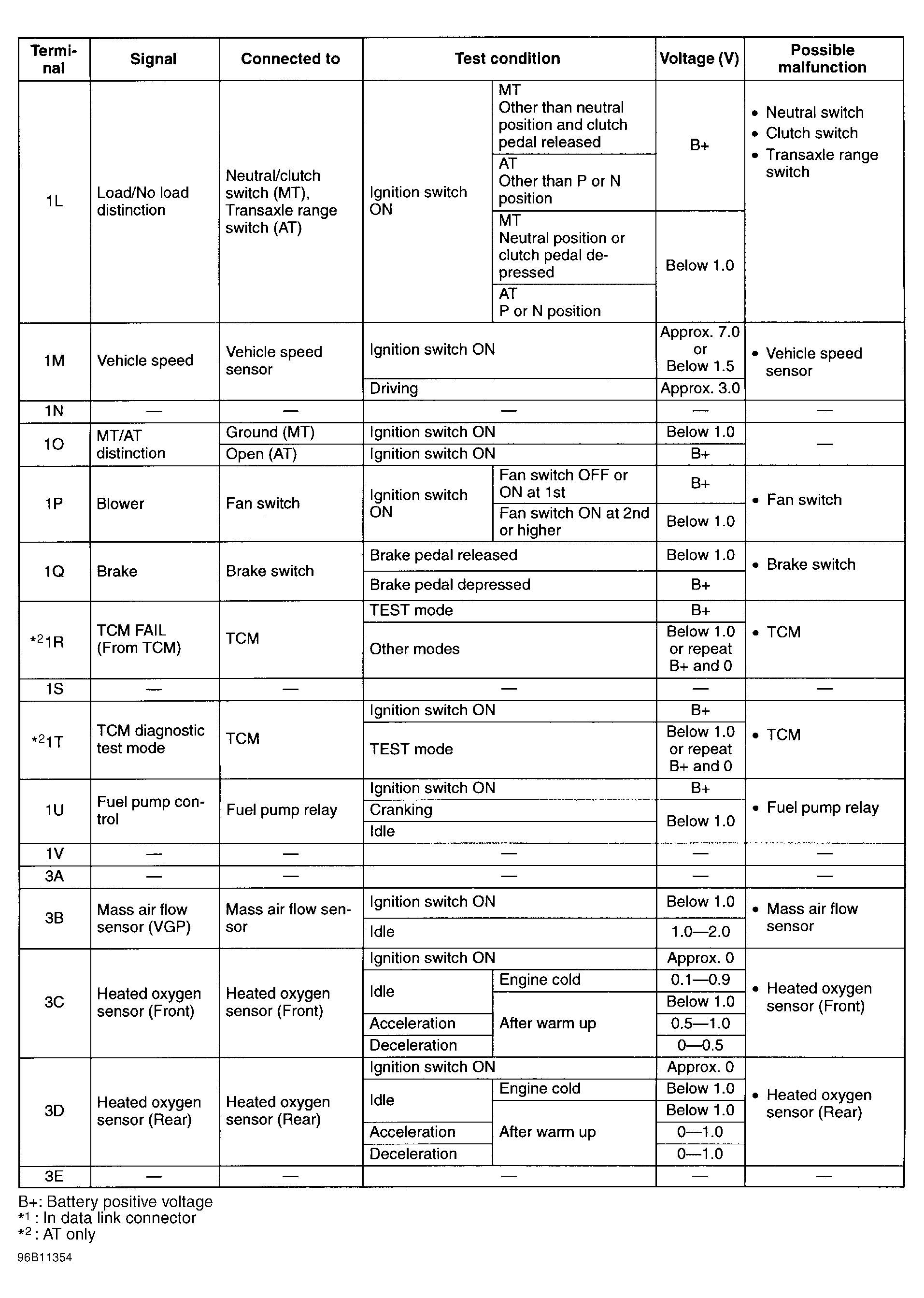

Fig 2: ECM Pin Voltage Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

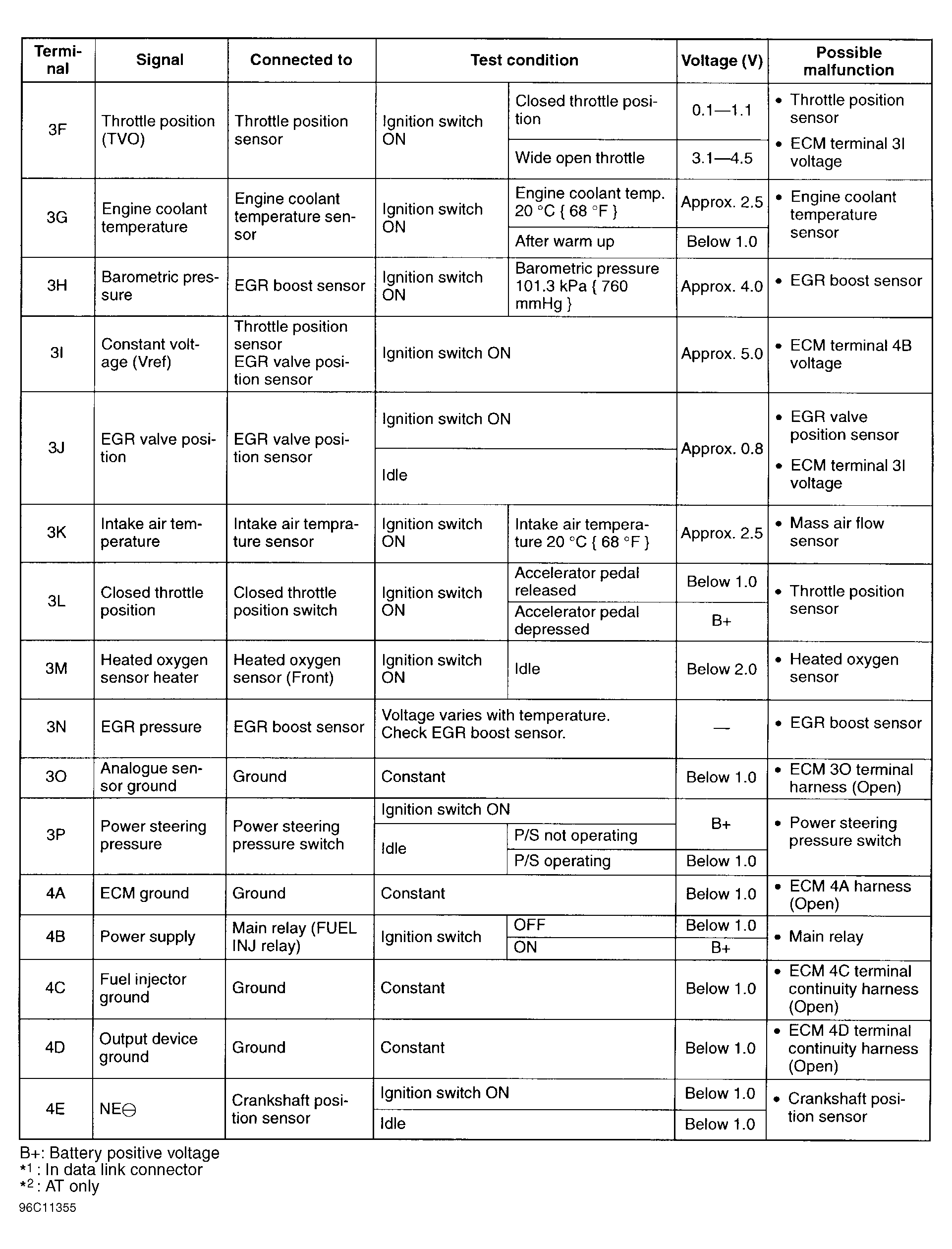

Fig 3: ECM Pin Voltage Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

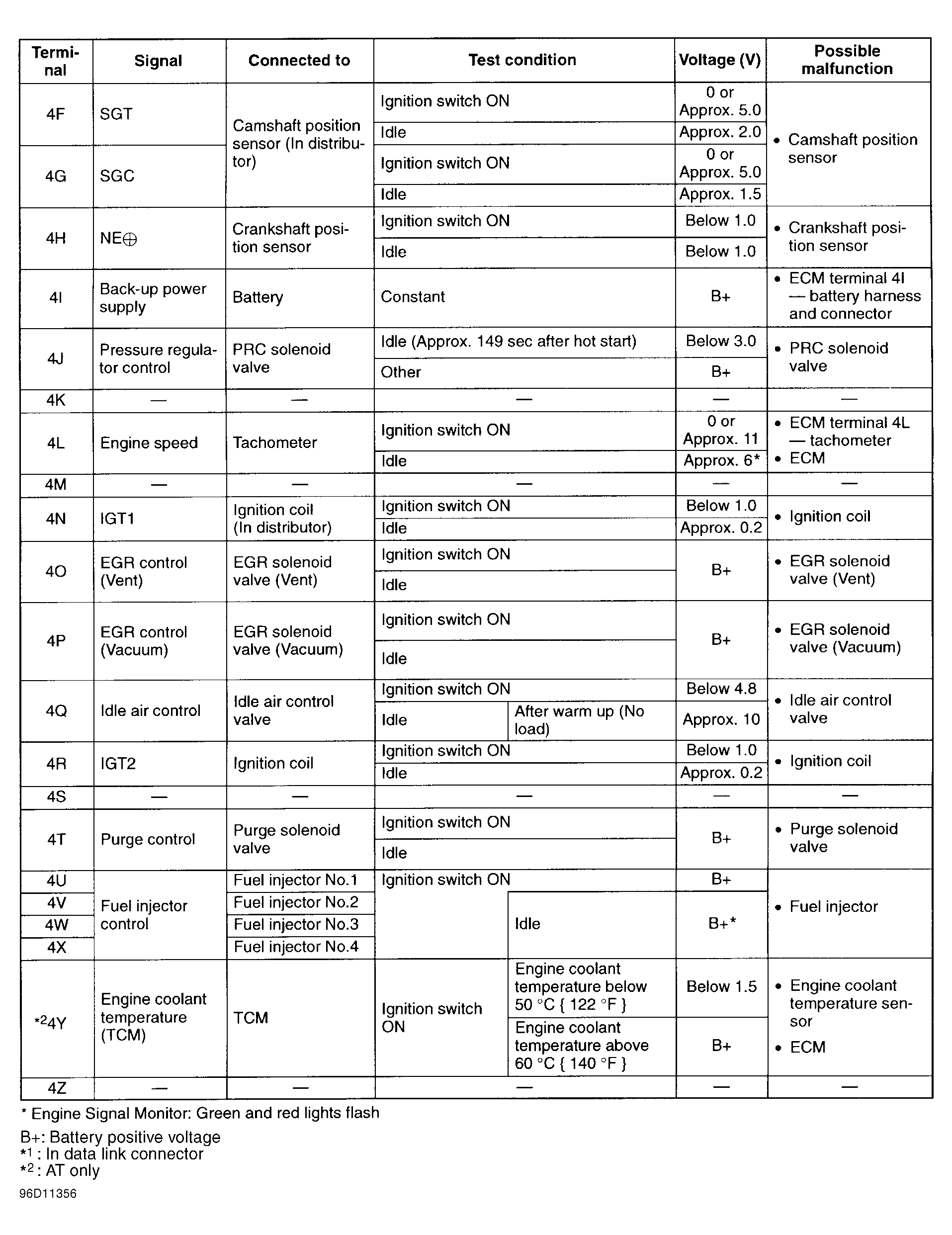

Fig 4: ECM Pin Voltage Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 5: ECM Connector Terminal Identification
Courtesy of MAZDA MOTORS CORP.
