Retractor Relay

Remove retractor relay. Check continuity between specified terminal of retractor relay connector. See RETRACTOR RELAY TEST . SeeFig 1 . If continuity is not as specified, replace retractor relay.

RETRACTOR RELAY TEST

Condition

Continuity Between Terminals

Relay Not Energized

"A" & "H" and "B" & "D"

Relay Energized ⁽¹⁾

"A" & "G"

⁽¹⁾	Apply battery voltage to terminal "B" and ground terminal "D".

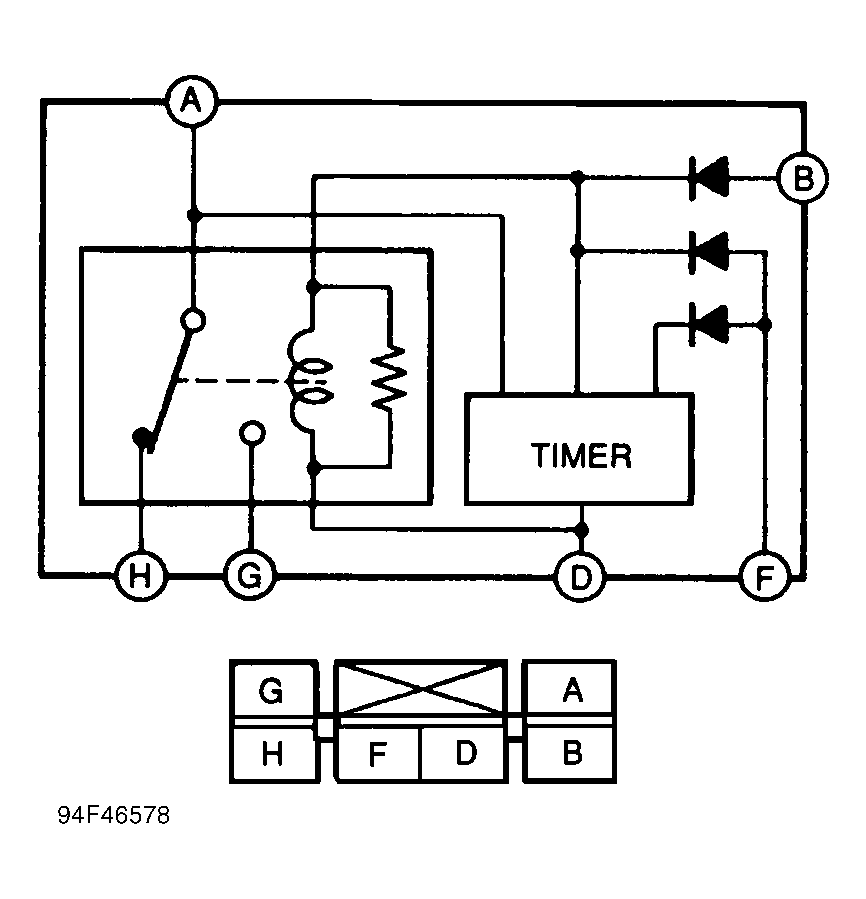

Fig 1: Identifying Retractor Relay Terminals/Internal Circuit

Courtesy of MAZDA MOTORS CORP.
