Retractor Motor

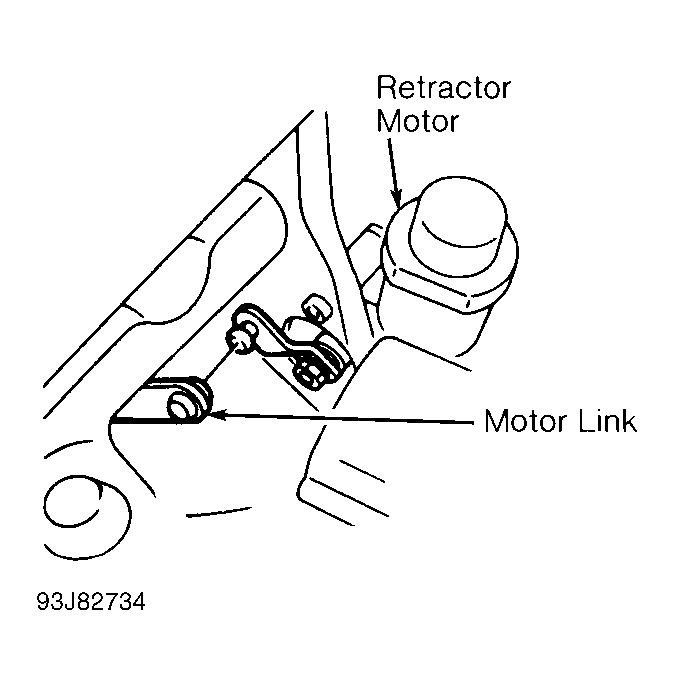

  1. Disconnect retractor motor link. SeeFigure . Disconnect retractor motor 6-pin connector. Apply battery voltage to terminal "F" and ground terminal "A" of retractor motor connector. SeeFig 1 . Leave jumpers connected across terminals as specified.
  2. To raise headlight, use second set of jumper wires to apply battery voltage to terminal "C" and ground terminal "A" of retractor motor connector. To lower headlight, move second set of jumper wires to apply battery voltage to terminal "D" and ground terminal "A" of retractor motor connector. If retractor motor does not operate as specified, replace retractor motor.

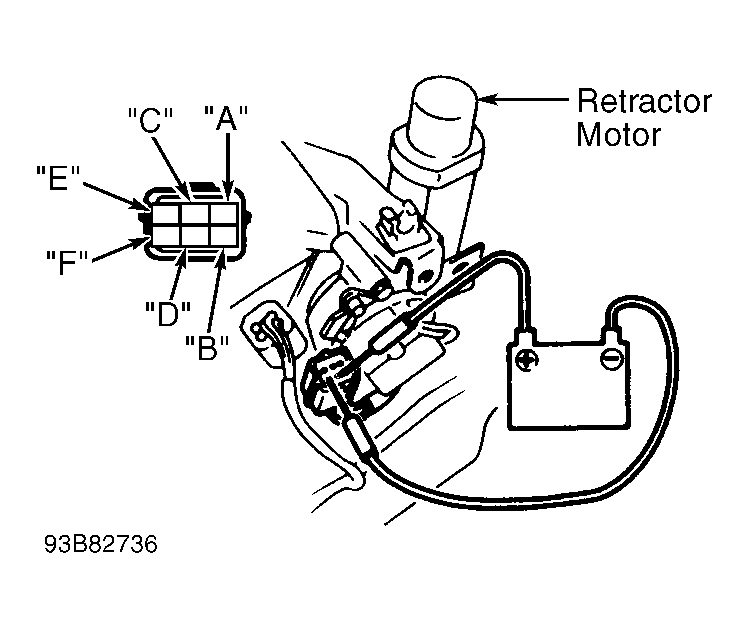

Fig 1: Identifying Retractor Motor Connector Terminals
G93B82736Courtesy of MAZDA MOTORS CORP.
