Headlight Switch

Remove knee protector from under steering column. Disconnect combination switch connector. Check continuity between specified terminals of combination switch connector. SeeFig 1 . If continuity is not as specified, replace combination switch.

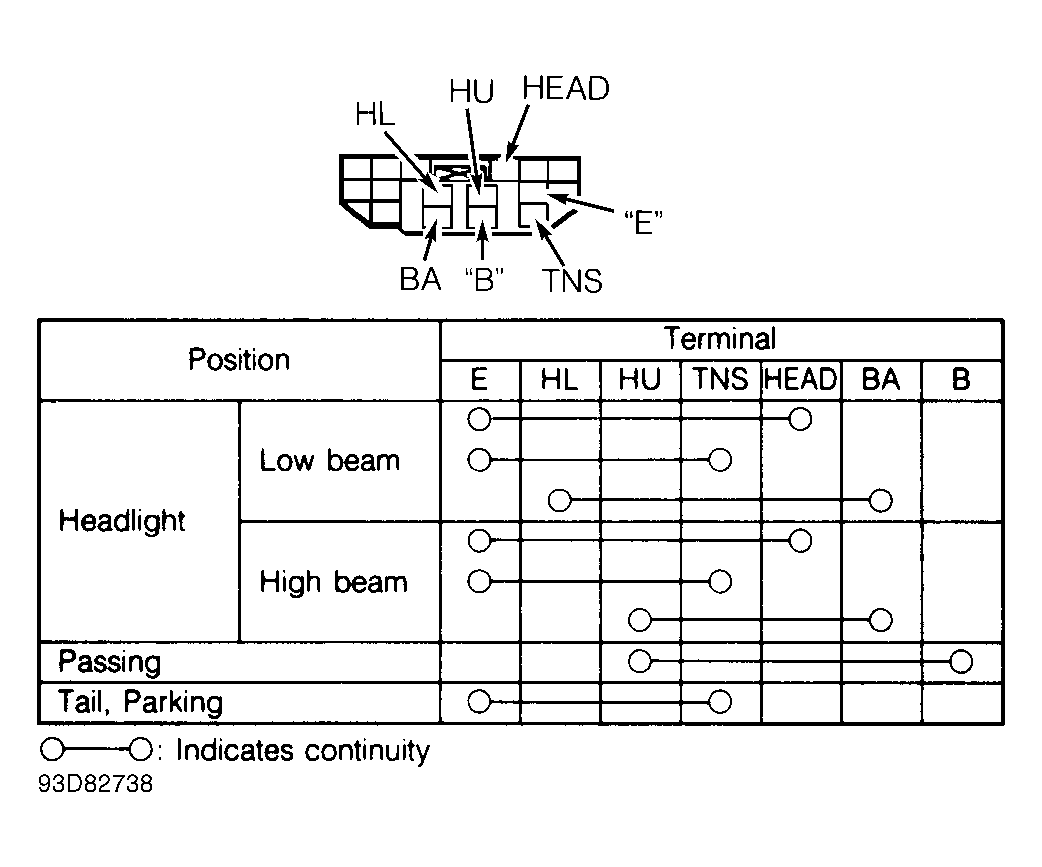

Fig 1: Identifying Combination Switch Connector Terminals
G93D82738Courtesy of MAZDA MOTORS CORP.
